• Model NO.：HTD8M
• Pitch：8mm
• Color：White
• Cord：Steel, Kevlar
• Max Width：150mm
• Standard Length：100m
• Materials：TPU
• Transport Package：Export Standard
• Specification：HTD8M
• Trademark：UNI Belting
• Origin：Shanghai China
• HS Code：3926901000
• Production Capacity：20000000 Meters

Basic Info.

Model NO. HTD8M Pitch 8mm Color White Cord Steel, Kevlar Max Width 150mm Standard Length 100m Materials TPU Transport Package Export Standard Specification HTD8M Trademark UNI Belting Origin Shanghai China HS Code 3926901000 Production Capacity 20000000 Meters

Product Description

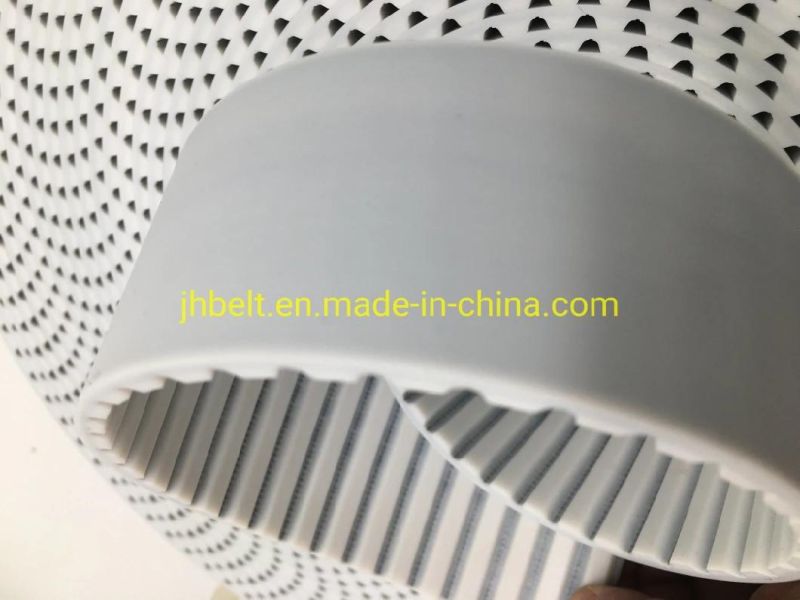

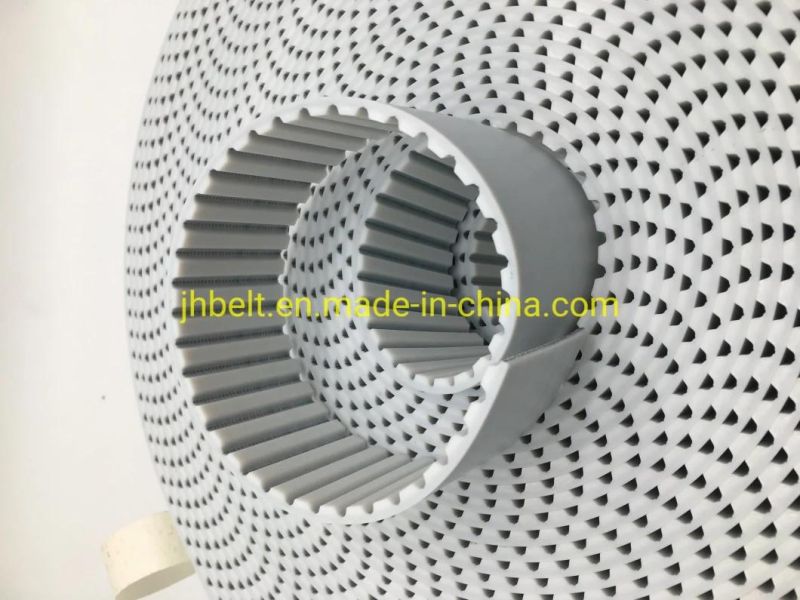

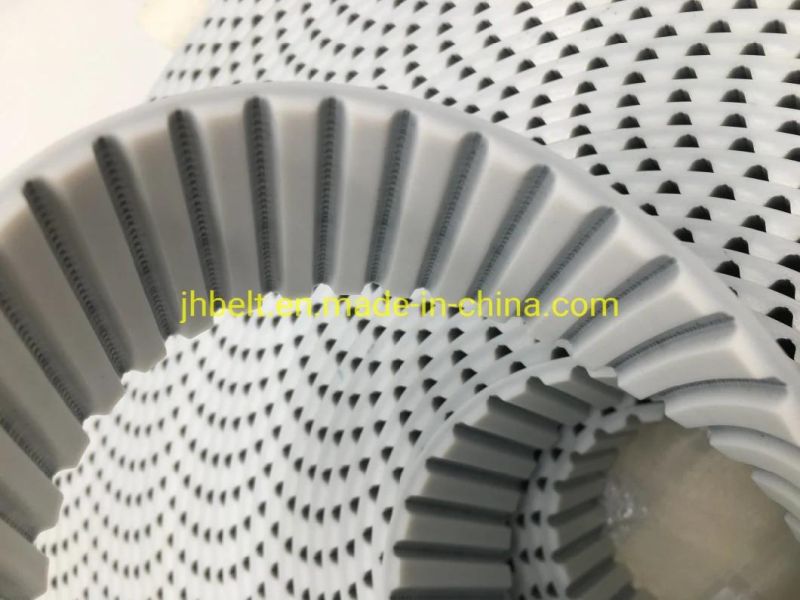

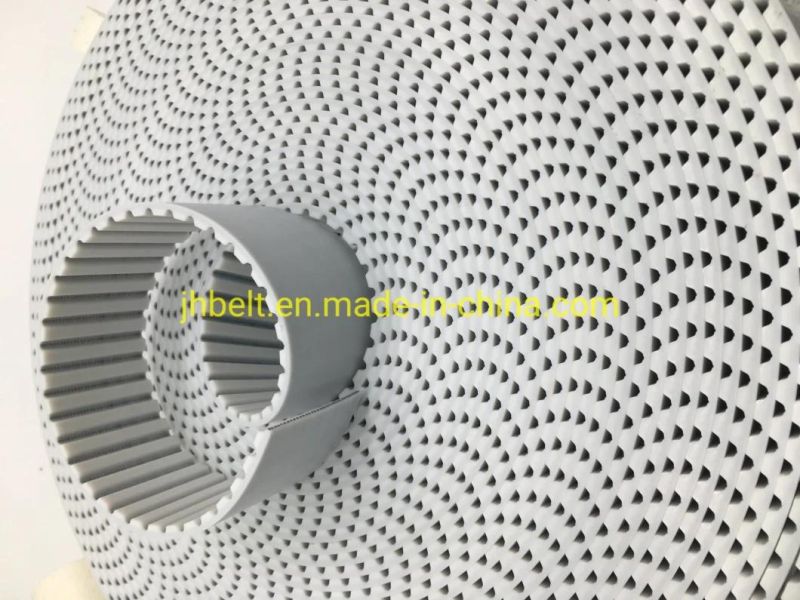

PU timing belt HTD8M



PU open belts are manufactured in thermoplastic polyurethane. It has strong anti-wear. The various of reinforce cord ensure good running capability in the driving. It has small production tolerance.

PU open belts has the reliable transmission and the fine size stability. A layer of nylon can be added in the tooth face and / or back in order to guarantee the running specialty in the special applications, also can be added a thick layer of polyurethane in the back of the belt to resist corrosion or high loading.

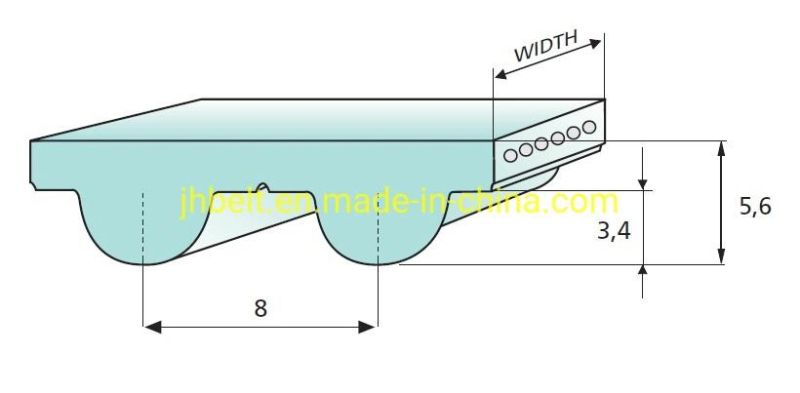

Model: HTD8M

Pitch:8mm
Color:White, Black
Cord: Steel, Kevlar
Max production width:150mm
Standard Length:100m




Available Options

• NFT (add green fabrics on teeth)
• NFB (add green fabrics on surface)
• NFT+NFB (both teeth and surface add green fabrics)
• Covering/Coating

Mechanical Features

• Fine size stability
• Little pre-tension
• Low noise
• Highly anti-wear abilbity
• Non-maintenance
• Good elasticity
• The max linear velocity can reaches 80m/second
• High precision linear positioning



Typical applications:

• Food processing
• Conveyors
• Automatic sliding doors and garage opening system
• Automated handling devices
• Linear drivers
• Positioning system
• Glass Industry
• Textile Industry
• Wood Machine Industry
• Stone and marble Industry
• Paper and Printing
• Transport systems
• Cooling lines
• Chemist and pharmaceutical industry
• Packaging lines

We are a leading manufacturer of innovative thermoplastic polyurethane power transmission. All polyurethane belts are made out of
abrasion-resistant polyurethane that provides thermoplastic flexibility, and long-lasting, energy efficient belt system solutions
for even the most demanding industries and applications.

Uni belting has always been on the edge of innovation, making it a global leader in high-end, high-precision and high quality
products, while at the same time ensuring a smooth operation on the machines.
