IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip
Qingdao Haochen Packing Co., Ltd.- Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power：4.8W
- Emitting Color：Changeable
- Voltage：12V
- IP Rating：IP68
- Color：Green
Base Info
- Model NO.：R9COGX10A
- Wavelength：520-528
- Luminous Flux：175
- Beam Angle：120
- Transport Package：DHL
- Specification：37*34*34cm
- Origin：Shenzhen
- HS Code：9405409000
- Production Capacity：5000000
Description

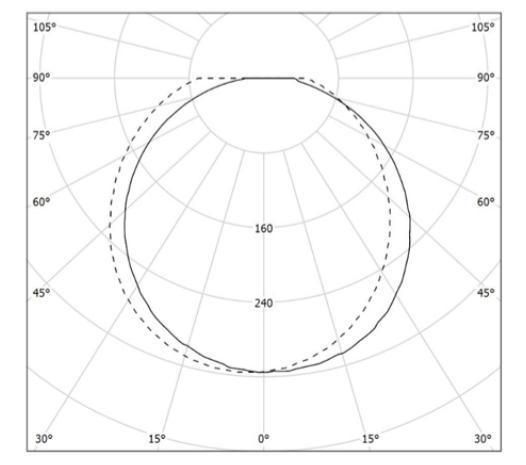

Light distribution curve:

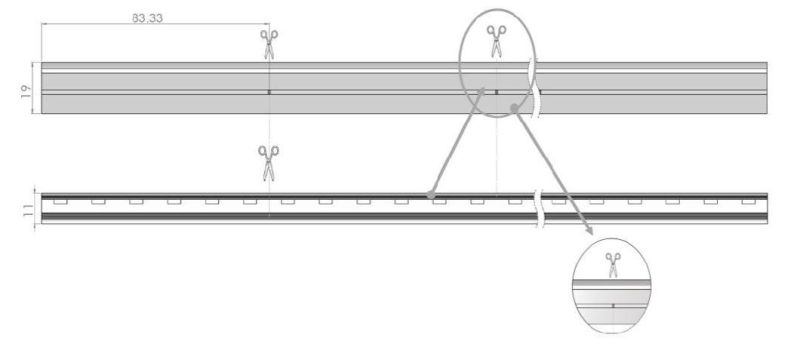

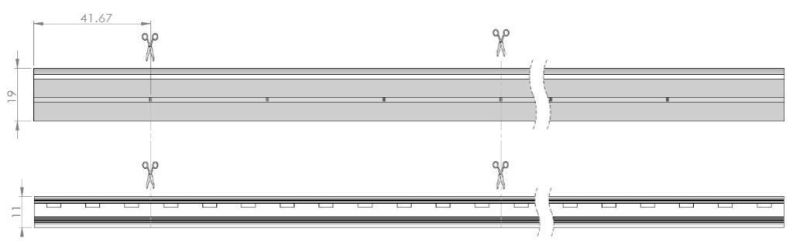

size:
RC72AA10Q
RC72AA10R

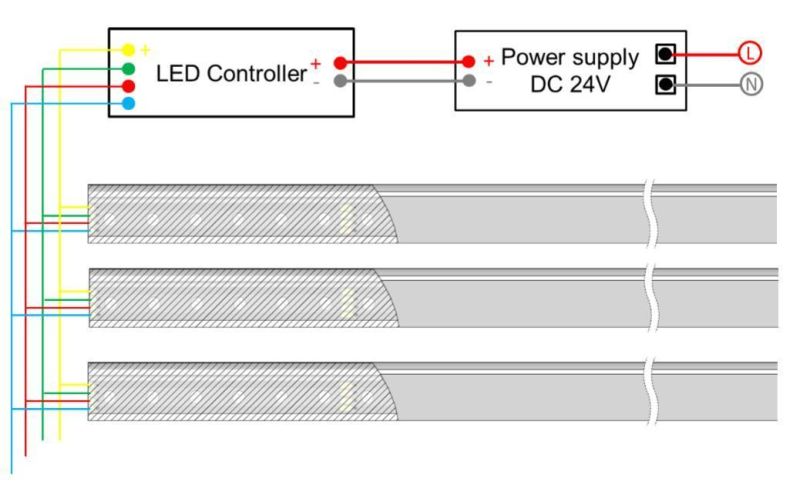

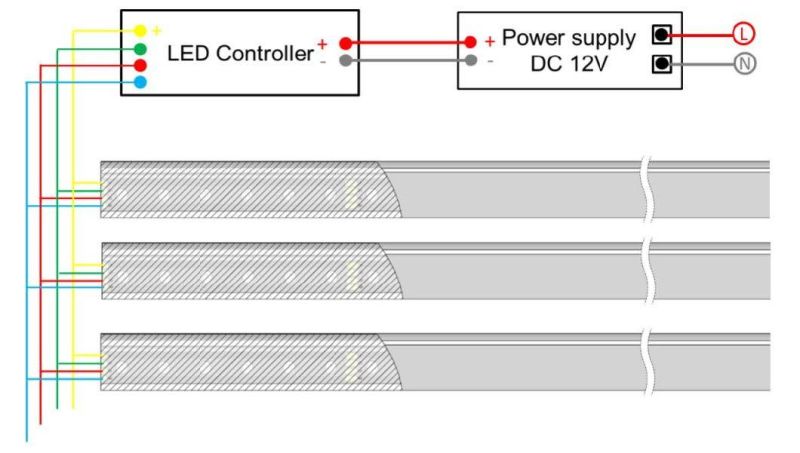

Wiring mode:RC72AA10Q
RC72AA10R

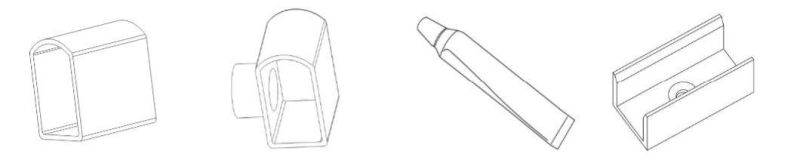

Enclosure
Use environment:
matters needing attention:
-The maximum current, load power and line loss of the system shall be considered for the external wiring diameter
- Neon lamp product surface and components can not bear external mechanical force to avoid damaging the product itself
- In order to avoid external force acting on the product connecting line, the product must be firmly fixed on the installation surface
- The installation of neon lights and power supply must refer to relevant electrical safety standards and must be operated by professionals
- Ensure that the power of power supply and controller can match the load
- Ensure that the power supply and controller output parameters match the neon lights
- Pay attention to electrostatic protection when installing neon lamp belt
- When the service length of neon lamp belt exceeds its rated service length, additional power supply shall be made
- When the neon lamp belt is cut, waterproof treatment must be done.
