1000W Winch Manual Mobile Light Tower for Municipal Engineering Projects Lighting
Hebei Rongyuan Plastic Products Co., Ltd.- Elevation：Hand Winch Manual Mechanical
- Engine：Kubota,Quanchai,Yongdong
- Transport Package：Transport Package,Plywood Case,Carton
- Specification：4500*1350*1700mm
- Trademark：Robust Power
- Origin：China
Base Info
- Model NO.：RPLT-6000
- HS Code：94054090
- Production Capacity：300 Sets Per Month
Description
MOBILE LIGHT TOWER RPLT-6000 SERIES Technical specificationsGENERATOR EngineKubota D1105-BG Dieselquanchai/yongdong)Engine Type 3 cylinders,in line,water cooledGenset Prime Power7.2kW / 50Hz 8.4kW/60HzEngine Aspiration1500rpm 1800rpmAlternatorStamford PI044F/4-pole,Brushless,excitation(or Sinocox/Linz)Voltage120,220,230,240VInsulationHFuel Tank Capicity(L)100 L~120LFuel Consumption2.0 L/hMaximum Working Hours50Control systemGU3303 Digital controllerEngine Shutdown ProtectionLow oil press,over speed,over current,high temperature detection,low fuel levelAyxiliary Sockets2Lighting Total Power Of Lamps4/ 6x1000WType Of LampMetal halide lampHousing MaterialsGalvanization Reflector HousingLumen4*110,000Lifetime Of Lamp5000 hoursWorking Temperature≤85°CConnection Protection IndexIP54Mast Type3-Sections Telescoping mast 9MTotal HeightTop 9MRotation360 degrees non-continuousOperate For ElevationWinch(Mechanical)Trailer Tow HitchRing/ball hitchStabiliser Supports4*ManualTire Size13 inchBrakesManualDIMENSION & WEIGHTDry/Net Weight830/780 kgExtend Dimension(LxWxH)4500*1350*1700mmShipping PackageIron Pallet 1800*1250*1450mm Plywood case 3500*300*260mm Carton 510*510*430mmContainer Load(20GP/40HQ)6/12 setsColorWhite/Yellow/Optional

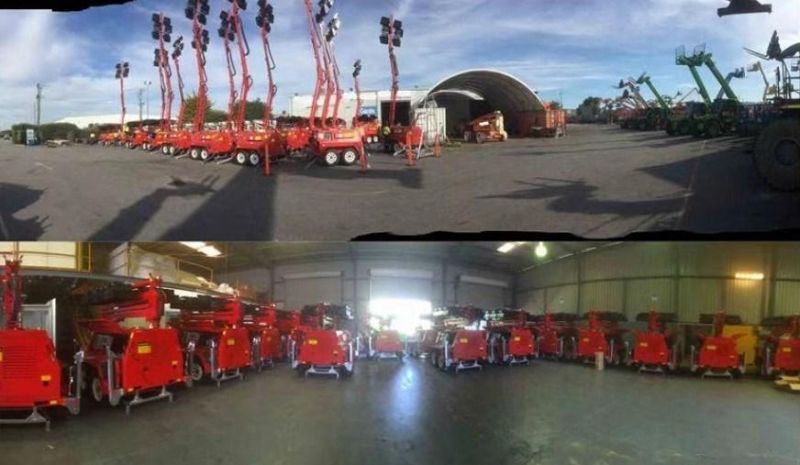

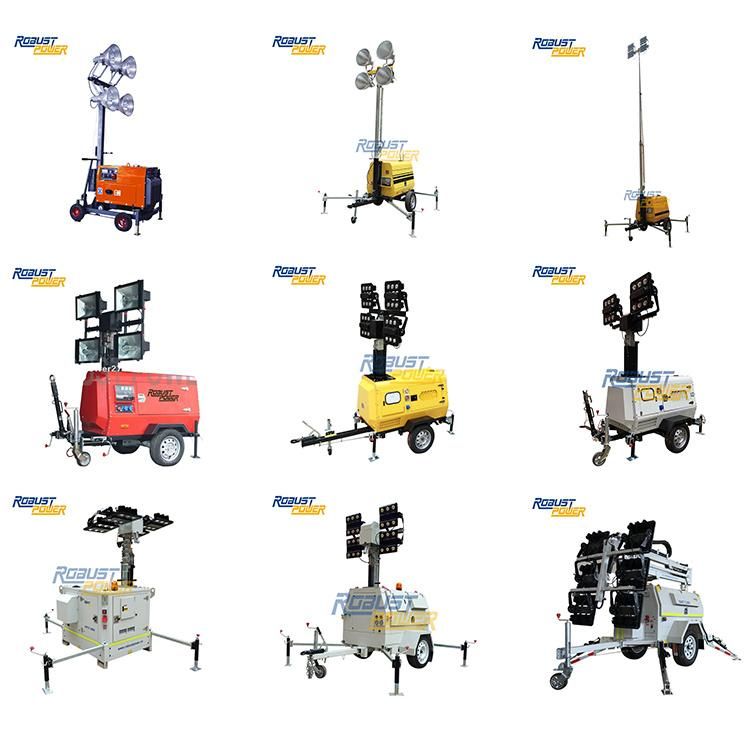

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
