P5 Indoor Fixed LED Display Panel Screen in Meeting Room

Yuhuan Green Island Plastic Packaging Factory
  • Tube Chip Color：Full Color
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Pixel Pitch：5mm
  • Pixel Configuration：1R,1G,1B
  • Scanning Mode：1,16 Scan
  • Display Type：LED Video Display

Base Info

  • Model NO.：LW-FI 5
  • Application：Stage Performance, Advertising, Shopping Guide
  • Certification：CE, RoHS, UL, CCC, ETL
  • P5 Indoor LED Display：Indoor Fixed
  • RGB LED：SMD3528
  • Traditional Cabinet：Metal Plate
  • Drive Method：1,16
  • Transport Package：Plywood Box or Flight Case
  • Specification：CE, ROHS, CCC
  • Trademark：LED World
  • Origin：Shenzhen, Guangdong, China.
  • HS Code：8528591090
  • Production Capacity：5000sq. M,Month

Description


Item
Indoor Fixed LED display SeriesPixel Pitch(mm)3mm4mm5mm6mmPixel density(pix/m2)111111625004000027777LED Type2020202035283528Viewing AngleH:140°,V:140°Color Depth(nits)1000120015001500Drive Method1/321/161/161/16Color Depth16384Refresh Rate(Hz)1200120012001200Module Size(mm)192×192×13256×128×13160×160×13192×192×13Cabinet Size(mm)384×384512×512×133640×640×133768×768×133Cabinet MaterialAluminumIron Sheet MetalIron Sheet MetalIron Sheet MetalCabinet weight(kg)9152332Voltage110/240VAverage.power(W/m2)300250160120Max.power(W/m2)900750480350IP GradeIP31Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCE,FCC,RoHS,ETL,CCC

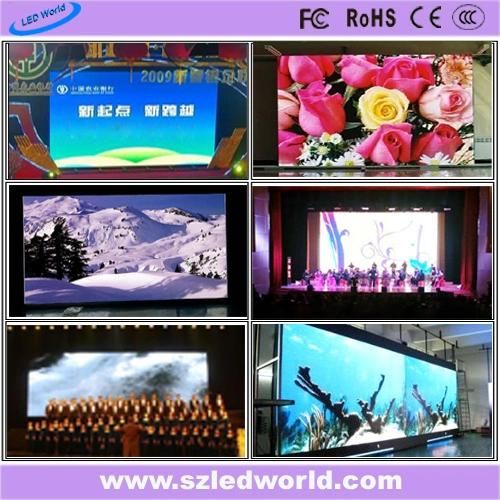

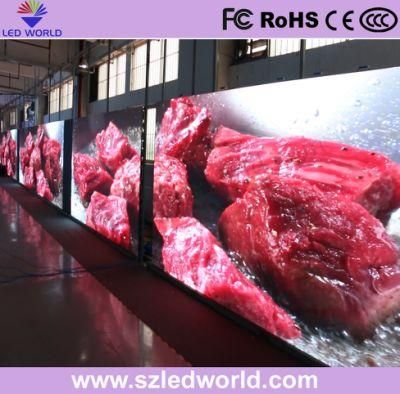

project case:

P5 Indoor Fixed LED Display Panel Screen in Meeting Room

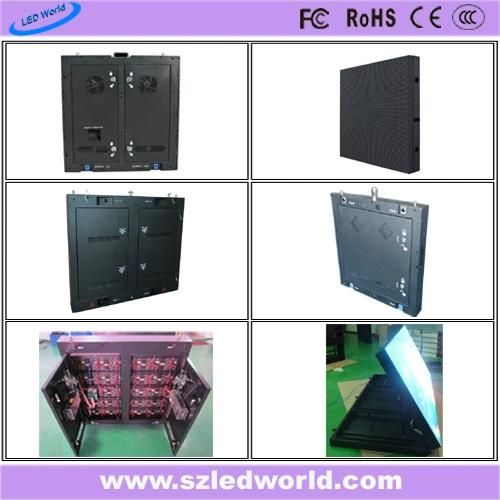

product detail:

P5 Indoor Fixed LED Display Panel Screen in Meeting Room

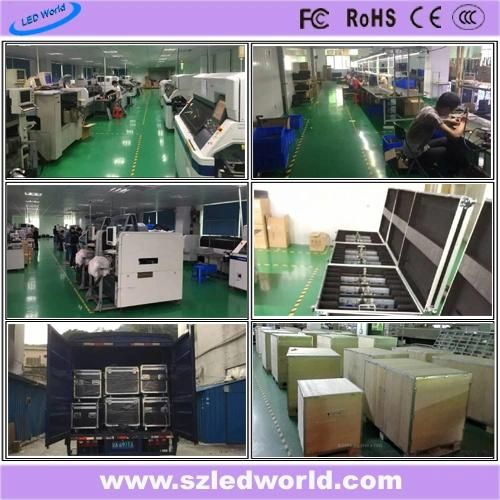

workshop and package:

P5 Indoor Fixed LED Display Panel Screen in Meeting Room


FAQ:
1. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (P6mm / P8mm/P10mm)
2. What are LED QTY ?
LED QTY is the quantity of LED lamps per square.
3. What are your additional service
We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
4. Can you assign engineer to our site to guide the installation if we require?
Yes. We have qualified and experienced engineers who are ready to service for you ;
5. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays;
