Home > Product > 28*8*8cm

High Temperature Resistance HEPA Filter (HT)

Hangzhou Chinaweek International Trading Co., Ltd
  • Type：Air Filter
  • Material：Paper Core
  • Structure：Panel Filter
  • Filtration Grade：Hepa Filter
  • Application：Air
  • Pattern：Dry

Base Info

  • Brand：Fresh
  • Classification：Air Filter
  • Filter Efficiency：>99.95
  • Certification：ISO9001, Ts16949
  • Partition Material：Aluminum Foil or Veneer Paper
  • Initial Pressure (PA)：<200
  • Final Resistance：450PA (Suggested)
  • Temperature Resistance：250-350ºC
  • Transport Package：Carton
  • Specification：610*610*150mm (according to requirement)
  • Trademark：FRESH
  • Origin：China

Description

Basic Info.

Brand Fresh Classification Air Filter Filter Efficiency >99.95 Certification ISO9001, Ts16949 Partition Material Aluminum Foil or Veneer Paper Initial Pressure (PA) <200 Final Resistance 450PA (Suggested) Temperature Resistance 250-350ºC Transport Package Carton Specification 610*610*150mm (according to requirement) Trademark FRESH Origin China

Product Description

High Temperature Resistance HEPA Filter (HT)

Specification:

·High efficiency(capturing  0.5 or above 0.5μm Particles)

·Low resistance

·Large dust holding capacity

·Fine uniformity of air velocity



Application:
It is applied to dead-end filtration of thecleanroom and many kinds of cleaning equipments

Type: high efficiency box filter

Final resistance:(suggested)450Pa

Max. air flow: 125% of the rated air flow

Temp resistance: 80ºC

Humidity:≤100%RH

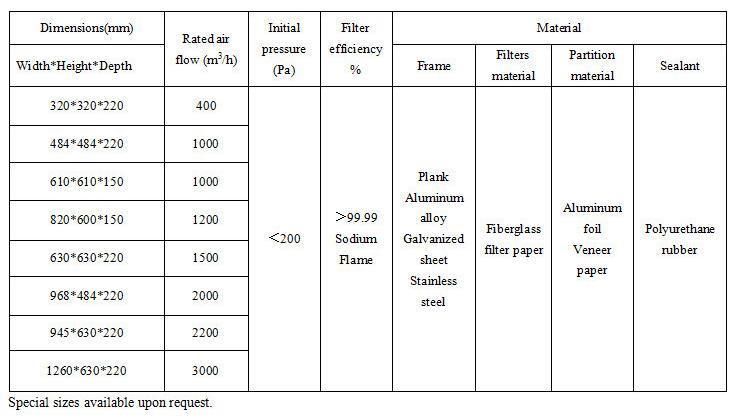

Normal Size:
High Temperature Resistance HEPA Filter (HT)

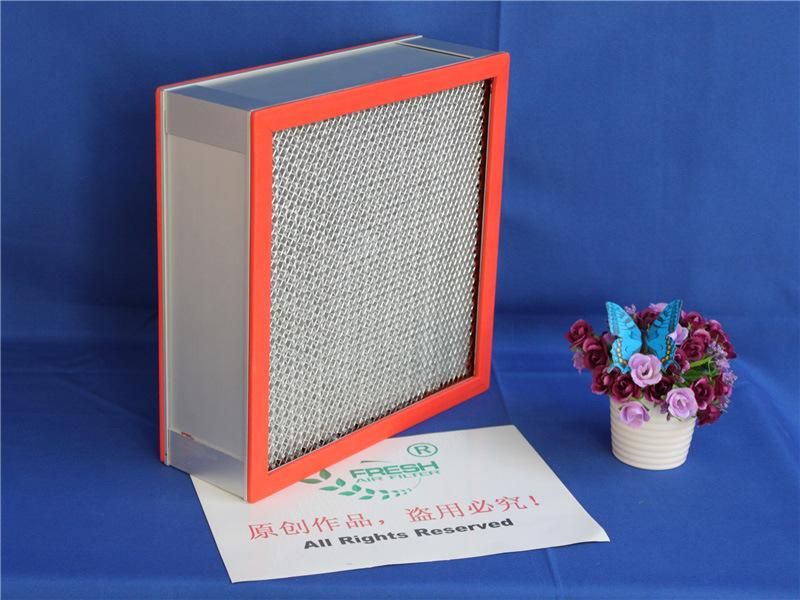

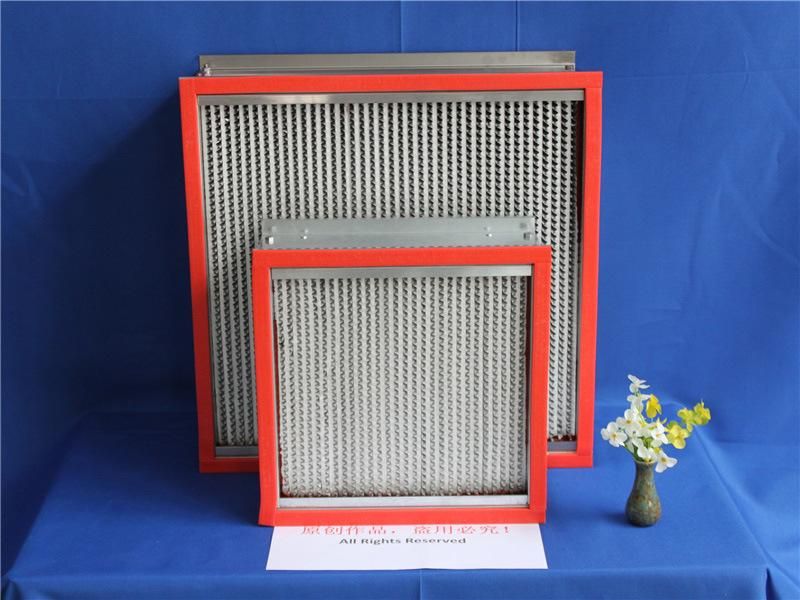

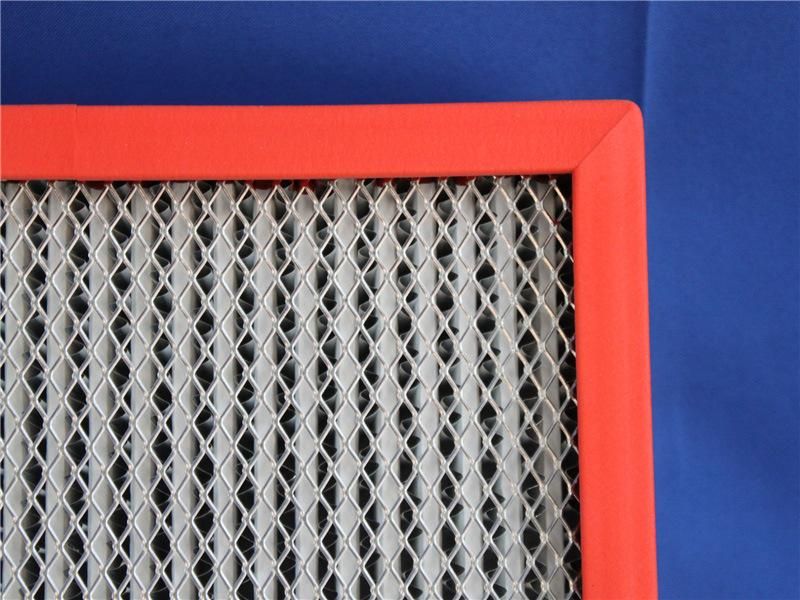

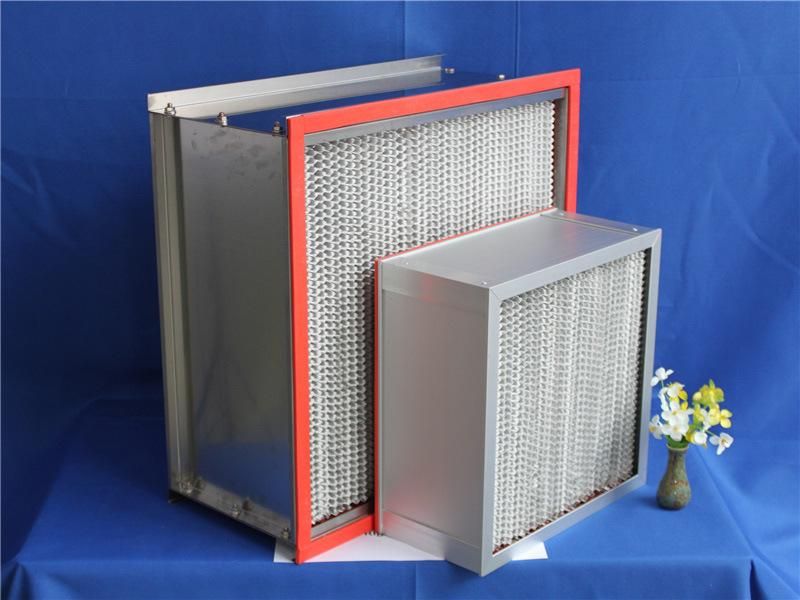

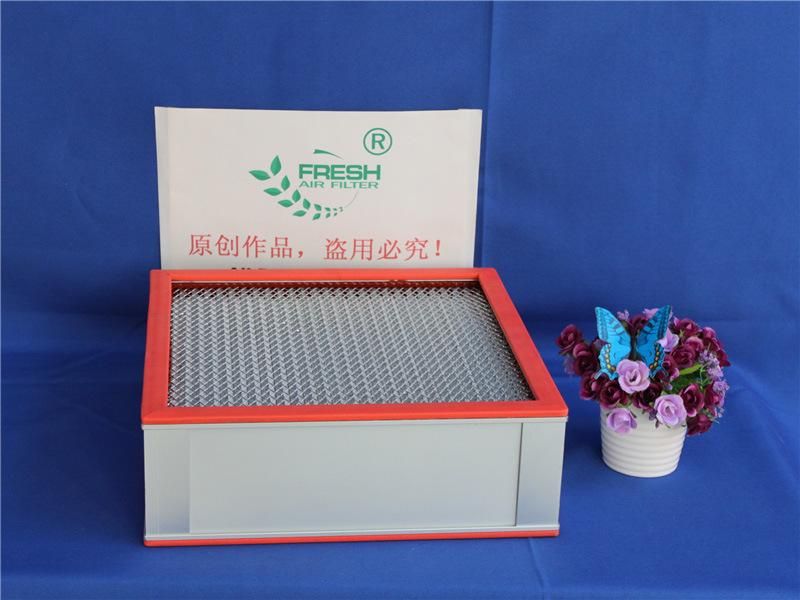

Product Pictures:
High Temperature Resistance HEPA Filter (HT)High Temperature Resistance HEPA Filter (HT)High Temperature Resistance HEPA Filter (HT)High Temperature Resistance HEPA Filter (HT)High Temperature Resistance HEPA Filter (HT)
