• Model NO.：DDCP
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Moral
• Design：Scissor
• Load Capacity：5000kg
• Platform Size：5500*2500mm or Customized
• Lifting Height：2500mm or Customized
• Height：560mm
• Power：7.5kw
• Speed：6m,Min
• Materials：Mn Steel
• Working Condition：Inddor or Outdoor
• Driving Mechanism：Hydraulic
• Warranty：12 Months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：5000,Year

Basic Info.

Model NO. DDCP Shearing Lift Type Small Shear Type Condition New Brand Moral Design Scissor Load Capacity 5000kg Platform Size 5500*2500mm or Customized Lifting Height 2500mm or Customized Height 560mm Power 7.5kw Speed 6m/Min Materials Mn Steel Working Condition Inddor or Outdoor Driving Mechanism Hydraulic Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 5000/Year

Product Description

2 Level Garage Parking Auto lift with Roof

Main features:

1) Load capacity: 2500kgs (below platform)
                  2500kgs (upper platform)
2) Platform size: 5.5m x 2.5m (below platform)
                5.5m x 2.5m (upper platform)
3) Lift height: 2.5m

4) Height between platforms: 2.5m

5) Platform Material: rectangular tube + checkered iron

6) Scissor material:  high strength Manganese Steel.

7) Hydraulic system: 380V/5.5Kw or as your requests.

8) High Precision Hydraulic Cylinder

9) Piston Rod: hard chromium plating surface.

10) High-pressure oil pump

11) Hydraulic oil: in summer 46#, in winter 32#

12) Controller: 1 control box below, 1 control panel above platform

Techinical Specification:

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5) Control system adopt elevator control system, very convenient and safety.
6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

Parameters:


Model	SJG5-2.5
Lifting capacity	5000kg
Lifting height	2550mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V  50HZ/60HZ
Speed	100mm/s
Weight	2150KG

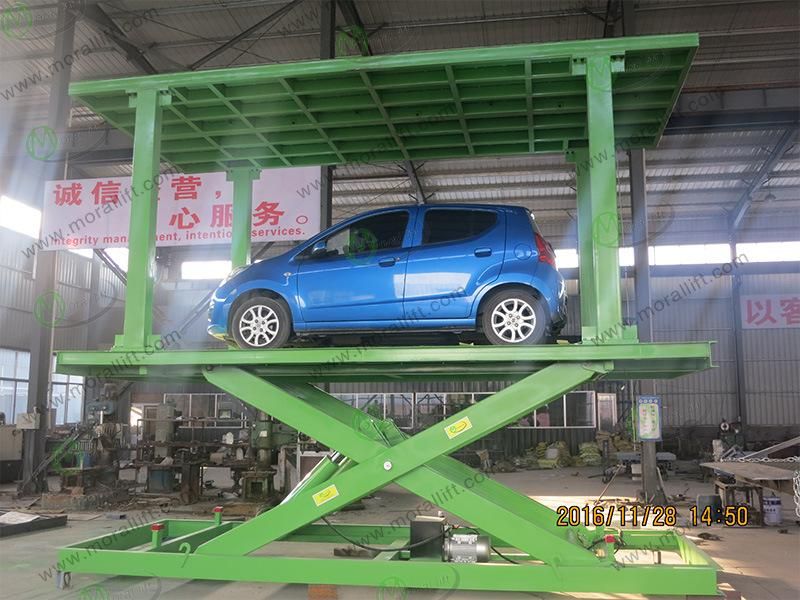

Pictures:

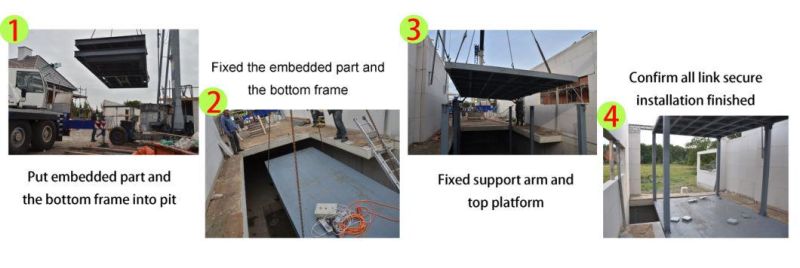

Installation Step

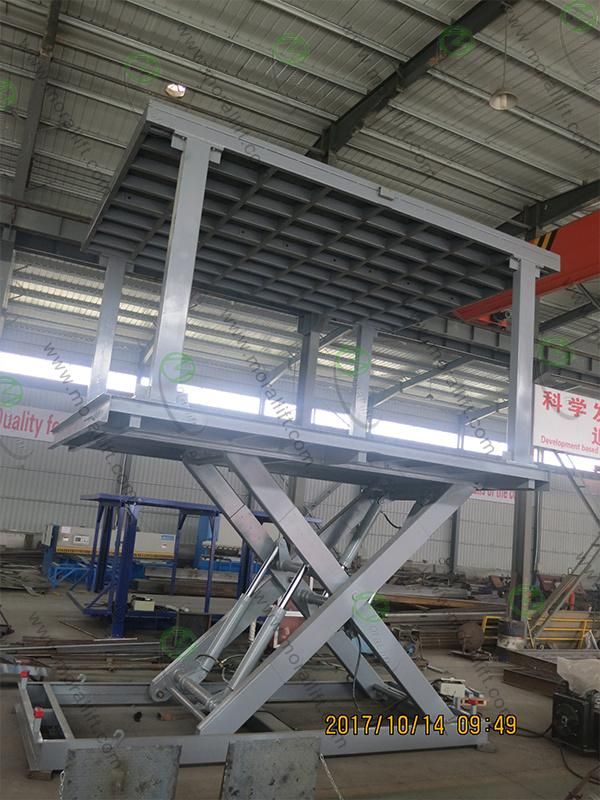

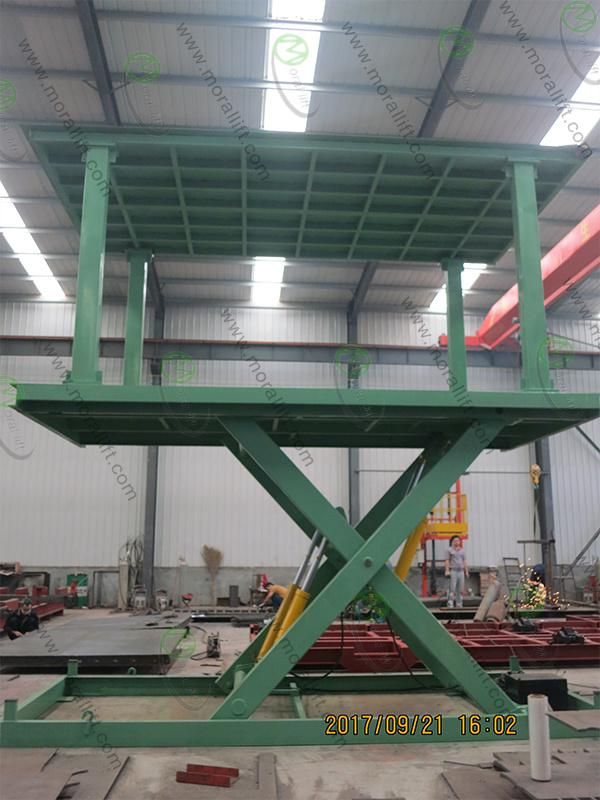

Sample Picture:
