• Model NO.：JRT0420
• Manufacturing Method：Sintered Gear
• Toothed Portion Shape：Spur Gear
• Type：Circular Gear
• Transport Package：Wooden Cases or According to Your Requirements
• Specification：CE, ISO14001: 2004, ISO9001: 2000
• Trademark：ADVANCE
• Origin：China
• HS Code：8483409000
• Production Capacity：50 Sets,Week

Basic Info.

Model NO. JRT0420 Manufacturing Method Sintered Gear Toothed Portion Shape Spur Gear Type Circular Gear Transport Package Wooden Cases or According to Your Requirements Specification CE, ISO14001: 2004, ISO9001: 2000 Trademark ADVANCE Origin China HS Code 8483409000 Production Capacity 50 Sets/Week

Product Description

Product use :

The series of prosucts are mainly used in construction machinery.

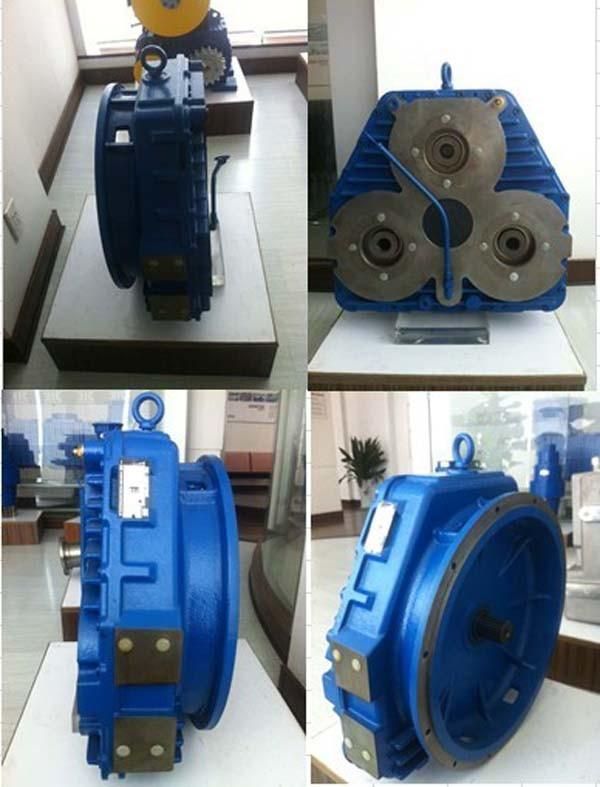

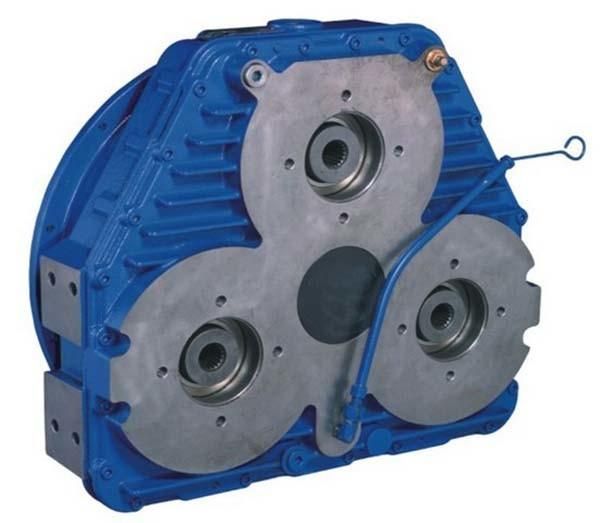

For a one input & three output transfer case,i.e.
The engine power input through transfer case is divided into three output.

1.JRT04..Series paver Transfer Case
2.Transmission Efficiency :greater than or equal to 96%
3.Input speed Max :3500 Rpm










         "advance" as a famous brand in china,exports its products to more than 50 countries and regions,including southeast Asia,Europe,Australia,africa,Middle east,America,etc. The company has established joint-ventures in Malaysia,Hongkong and Macau,all of which are equipped with integrated after-sale service system.

        We deeply appreciate all our friends and hope to make further cooperation.









  Product introduction :

        The housing is precision casting by resin molding sand process. The overrall has high intensity and good rigidity. The gear takes special profile modification and goes through carburization and grinding process to reach DIN class 6 on tooth quality, which ensure smooth a world-renowned brands,ensuring the sffsctive performance of the machine. The main performance as below:





The noise : ≤82dB(A)



Life : ≥30000Hours



Transmission efficiency : ≥ 96%



 Technical Parameters:





TypeInput power(KW)Single-pump power(KW)Single-pump max torque(NM)INPUT speed Max(Rpm)Weight(kg)JRT042040021010003500130



 Ratio and Intertia:

(i=Transfer case gear ratio)    j=Transfer case input shaft moment of inertia)



JRT0420i0.600.660.710.780.850.961.041.091.181.29j0.120.110.100.100.090.090.080.080.080.07
