• Model NO.：P5 rental led video wall
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：31
• Certification：CE, RoHS, UL, CCC
• Panel Size：320mm*160mm
• Cabinet Size：640mm*640mm
• Brightness：1800CD
• Chip Brand：Epistar
• LED Encapsulation：Kinglight
• LED Specification：SMD2121
• Drive IC：5124,16016
• Refresh Rate：>1000Hz,S
• Working Temperature：-25-+55
• Warranty：2 Years
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：CE, FCC, RO-HS, SGS
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8528591090
• Production Capacity：6000spm,Month

Basic Info.

Model NO. P5 rental led video wall System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising IP Rating 31 Certification CE, RoHS, UL, CCC Panel Size 320mm*160mm Cabinet Size 640mm*640mm Brightness 1800CD Chip Brand Epistar LED Encapsulation Kinglight LED Specification SMD2121 Drive IC 5124/16016 Refresh Rate >1000Hz/S Working Temperature -25-+55 Warranty 2 Years Transport Package Air Box & Carton Box & Wooden Box Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8528591090 Production Capacity 6000spm/Month

Product Description

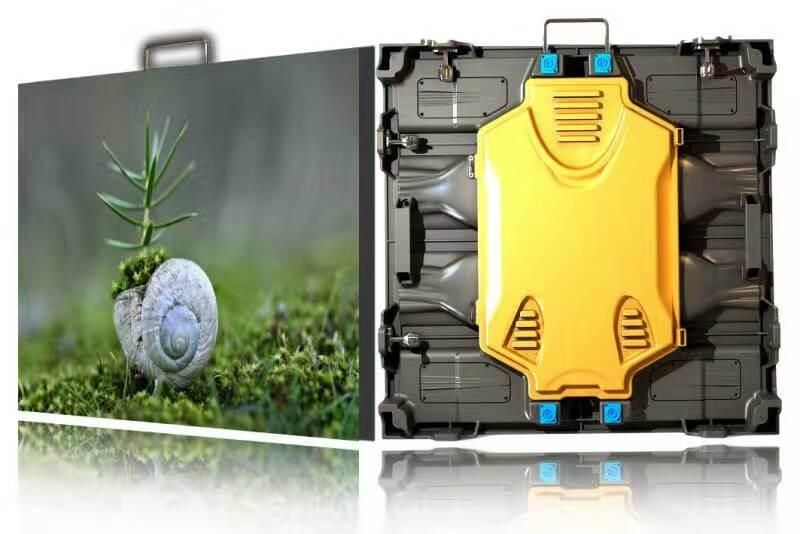

P5 SMD Indoor Rental LED Video Wall

China LED Display Manufacturers Wholesale High quality, high brightness rental LED screen,Die-casting Aluminum Cabinet,indoor LED Display for fixed installation.

Specification


Item
Model NO.	P5
Pixel Pitch	5mm
Pixel Configuration	1R1G1B
LED Type	SMD2020
Density	40000 dots/m2
Brightness	1800CD
Color Temperature	6500-9500K
Scan Method	1/16

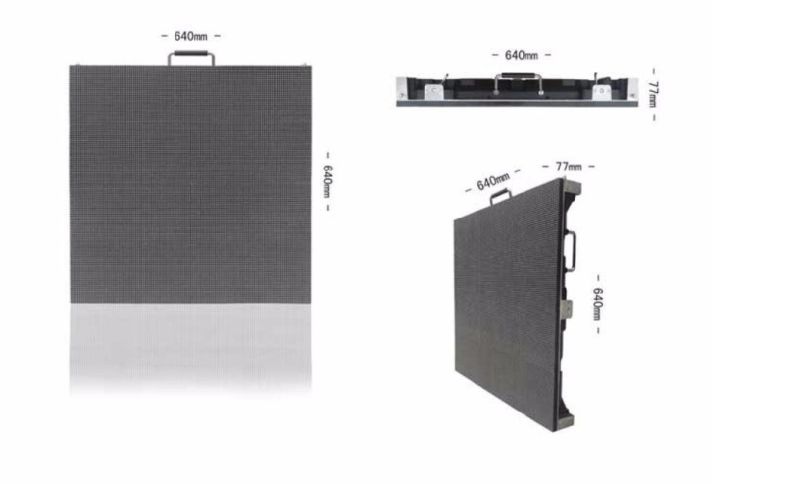

Cabinet Size	640x640mm
Module Resolution	64x32
Cabinet Resolution	128x128
Cabinet Weight	7.2Kg/cabinet
Max. Power Consumption	700W/m2
Ave. Power Consumption	4000W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	1000Hz
Gray Scale	16bit
Best View Distance	>5m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-25-+50 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

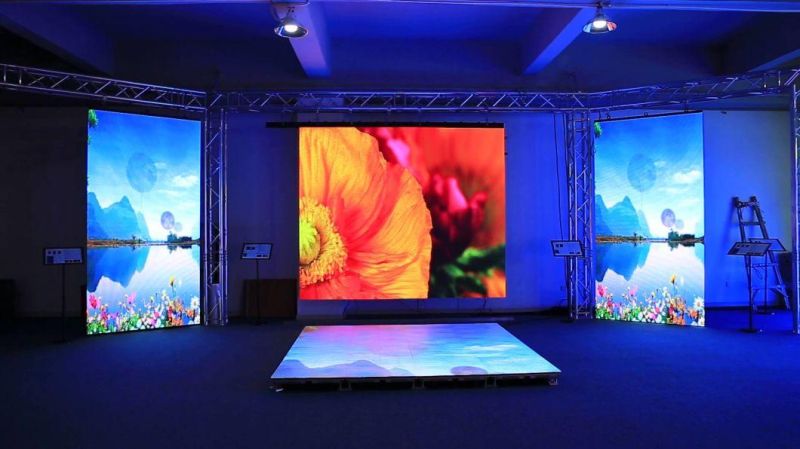

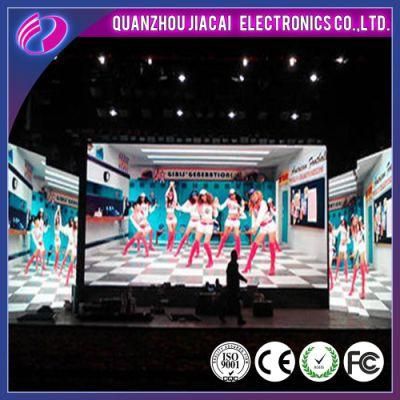

P5 rental led video wall application:



Our service
 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms
 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2 years6. Delivery time: 3-15 working days
