P6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOT

Guangzhou Zhonghao Packaging Products Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：6.25mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：390W,Sqm

Base Info

  • Model NO.：P3.91, P4.8, P5.95, P6.25
  • Pixel Density：25600 Pixels,Sqm
  • Scanning Mode：1,6 Scan
  • Display Type：LED Video Display
  • Application：Stage Performance
  • Certification：CE, RoHS, UL, CCC, ETL
  • Delivery Time：15~25 Working Days
  • Warranty Time：2 Years
  • Cabinet Size：500X500mm
  • OEM：Yes
  • Transport Package：Flight Case, Plywood Case, Carton.
  • Specification：CE, ROHS, ISO9001
  • Trademark：BST
  • Origin：Shenzhen, China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

ModelOR-6.25Pixel Pitch6.25mmPixel Density25600pixels/m2LED TypeSMD3535LED Configuration1R1G1BCabinet Dimension500mmx500mmCabinet Resolution80*80pixelsCabinet Weight8kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/5 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)275w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003P6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOTP6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOTP6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOTP6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOTP6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOTP6.25 Aluminum Outdoor Stage Rental LED Video Wall Display Screen SMD RGB DOT

Product features



Lightweight:The aluminum die-casting technology makes the single cabinet as light as 8.5KG,which is convenient for assembly and transportation.

Seamless connection:The aluminum die-casting technology,togrther with the high-precision CNC procession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.

Low power consumption:Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy over 35%,which in other words is to save money .

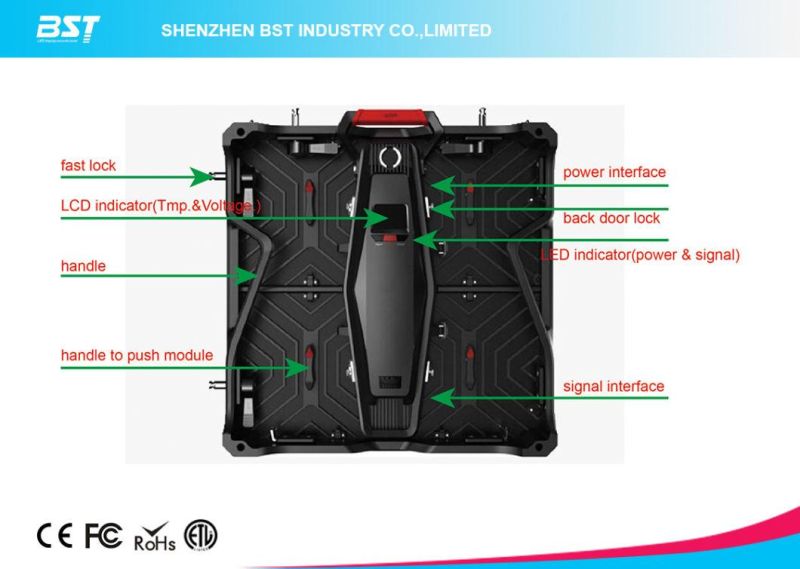

Easy to maintain:No need to disassemble the shile screen for maintenance.Each component can be detached individually for that purpose.

Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.

Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.

High refresh rate:Over 1880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.

Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.



Application scopes

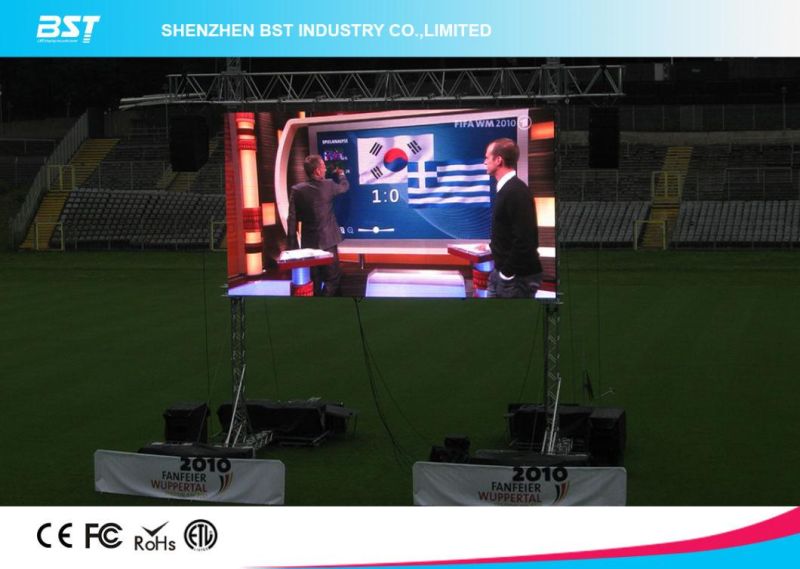

widely applied to stage shows, television broadcast,monitoring,bank, shopping mall and so on.
