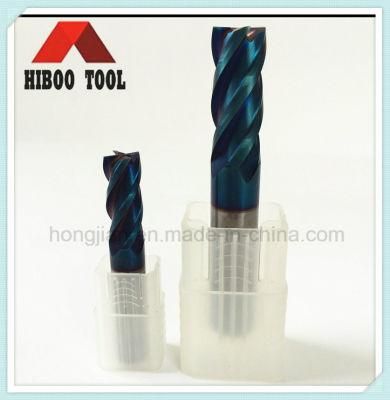

Z4 Blue Nano Coated Cutting Tool for Steel
Shandong Welink Packaging Co., Ltd.- Coating：Coating
- Tooth Form：Spiral Tooth
- Tooth Space：Standard
- Structure：Integral
- Material：Tungsten Carbide
- Type：Milling Cutter
Base Info
- Model NO.：High speed end mill
- Logo Printing：Without Logo Printing
- Size：Middle
- Customized：Non-Customized
- Length：50-100mm
- Helix：35 Degree
- Hardness：HRC65
- Process Usage：Metal-Cutting CNC Machine Tools
- Movement Method：Contour Control
- Performance Classification：High-End CNC Machine Tools
- Finish Surface：Plain Surface, The Side, Socket
- Suitable for：Copper, Cast Iron, Carbon Steel, Mould Steel
- Transport Package：1PC in a Plastic Tube, 10PCS a Group
- Specification：1.0-20.0mm
- Trademark：HIBOO
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Month
Description
Overview
Product Description

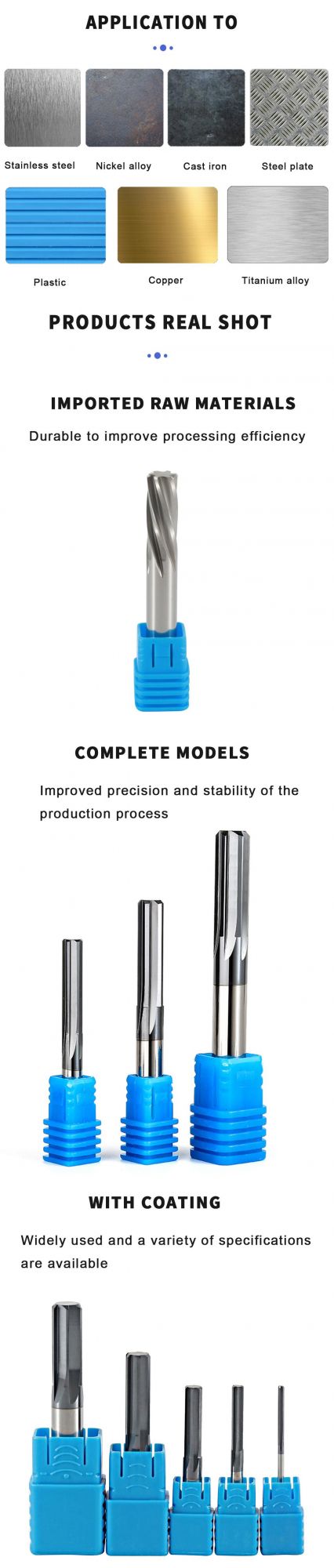

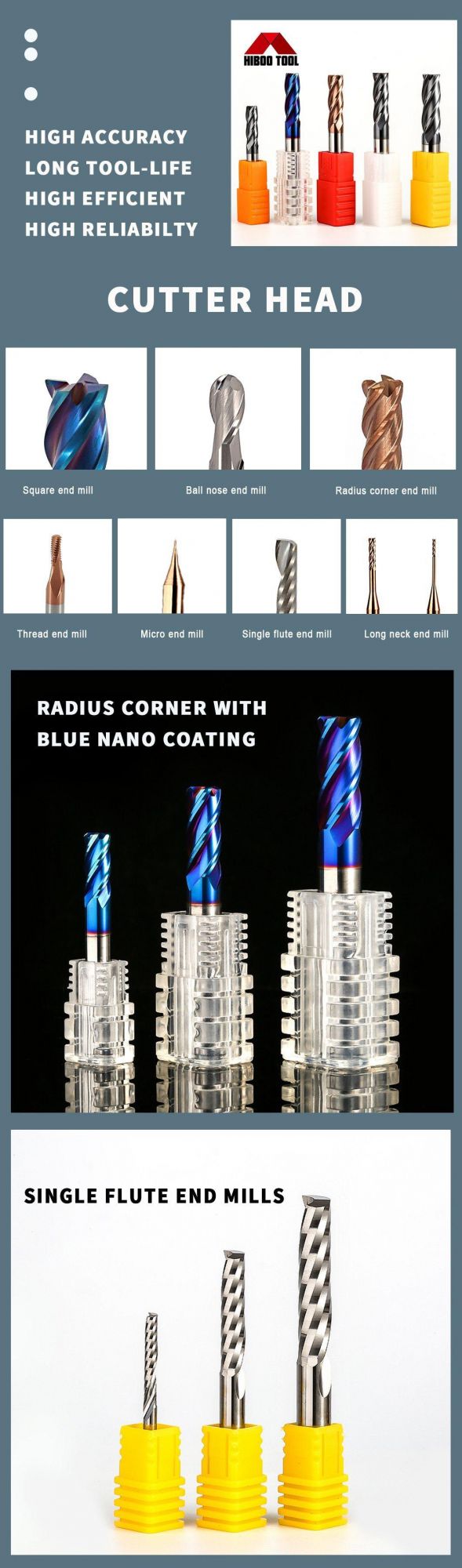

13%TRS >4200N/mm2 Hardness >92HRA Cutting diameter 1-20mm A.O.L 50-100mm Grain size 0.4um Helix angle 35° Upto HRC65 Flutes No 4F Coating Blue Nano Made by Anca Inspected by Zoller Suitable for Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials Cutting Flute Shank A.0.L d l D L 1.0×3×4D×50L×4F 1 3
4
50 1.5×4×4D×50L×4F 1.5 4 2.0×6×4D×50L×4F 2 6 2.5×8×4D×50L×4F 2.5 8 3.0×8×4D×50L×4F 3 8 3.5×10×4D×50L×4F 3.5 10 4.0×11×4D×50L×4F 4 11 3.0× 8×6D×50L×4F 3 8
6 3.5×10×6D×50L×4F 3.5 10 4.0×11×6D×50L×4F 4 11 4.5×13×6D×50L×4F 4.5 13 5.0×13×6D×50L×4F 5 13 5.5×13×6D×50L×4F 5.5 13 6.0×15×6D×50L×4F 6 15 7.0×16×8D×60L×4F 7 16 8 60 8.0 ×20×8D×60L×4F 8 20 9 ×20×10D×75L×4F 9 20 10 75 10×25×10D×75L×4F 10 25 11×25×12D×75L×4F 11 25 12 12×30×12D×75L×4F 12 30 14×35×14D×100L×4F 14 35 14 100 16×40×16D×100L×4F 16 40 16 18×40×18D×100L×4F 18 40 18 20×45×20D×100L×4F 20 45 20
Packaging & Shipping3-7 workdaysProduction Term 7-30 workdays ,it will depond on the order quantity
Exhibition
13%
4
50
6
Company Profile

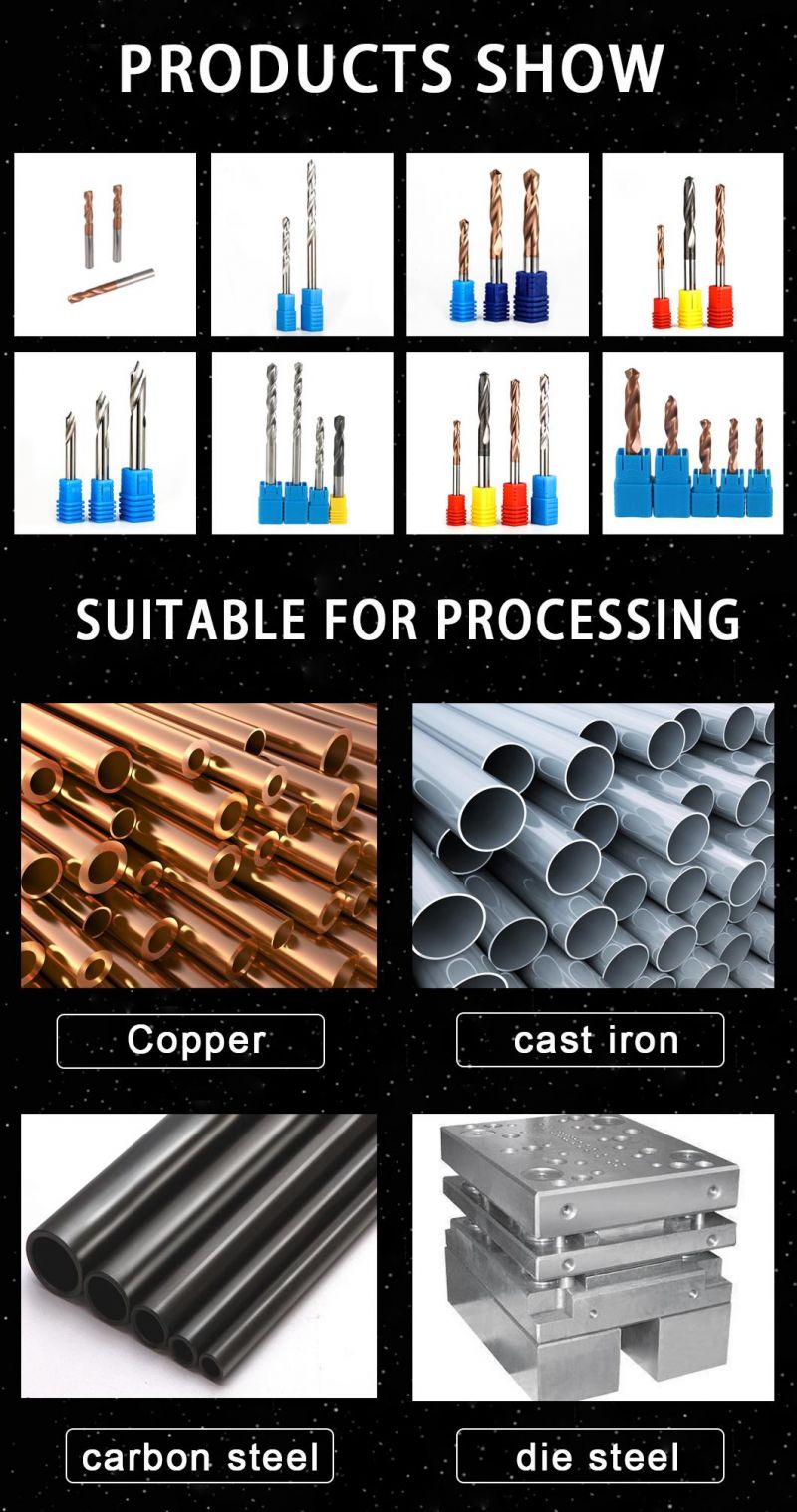

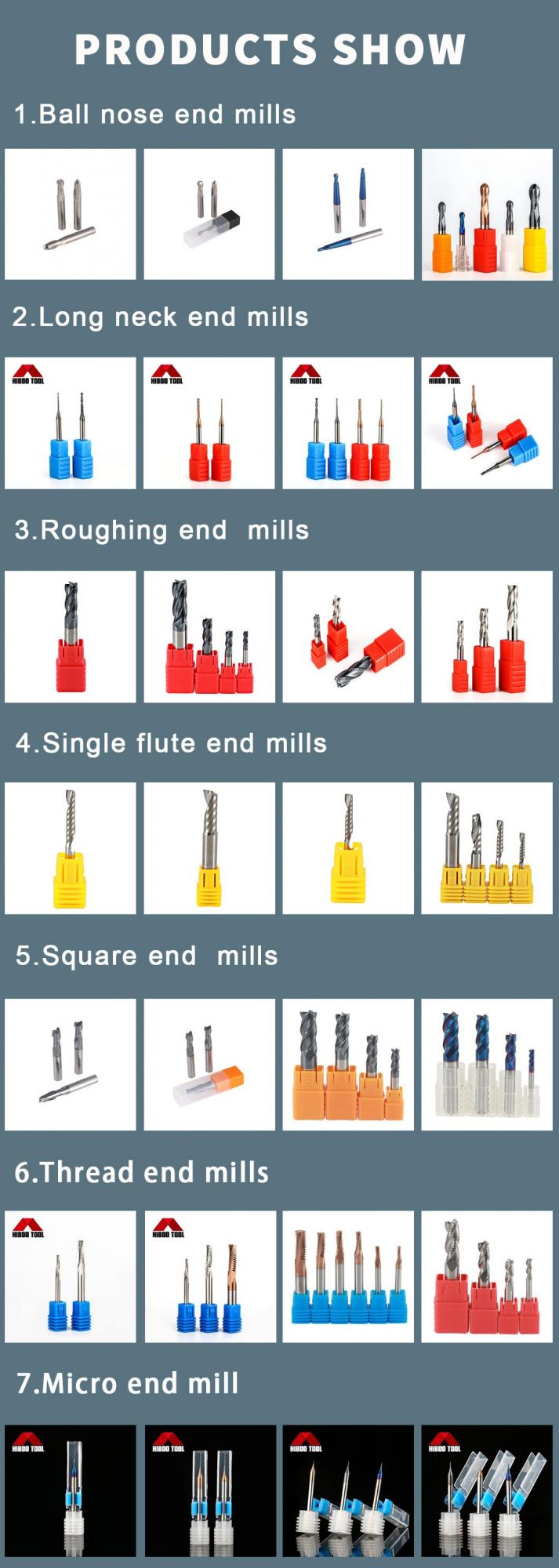

Main Products
