• Model NO.：S series
• Type：Worm Gear Box
• Rated Power: 0.18kw~22kw：Max. Torque: 90~4000n.M
• Gear Arrangement: Helical-Worm Gears：Shafts Position: Right Angle
• Ratio: 10.27~230.48：Installation Form: Foot, Flange, Shaft Mounted
• Housing: Cast Iron：Gears: Helical-Worm Gears
• Gearing Arrangement：Helical Worm
• Output Torque：90~4000n.M
• Input Speed：1400rpm
• Output Speed：Based on Ratio
• Place of Origin：Henan, China
• Brand Name：Aokman Drive
• Ratio：10.27~230.48
• Color：Blue,Grey,Customized
• Gear Materia：20crmntih
• Material of Housing：Cast Iron
• Mounting Position：Foot, Flange, Shaft Mounted
• Transport Package：Wooden Case; Pallet; Carton
• Specification：ISO; SGS; CE
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：848340900
• Production Capacity：8000

Overview Product Description

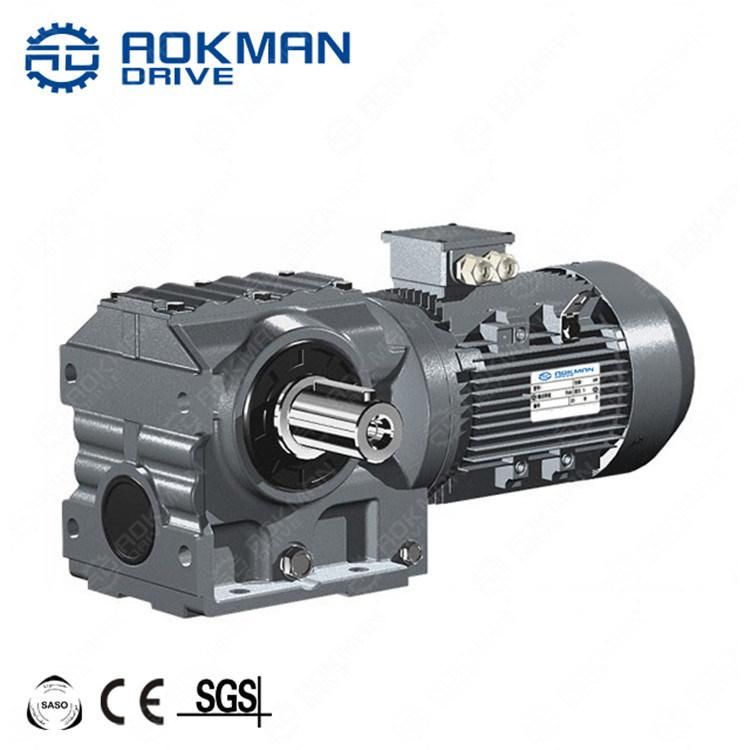

Good Quality Long Life S Series Right Angle Gearbox Supplier in China


S series gearbox are available in the following designs:
(1) SY
Foot mounted helical worm gearbox with solid shaft

(2) SAY
Helical worm gearbox with hollow shaft


(3) SAZY
Small flange mounted helical worm gearbox with hollow shaft

(4) SA (S,SF,SAF,SAZ)Y
Assemble users' motor or special motor, flange is required

(5) SFY
Flange mounted helical worm gearbox with solid shaft

(6) SAFY
Flange mounted helical worm gearbox with hollow shaft

(7) SATY
Torque arm mounted helical worm gearbox with hollow shaft

(8) S (SF,SA,SAF,SAZ) S
Shaft input helical worm gearbox

(9) SA (S,SF,SAF,SAZ)RY
Combined helical worm gearbox

(10) SA (S,SF,SAF,SAZ)SR
Shaft input combined helical worm gearbox


1.Technical data

S   SA   SF   SAF   SAT   SAZInput Power(kW)0.18~0.750.18~1.50.18~30.25~5.50.55~7.50.75~151.5~22Ratio10.27~165.7111.46~244.7410.78~196.2111.55~227.209.96~241.0911.83~223.2612.75~230.48Permissible Torque(N.m)90170300520127022804000Detailed Photos

3.Gear unit weight

Product Parameters

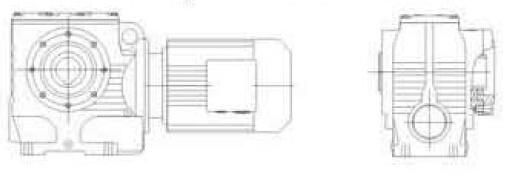

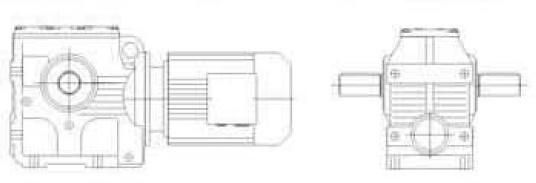

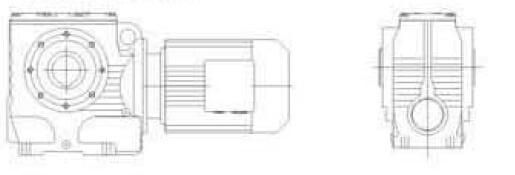

4.Structures of S series gearbox

S series gear units are available in the following designsS...Y...Foot-mounted parallel shaft helical gear units with solid shaftSA...Y...Parallel shaft helical gear units with hollow shaftSAZ...Y...Short-flange mounted parallel shaft helical gear units with hollow shaftSF...Y...Flange-mounted parallel shaft helical gear units with solid shaftSAT...Y...Flange-mounted parallel shaft helical gear units with hollow shaftS(SF,SA,SAF,SAZ)S...Shaft input parallel shaft helical gear unitsS(SF,SA,SAF,SAZ)...R...Y...Combinatorial parallel shaft helical gear unitsS(SF,SA,SAF,SAZ)S...R...Shaft input combinatorial parallel shaft helical gear unitsPackaging & Shipping

Company Profile

Our Advantages



After Sales Service

6.Our services:


Pre-sale services1. Select equipment model.2.Design and manufacture products according to clients' special requirement.3.Train technical personal for clientsServices during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.FAQ

1.Q:What kinds of gearbox can you produce for us?

A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
