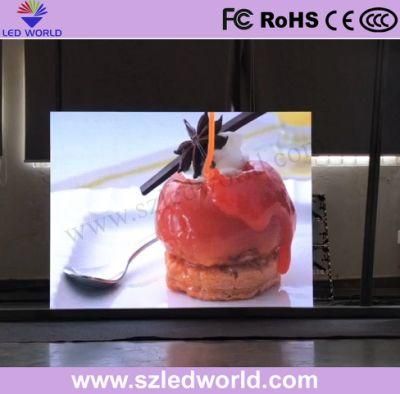

Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：P10-DIP346
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display

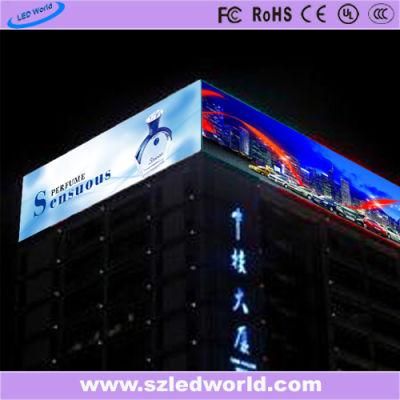

- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：DIP346
- Module Size：320X320mm
- Module Resolution：32X32dots
- Brightness：>8500nits
- Transport Package：Wooden Case or as Request
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P10 Outdoor full Color LED Screen SpecificationPixel pitch 10mm Pixel Configuration 1R1G1B LED component DIP346(Epistar) Size of module 320mm x 320mm Resolution of module 32x32 Size of cabinet 960mmx 960mm x150mm Resolution of cabinet 96x96dots Material of Cabinet Iron with back doors Weight of Cabinet <60KGS Brightness >8500cd/m2 Density 10000dots/m2 Best viewing angle 110 /50 Best viewing distance 10-150M Maximum power consumption <900W/m2 Average power consumption <300W/m2 Driving method 1/4 scan Control method Synchronization Gray scale 65536 Colors 256 x 256 x 256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Distance(without relay)
Single-mode optic fiber: 10KM
