IEC Certified LED Energy Saving Solar Garden Sensor Lamps for Street/Garden with High Efficiency Panel
Lens Technology (Shenzhen) Co., Ltd.- Light Source:Energy-saving Lamps
- Lamp Body Material:Aluminum
- Light Type:Solar
- Color Temperature:Cool White
- Power:10-20W
- Technics:Chrome-plating
Base Info
- Model NO.:AIO1
- Illumination Time:12h
- Cell Type:LiFePO4
- Charging Time (H):6
- Usage:Garden, Street
- IP Rating:IP67
- Certification:CE, ISO9001
- Voltage:12,24V
- With Light Source:With Light Source
- Application:Street, Road, Highway, Pathway, Sidewalk, Park
- Color:Grey
- Design:LiFePO4 Battery Is Built in Lamp Fixture
- Pole Height:3-6m
- Transport Package:720*340*135mm
- Specification:10W ~20W
- Trademark:INLUX SOLAR
- Origin:China
- HS Code:9405500000
- Production Capacity:200000 Sets, Year
Description
Lighting ParametersLamp Power10WLuminous Flux1200 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle120°CRI>70Physical ParametersMono Solar Panel10W/5VLiFePO4 Lithium Battery12AH/3.7V (44.4WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 55-65mmDimension of Product478*228*138mmNet Weight of Product6.2kgWorking Mode (PIR Motion Sensor Control)Working Hours per Night12 hoursContinues Rainy Days Backup3 daysEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC

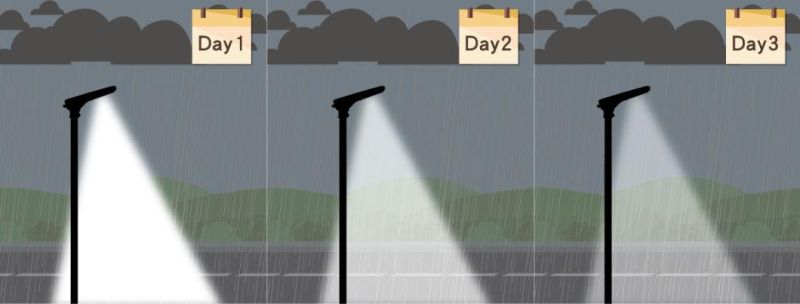

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

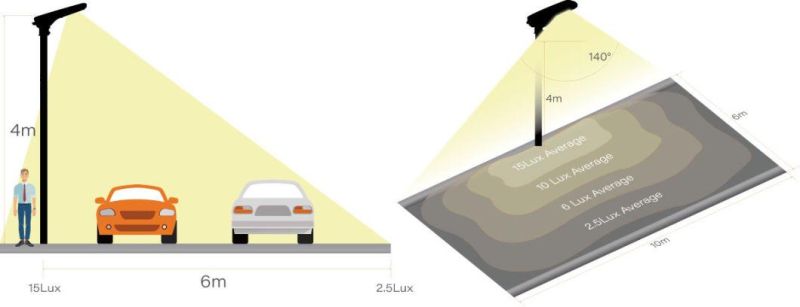

LIGHTING EFFECT
INL-AIO1-10W installed on 4 meters pole.

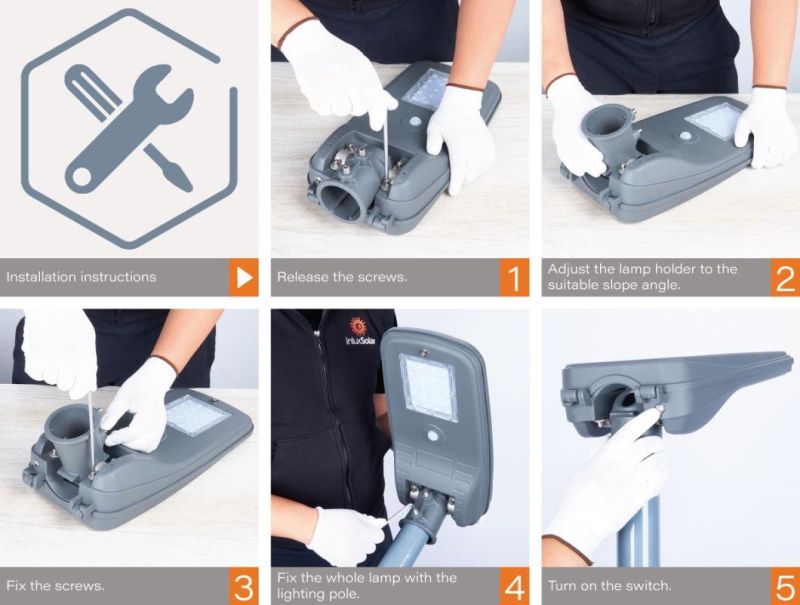

INSTALLATION

WORKING MODE

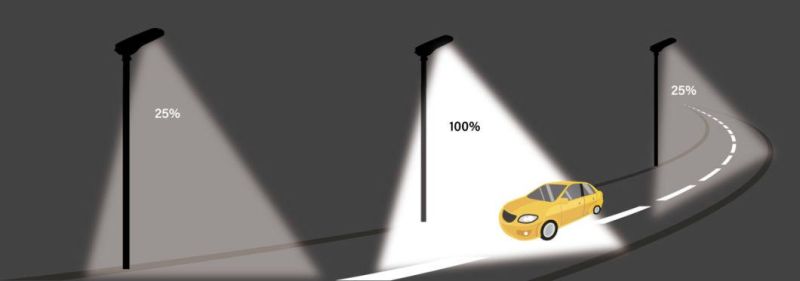

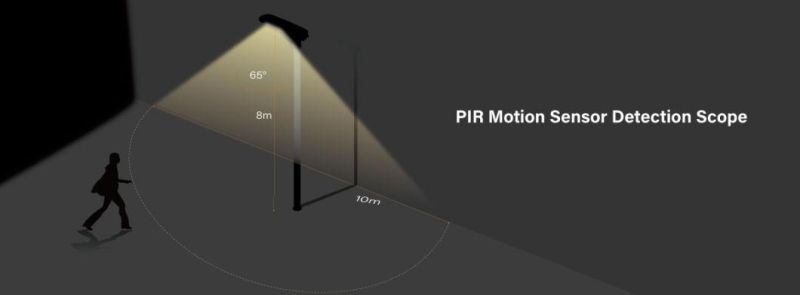

12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.


>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

LIGHTING EFFECT
INL-AIO1-10W installed on 4 meters pole.

INSTALLATION
