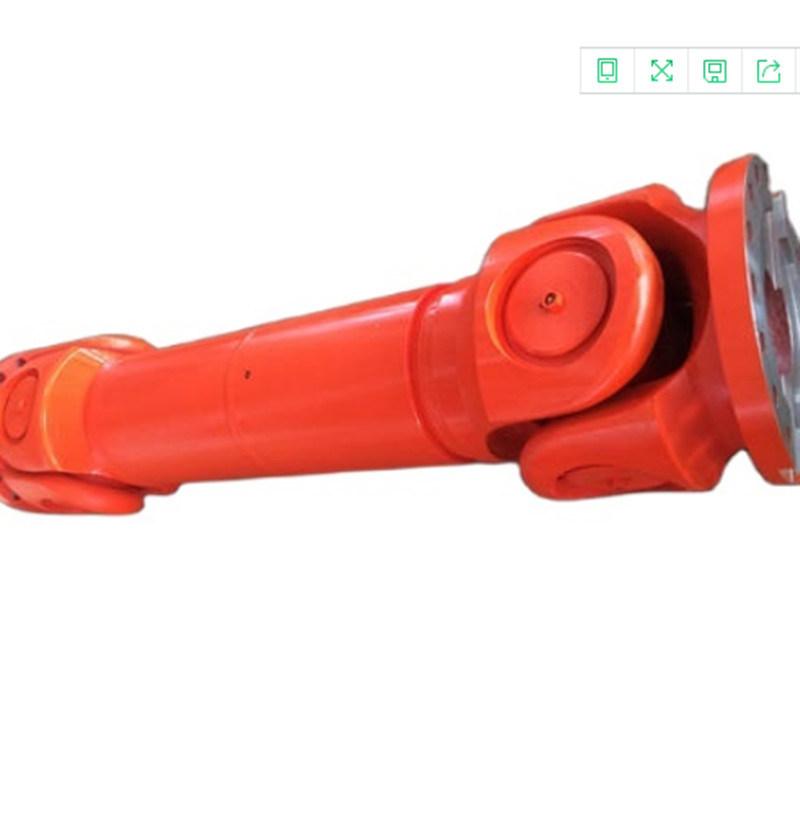

Universal Joint/Cardan Shaft for Steel Mill
Nanjing Kaihong Healthcare Co., Ltd.- Condition：New
- Color：as Required
- Type：Universal Joint
- Material：Carbon Steel or as Required
- Size：Standard Size
- Application：Tractors, Trucks and Agricultural Use
Base Info
- Model NO.：SWC
- Dimension：Minimum Overall Length: 600-1800mm or 27"-60"
- Ournal Surface Roughness：0.25-0.63μm
- Length Compensation：Telescoped
- Mounting：Flange or as Per Required
- Body Material：Carbon Steel or as Required
- Appearance Shape：Round
- Specification：as your requirement
- Trademark：Huading
- Origin：China
- HS Code：8483600090
- Production Capacity：100000pieces,Year
Description
Overview

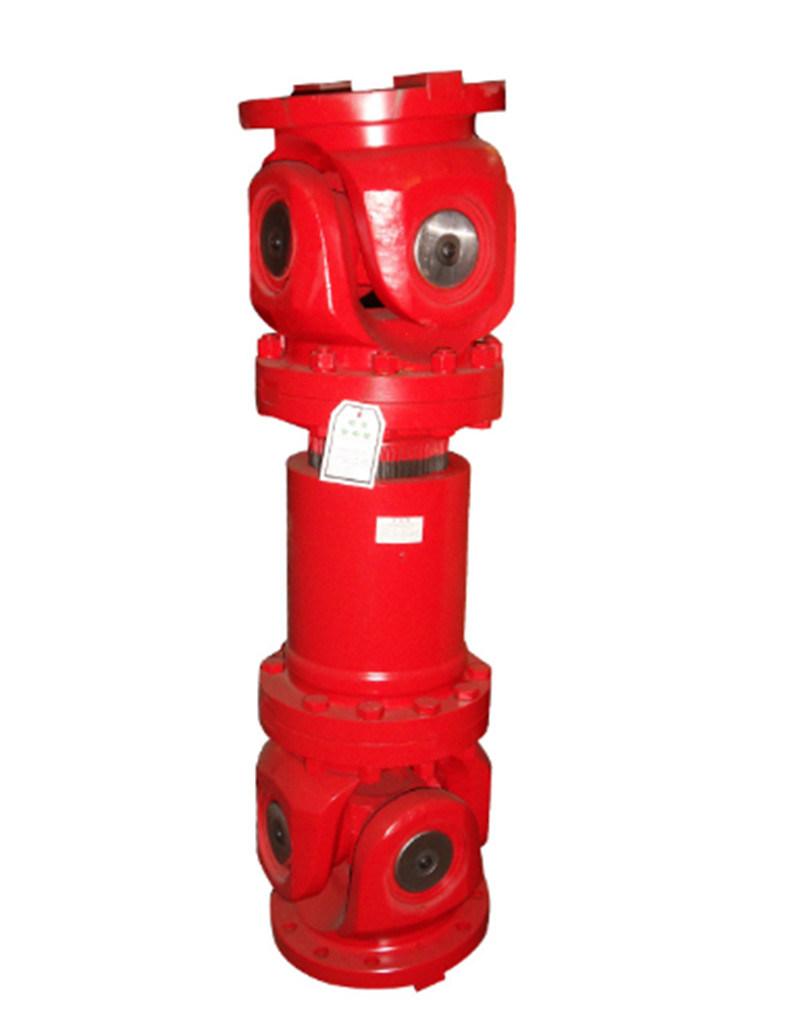

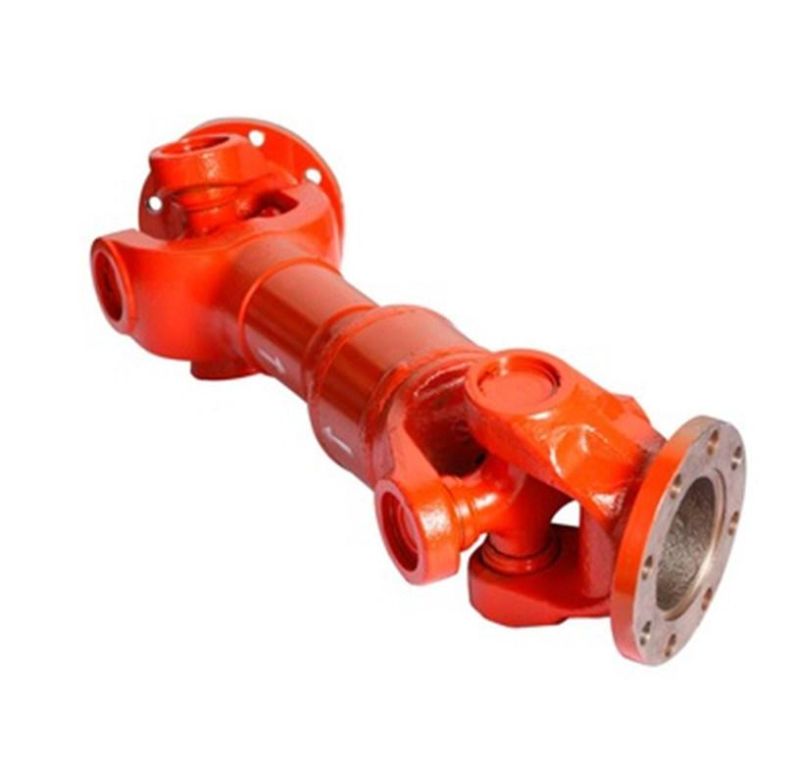

Detailed Photos
NO
D
mm
Tn
kN.m
Tf
kN.m
β Size Rotational inertia
kg.m2 M
kg LS
mm Lmin D3 Lm Lmin Increase 100mm Lmin Increase 100mm SWC180BF 180 20 10 ≤25 100 810 114 110 0.267 0.0070 80 2.8 SWC225BF 225 40 20 ≤15 140 920 152 120 0.778 0.0234 138 4.9 SWC250BF 250 63 31.5 ≤15 140 1035 168 140 1.445 0.0277 196 5.3 SWC285BF 285 90 45 ≤15 140 1190 194 160 2.873 0.0510 295 6.3 SWC315BF 315 125 63 ≤15 140 1315 219 180 5.094 0.0795 428 8.0 SWC350BF 350 180 90 ≤15 150 1410 267 194 9.195 0.2219 632 15.0 SWC390BF 390 250 125 ≤15 170 1590 267 215 16.62 0.2219 817 15.0 SWC440BF 440 355 180 ≤15 190 1875 325 260 28.24 0.4744 1290 21.7 SWC490BF 490 500 250 ≤15 190 1985 325 270 46.33 0.4744 1631 21.7 SWC550BF 550 710 355 ≤15 240 2300 426 305 86.98 1.3570 2567 34.0 SWC620BF 620 1000 500 ≤15 240 2500 426 340 147.50 1.357 3267 34.0
FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
Product Description
Detailed Photos
Product Parameters
D
mm
Tn
kN.m
Tf
kN.m
β
kg.m2
kg
mm
Company Profile
After Sales ServiceFAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
