• Model NO.：SMLN-100W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Distance Between Poles：10-15m
• Pole Height：5m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：75,80,85,90
• Working Lifetime(Hour)：10000
• Beam Angle：150*70°
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m²
• Transport Package：Carten
• Specification：630X405X75mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-100W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Distance Between Poles 10-15m Pole Height 5m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 75/80/85/90 Working Lifetime(Hour) 10000 Beam Angle 150*70° Working Mode Full Power and Dim Mode Lighting Area 100m² Transport Package Carten Specification 630X405X75mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

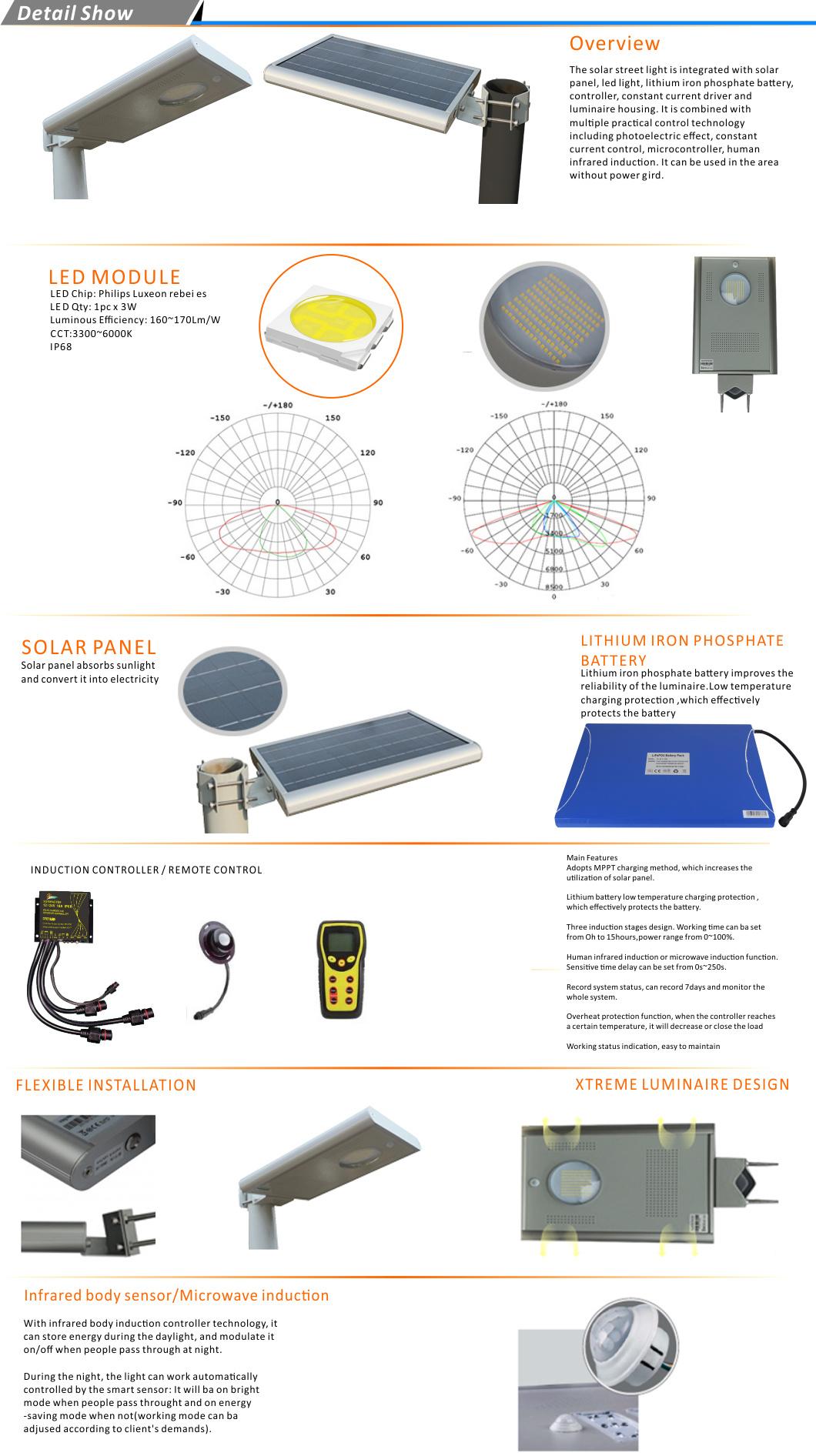

1.Consisting of solar panel,battery,controller and LED light.
2.Large capacity lithium battery,standby time is longer by PIR sensor.

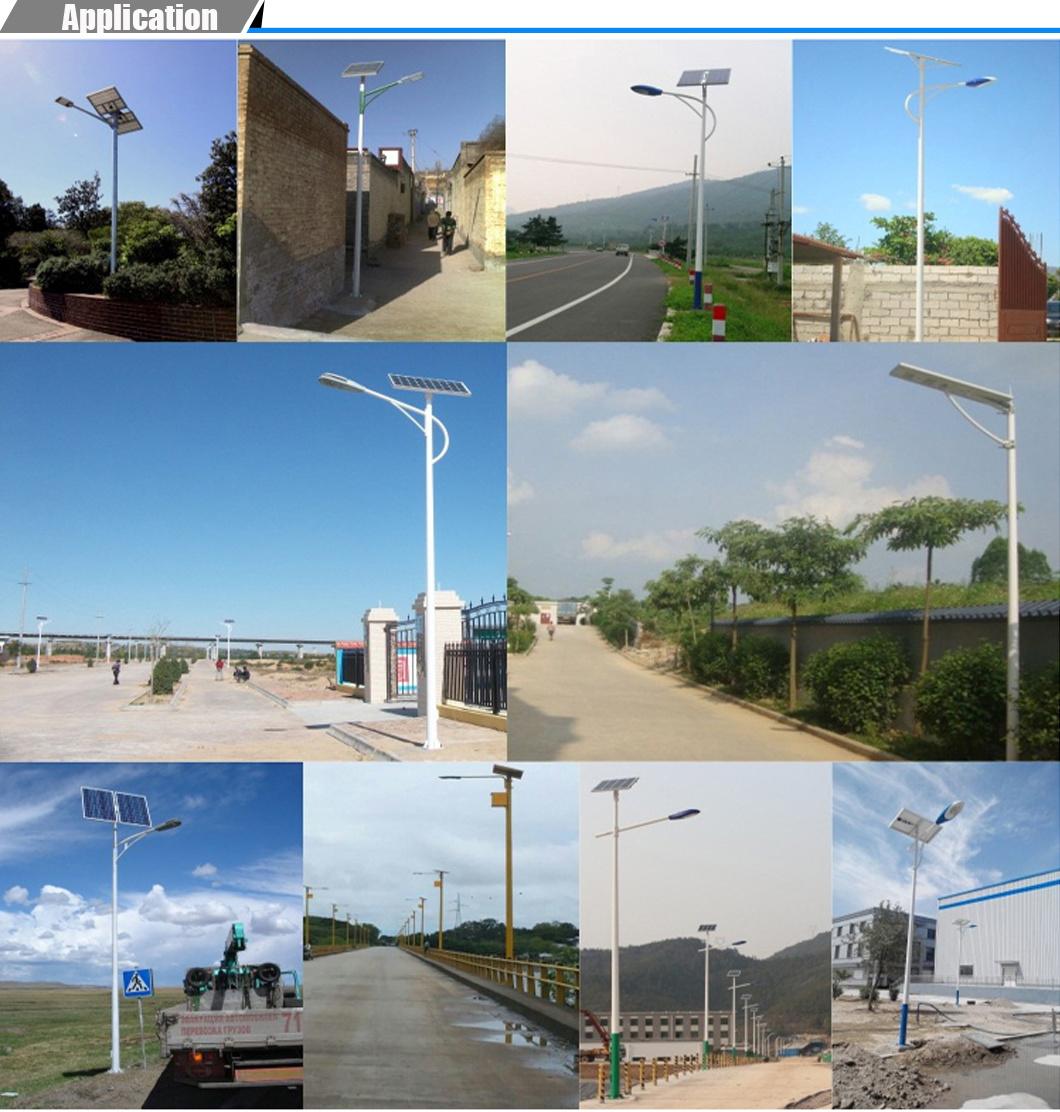

3.Can be installed in public road,private garden,villiage road,parking lot,walkway etc.
4.High illumination flux up to 180lm/watt.

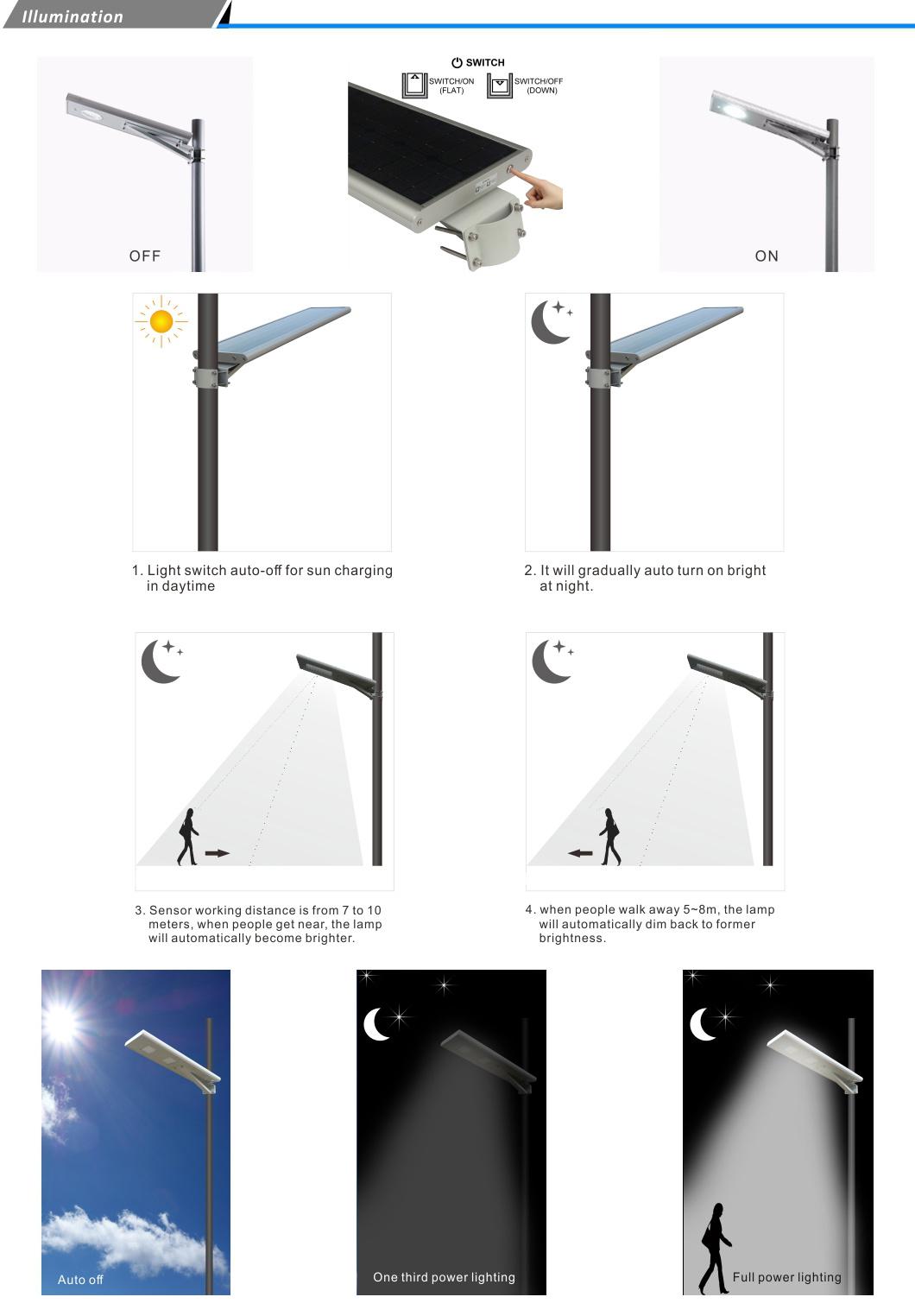

5.MPPT Controller  built in PIR motion sensor.

Model NO.	SMLN-10W	Battery Type:	LiFePO4 7Ah/12.8V
Power:	10W	Charging Time:	6-10 hours
Color Temperature:	2700K-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	580*295*75mm
Viewing Angle:	120	Packing Dimension:	650*360*140
Working temperature :	,-20 ~ +70	Product Weight	5.5KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	3-5 m
Solar Panel:	18V 25W Mono-crystalalline	Warranty:	3 years
