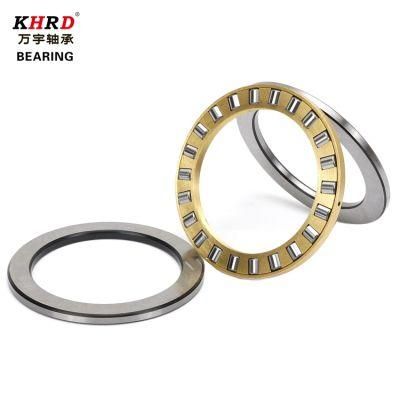

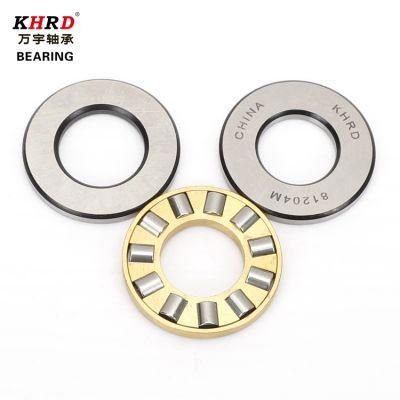

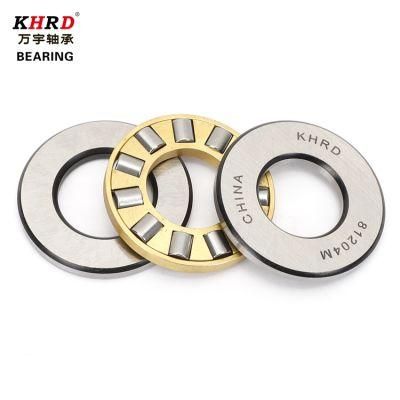

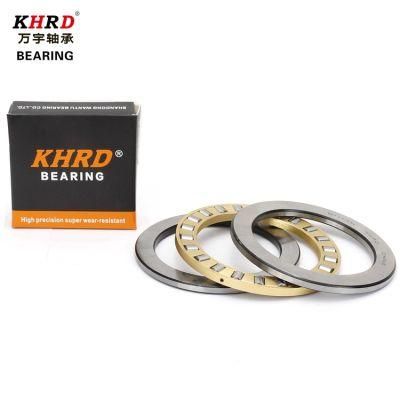

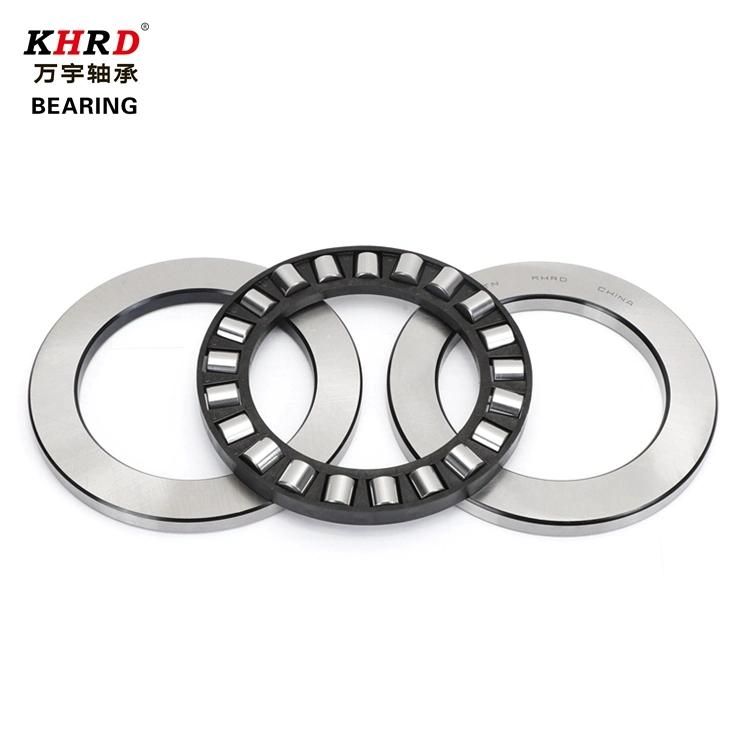

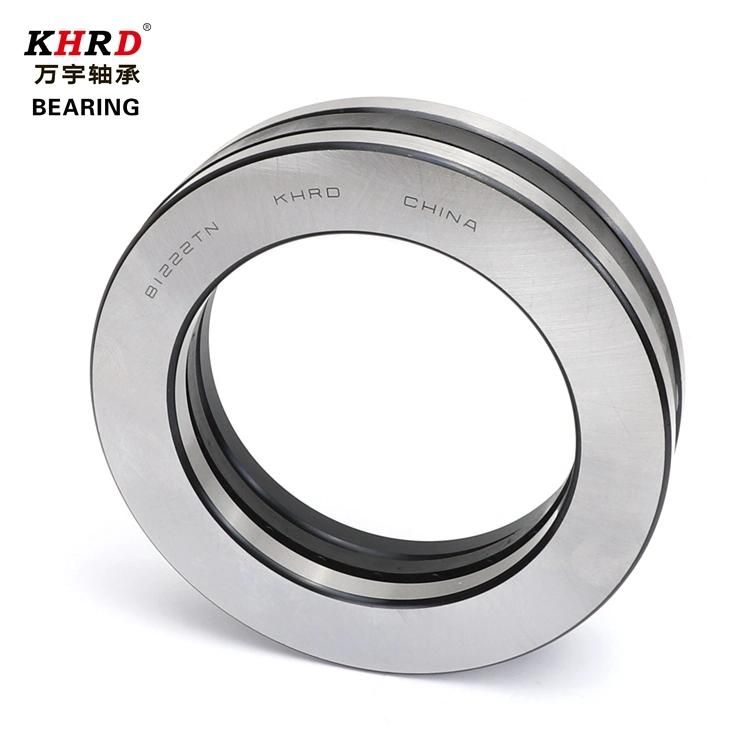

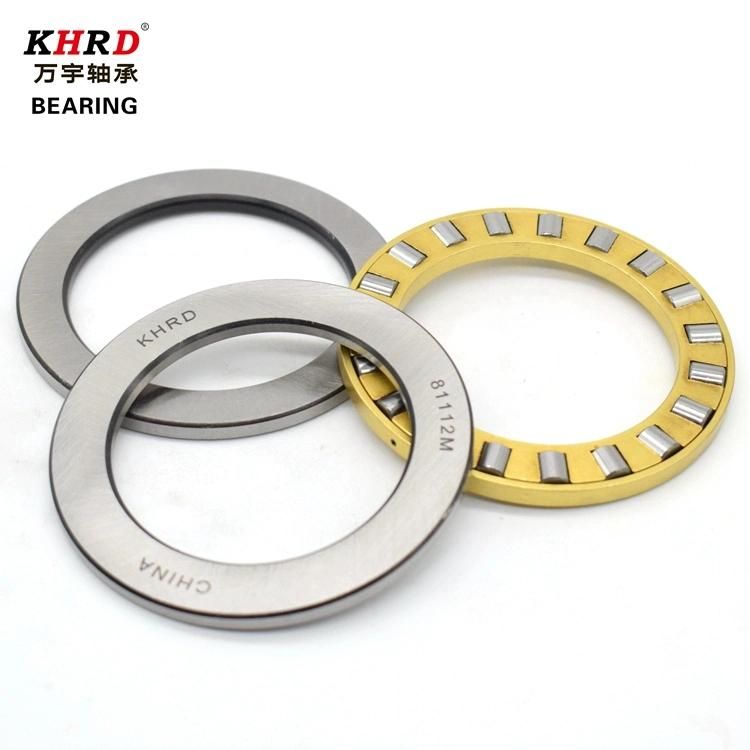

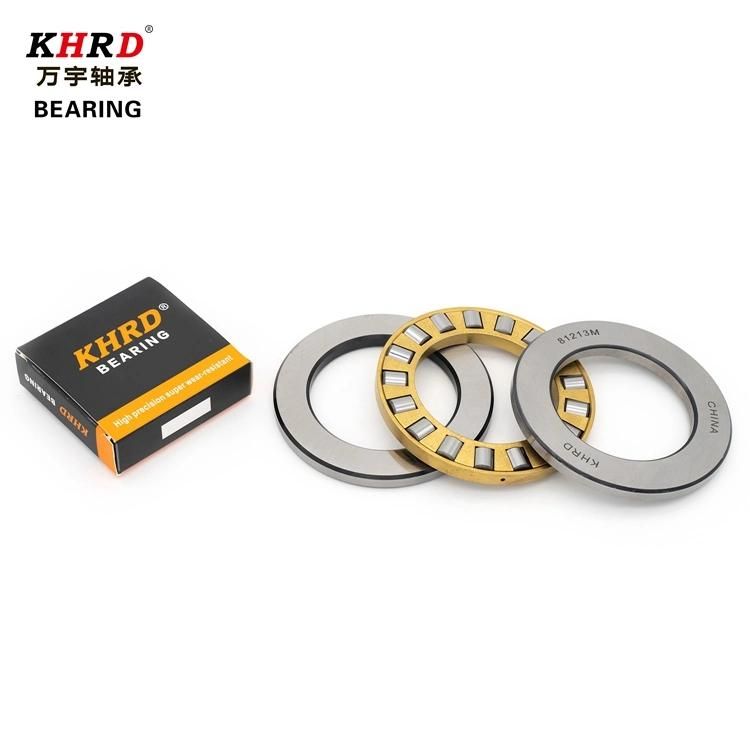

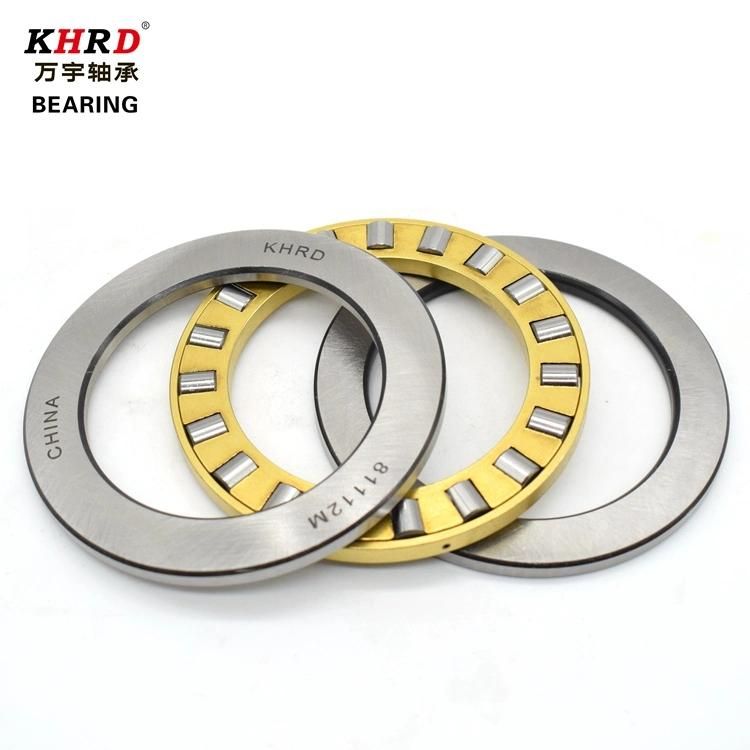

Large Size Khrd Thrust Roller Bearing 81230 81232 81230m 81232m Rolling Bearing with Catalog
Hangzhou Xunda Packaging Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Thrust Bearing
Base Info
- Model NO.：81230M 81232M
- Separated：Separated, Unseparated
- Aligning：Non-Aligning Bearing
- Rows Number：Single
- Contact Angle：90°
- OEM：Accept
- Application：Agricultural Machinery, Automobile, Tractor
- Transport Package：Plastic Tube+Carton+Pallet
- Specification：150*215*50mm
- Trademark：KHRD
- Origin：China
- HS Code：848210200
- Production Capacity：100000pieces,Month
Description
Speed(r/min)Weight D(mm) D(mm) W(mm) Cr(N) Cor(N) Oil Grease kg 81206 30 52 16 64 141 7200 1230 0.123 81207 35 62 18 80 199 6000 1950 0.195 81208 40 68 19 107 265 5200 2490 0.249 81209 45 73 20 105 265 4950 2870 0.287 81210 50 78 22 118 315 4550 3560 0.356 81211 55 90 25 155 405 4050 5680 0.568 81212 60 95 26 172 480 3700 6420 0.642 81213 65 100 27 177 500 3550 7210 0.721 81214 70 105 27 187 550 3250 7680 0.768 81215 75 110 27 173 500 3150 800 0.8 81216 80 115 28 201 630 2900 900 0.9 81217 85 125 31 217 660 2800 1260 1.26 81218 90 135 35 290 890 2550 1770 1.77 81220 100 150 38 340 1080 2300 2200 2.2 81222 110 145 25 325 1030 2150 2300 2.3 81224 120 170 39 320 1030 2000 2540 2.54 81226 130 190 45 480 1520 1820 3980 3.98 81228M 140 200 46 455 1450 1690 5007 5.07 81230M 150 215 50 590 1940 1580 7017 7.17 81232M 160 225 51 600 2030 1500 7006 7.6 81234M 170 240 55 680 2340 1400 1930 9.3 81236M 180 250 56 700 2440 1340 1990 9.9 81238M 190 270 62 880 3000 1250 1208 12.8 81240M 200 280 62 900 3150 1190 1402 14.2 81244M 220 300 63 950 3450 1100 1503 15.3 81248M 240 340 78 1370 5000 970 2602 26.2 81252M 260 360 79 1440 5400 910 2806 28.6 81256M 280 380 80 1460 5600 860 1310 31 81260M 300 420 95 1930 7300 780 825 48.25 81264M 320 440 95 1560 7500 780 1485 48.5 81268M 340 460 96 1630 8000 740 1528 52.8 81272M 360 500 110 2160 10400 700 1655 65.5 81276M 380 520 112 2200 10800 660 1797 79.7
If you want to know more details, please contact us.
