• Model NO.：P1.923 indoor led display
• System Operating Platform：Windows XP , Windows 7 , Windows 8 ,8.1 , Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Exhibition
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, FCC
• LED Lamp：Nationstar,Kinglight,Epistar
• Driving IC：Mbi5124
• Cabinet Size：400*300mm
• Refresh Rate：1920-3840Hz
• Display Contrast：2000:1
• Frame Rate：60Hz,S
• Service Life：100000h
• Use Voltage：AC 90-240V
• Operating Voltage：DC5V
• Maximum Power Consumption：600W,M2
• Transport Package：Carton,Case
• Specification：200mm*150mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：350000

High Definition P1.923 Small Pixel LED Display Screen for Rental is on sale ,this month.
Features:
1, Adopting SMD1010 LEDs,Big viewing angle(>140°H;>140°W) ,with a nice flatness appearance of led screen;

2,Hight brightness>1200CD/SQM(adjustable), The people can see the video/pictures under the sun.

3, Die-casting aluminum molding. Tiny splicing gap, lighter weight(about 8kg) & ultra-thin cabinet.

4,With waterproof glue appearance. Front /rear side IP43, which can be used  indoor.

5,Joint,stacking up and hoisting easily & quickly with fast locks.

Product name	P1.5625 indoor	P1.667 indoor	P1.923 indoor	P2 indoor
LED Type	SMD1010 Black	SMD1010 Black	SMD1010 Black	SMD1010 Black
Pixel Density/m2	409600 dots	360000 dots	270400 dots	250000 dots
Brightness	≥1000cd/m2	≥1000cd/m2	≥1000cd/m2	≥1000cd/m2
Half-bright angle  (horizontal / vertical)	140°/ 70°	140°/ 70°	140°/ 70°	140°/ 70°
Viewing angle  (horizontal / vertical)	160°/ 140°	160°/ 140°	160°/ 140°	160°/ 140°
Refresh frame frequency	≥ 2000 Hz/s	≥ 2000 Hz/s	≥ 2000 Hz/s	≥ 2000 Hz/s
Frame Rate	60Hz/s	60Hz/s	60Hz/s	60Hz/s
Number of colors	16bit	16bit	16bit	16bit
Driver Mode	1/32 S	1/30 S	1/26 S	1/16 S
Discrete control point	≤0.1‰	≤0.1‰	≤0.1‰	≤0.1‰
Cell plate resolution  (L * H) dots	128*64	32X16	78*104	64*64
Cell plate Size  (L * H)	200*100 mm	200*150mm	200*150 mm	128*128 mm
Transfer board	hub75	hub75	hub75	hub75
Operating Voltage	AC 90-240V ,  50-60 Hz	AC 90-240V ,  50-60 Hz	AC 90-240V ,  50-60 Hz	AC 90-240V ,  50-60 Hz
Life time	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Working temperature	-20~50ºC	-20~50ºC	-20~50ºC	-20~50ºC
Working environment  humidity	10%~90%	10%~90%	10%~90%	10%~90%
Operating System	WindowsXp/  Windows 7/ Windows 8/ Windows 8.1/ Windows 10	WindowsXp/  Windows 7/ Windows 8/ Windows 8.1/ Windows 10	WindowsXp/  Windows 7/ Windows 8/ Windows 8.1/ Windows 10	WindowsXp/  Windows 7/ Windows 8/ Windows 8.1/ Windows 10
Control method	Synchronize with the video source	Synchronize with the video source	Synchronize with the video source	Synchronize with the video



Parameter	P3.91 indoor	P4.81 indoor	P4.81 outdoor	P5.95 outdoor	P6.25 indoor	P6.25 outdoor
Pixel pitch	3.91mm	4.81mm	4.81mm	5.95mm	6.25mm	6.25mm
LED Type	SMD2121 Black	SMD2121 Black	SMD2727	SMD2727	SMD3528 White	SMD3535
Scan Styple	1/16	1/13	1/13	1/11	1/10	1/10
Pixel Density	65,410	43,222	43,222	30,995	25,600	25,600
Module size(mm)	250W * 250H
Panel Size(mm)	500 W*1000 H	500 W*1000 H	500 W*500 H	500 W*500 H	500 W*500 H	500 W*500 H
Refresh rate	>2000Hz	>2000Hz	>2000Hz	>2000Hz	>2000Hz	>2000Hz
Brightness	>1300Nits	>1300Nits	>6000Nits	>6000Nits	>1600Nits	>5000Nits
Max Power/ panel	360W	360W	360W	360W	360W	360W
Weight per cabinet	about 7Kg	about 7Kg	about 8Kg	about 8Kg	about 7Kg	about 8Kg
Best viewing distance	≥4m	≥4.8m	≥4.8m	≥5.95m	≥6.2m	≥6.2m
Cabinet material	Die-casting aluminum
Operating temperature	-30ºC----+60ºC
Operating humidity	10%---%95RH
Operating system	Windows XP / Windows 7 /Windows8 /Windows8.1/Windows 10

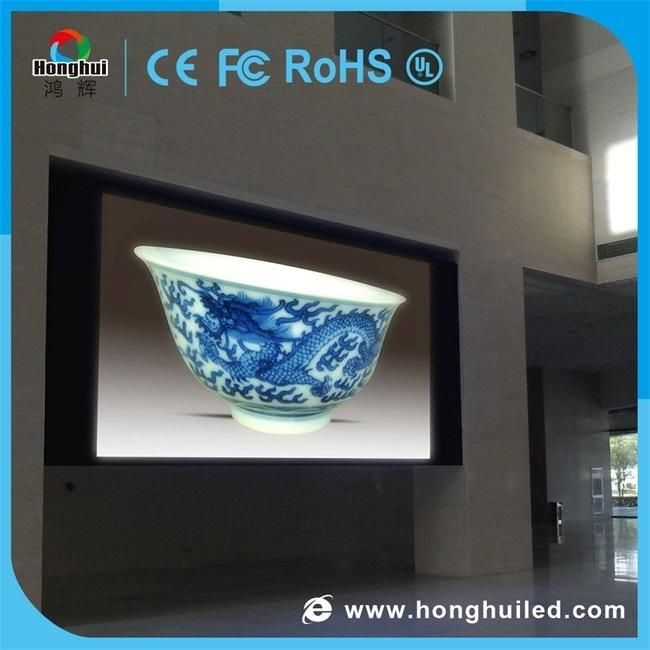

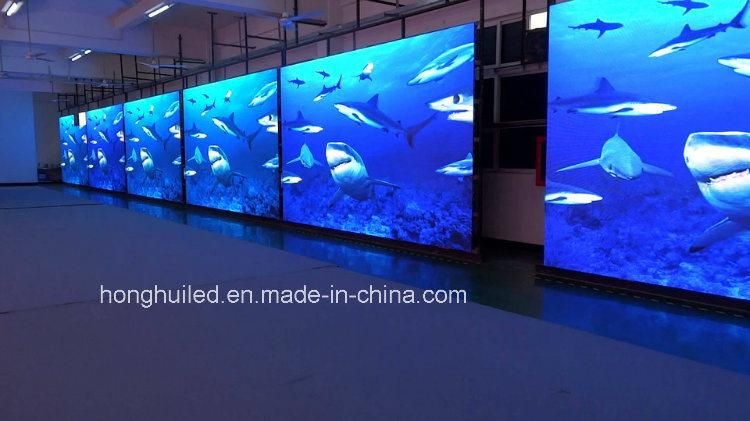

2.Product Detailed Photos :

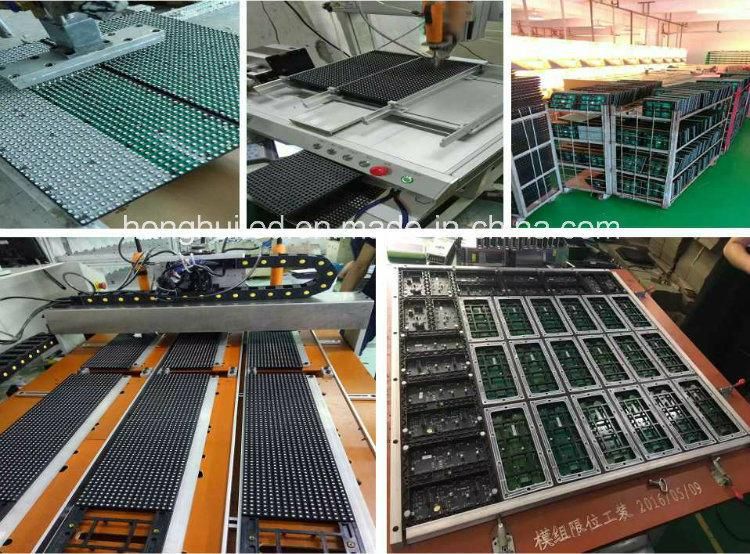

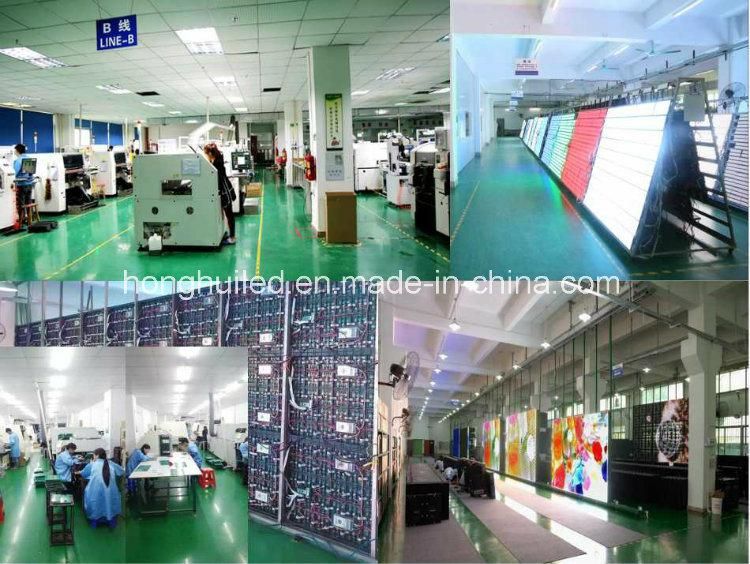

3.Our HONGHUI Factory :



4.Our HONGHUI Team : 1).Price :We can give you the most satisfying price ,because we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry .Once the market change ,we will flexibly adjust the price and timely notify everyone of you about our update price. YOU WANT = WE DO .First time trial order will let you strongly shake hands with us . We warmly welcome any kind quality inspection process from your team .

2).Quality : We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .

3).Production : Support Any Kind Special Customized Design . YOU NEED =WE DESIGN .We design exactly the same material you mentioned with our team in the sales contract and business negotiation process . We are direct factory ,if your led project time is definitely fixed , with no any change , We will arrange your order firstly to catch up with your time . MEET YOUR TIME = SUPPORT OUR TEAM .

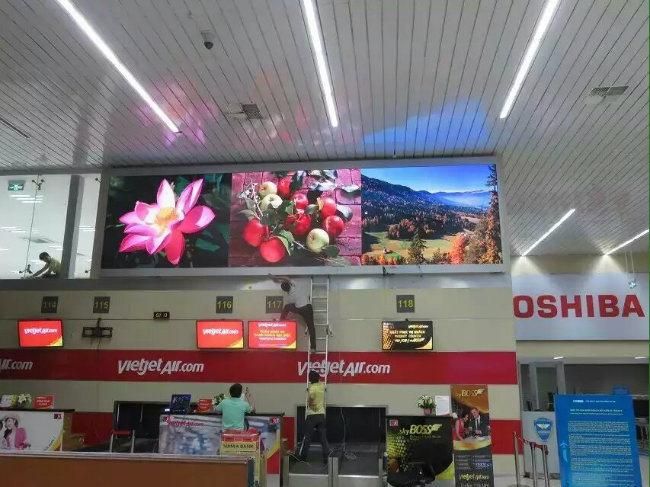

6.Application:





7. FAQ :Q1:Are you a factory or just a trade company?
A1:Our HONGHUI is a led display factory with R&D department and production line,professional engineering team and energetic sales team.Warmly welcome to visit our HONGHUI factory and have face-to-face business talk to better understand each other .Or when you are free ,we can have SKYPE VIDEO TALKING ,and show our HONGHUI factory.

Q2:Can you tell me why I should choose your company ?
A2:Concentration makes professional .Professional achieves successful .
Our HONGHUI have 8 years professional led technical experience .We are 5 years gold supplier for China government led project .Now ,we are largely expanding our international market.From 2009 to 2017, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .

Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 96360hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.


Q4: What's your payment term? How long is your delivery time ?
A4: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.

Q5:How can I get technical support?
Q5: We treasure every customer that shake hands with our HONGHUI . We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .

Q6: What about your service?
A6: We have a professional 8 years technical team answering your question during 6:00-23:30. We have an energetic and patient sales team .We can offer a complete LED design solution for your LED project before confirming the order .
    We can instruct you how to use, configure your led display , and do some maintenance with spare parts.
    Also, we can send professional engineer to your city to offer on-site guide and offer training.Mostly,our led display do not have big problems within warranty time.

Q7: Is Available to print customer required logo on your led product ?
A7: Surely it is .Please inform and confirm the logo design details with our team ahead of the production . Then ,we will follow your requirements .
 If you want to know more , you can freely contact Our HONGHUI Team . -:)
