• System Operating Platform：WIN2000
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS
• Name：Best Sell 4K@60Hz HDMI2.0 Matrix Switcher
• Video：HDMI DVI VGA YPbPr SDI AV Fiber Hdbaset
• Input Max：256
• Output Max：256
• Switching：Seamless
• 4K Resolution：Optional
• Transport Package：Carton
• Production Capacity：1000sets,Months

Basic Info.

System Operating Platform WIN2000 Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS Name Best Sell 4K@60Hz HDMI2.0 Matrix Switcher Video HDMI DVI VGA YPbPr SDI AV Fiber Hdbaset Input Max 256 Output Max 256 Switching Seamless 4K Resolution Optional Transport Package Carton Production Capacity 1000sets/Months

Product Description

1. Product name

best sell 4k@60hz HDMI2.0 matrix switcher with seamless switching and video wall function

2. Description

Traditional video matrix will generate flashing, black, jitter, delay and signal interruption and other shortcomings in switching process. HC2000, the new seamless hybrid switching matrix, has completely overcome the shortcomings of traditional matrix, with no flicker, no black, no delay and no signal interruption in switching process. And it can achieve the input and output of CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT and optical fiber.

3. Specifications

Full-digital switching, Available input and output for any signal
eal-time seamless switching, Adaptive input resolution, adjustable output resolution
HDMI interface, compatible with DVI1.0 and HDMI1.4, support HDCP1.2, support Blu-ray player and support DeepColor
Digital processing of analog input for CVBS, VGA and YPbPr, ADC sampling frequency up to 205Mhz, 24-bit internal image processing, true color reproduction, the highest resolution up to 1920x1200@60Hz;
CVBS input integrates advanced 3D adaptive comb filter and de-interlace processing, automatic identification for PAL, NTSC
DI input, supports 3G/HD/SD-SDI, the rate of 143Mbps ~ 2.97Gbps, compatible with serial video standards, e.g. SMPTE 259M, 292M, 344M, 424M, ITU R BT.601, ITU R BT.1120
Support input and output of analog audio
Support SDI audio embedding and de-embedding (SMPTE291)

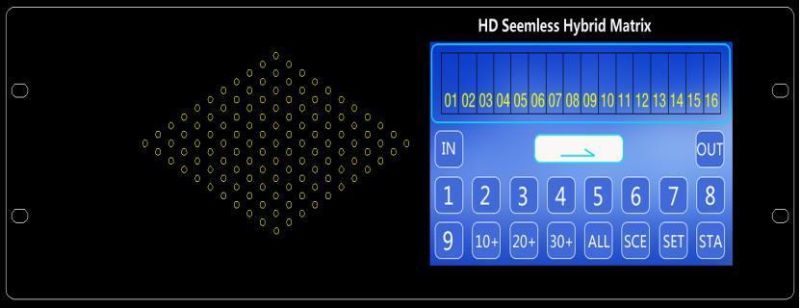

4.3 inch (32x32) /9.7 inch (72x72), touch-screen operation, beautiful and fast
Support scene store and recall.
Support RS232 and Ethernet control, open control protocol, beneficial for third-party serial control
Support site protection when power off;
Standard plug-in industrial cabinet, 1 card and 4 channels
1+1 redundant power supply (optional)

4. Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
