• Model NO.：GMVR090
• Type：Worm Gear Box
• Transport Package：Carton Box
• Specification：aluminum, iron, copper
• Trademark：Hanzel
• Origin：China
• HS Code：8483409000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. GMVR090 Type Worm Gear Box Transport Package Carton Box Specification aluminum, iron, copper Trademark Hanzel Origin China HS Code 8483409000 Production Capacity 50000PCS/Year

Product Description

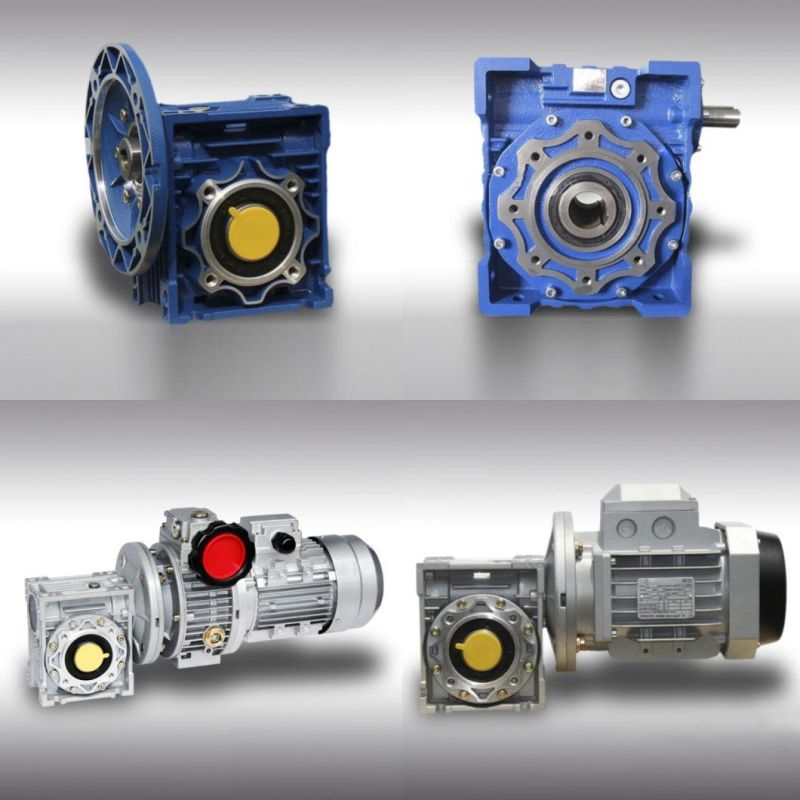

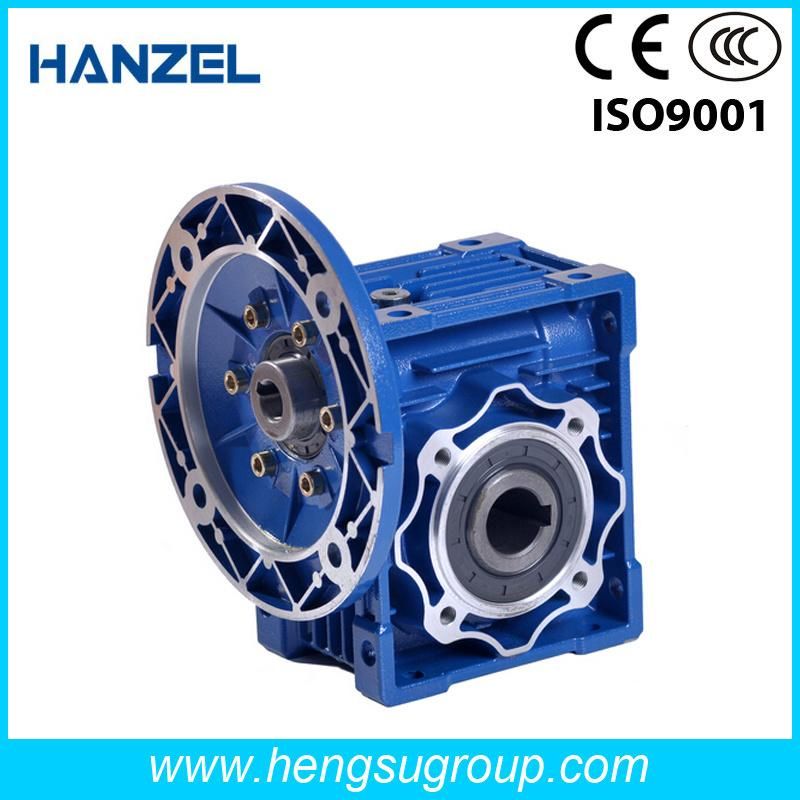

GMRV Series Worm Motor reducers


Product features of GMRV worm gearbox



1. GMRV series worm gearbox adopt aluminium alloy or cast iron square housing, small size and elegant appearance.

2. It is flexible and convenient to install,steady running,efficent radiator,low noise,high carrying ability.

3. The products have been widely used for machinery equipment, such as  chemical, plating, ceramic, pharmaceutical, leather, foods,beverage,etc.



+Input form: flange input, motor input, shaft input;

+Output form:hollow shaft, solid shaft or output flange;

+Materials of speed reducer body: Aluminum alloy or cast iron;

+Materials of worm-wheel: ZCuSn10Pb1;

+Noise of speed reducer: ≤50dB;

Parameters:

Models	Rated Power	Rated Ratio	Input Hole Dia.	Input Shaft Dia.	Output Hole Dia.	Output Shaft Dia.	Center Distance
RV025	0.06KW~0.12KW	5~60	Φ9	Φ9	Φ11	Φ11	25mm
RV030	0.06KW~0.25KW	5~80	Φ9(Φ11)	Φ9	Φ14	Φ14	30mm
RV040	0.09KW~0.55KW	5~100	Φ9(Φ11,Φ14)	Φ11	Φ18(Φ19)	Φ18	40mm
RV050	0.12KW~1.5KW	5~100	Φ11(Φ14,Φ19)	Φ14	Φ25(Φ24)	Φ25	50mm
RV063	0.18KW~2.2KW	7.5~100	Φ14(Φ19,Φ24)	Φ19	Φ25(Φ28)	Φ25	63mm
RV075	0.25KW~4.0KW	7.5~100	Φ14(Φ19,Φ24,Φ28)	Φ24	Φ28(Φ35)	Φ28	75mm
RV090	0.37KW~4.0KW	7.5~100	Φ19(Φ24,Φ28)	Φ24	Φ35(Φ38)	Φ35	90mm
RV110	0.55KW~7.5KW	7.5~100	Φ19(Φ24,Φ28,Φ38)	Φ28	Φ42	Φ42	110mm
RV130	0.75KW~7.5KW	7.5~100	Φ24(Φ28,Φ38)	Φ30	Φ45	Φ45	130mm
RV150	2.2KW~15KW	7.5~100	Φ28(Φ38,Φ42)	Φ35	Φ50	Φ50	150mm
