P10 Outdoor DIP346 LED Video Wall for Advertising 7000CD/M2
Yuhuan Green Island Plastic Packaging Factory- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：LW-FO 10
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Pixel Configuration：1r1g1b DIP346
- Module Size：160X160
- Cabinet Size：960X960X180
- Cabinet Weight：58kg
- Brightness：More Than 7000CD,M2
- Viewing Distance：>16m
- Viewing Angle：H: 110 V: 60
- Cabinet Material：Cold Rolled Steel or Aluminum
- Display Capability：Text, Graph and Video
- IP Rate：Front IP65
- Transport Package：Wooden,Case Carton Box or as Required
- Specification：CE UL Rohs etc
- Trademark：LED World, OEM, ODM
- Origin：Made in China
- HS Code：8528591090
- Production Capacity：10000sqm Per Moth
Description
After sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30oC and 60oC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

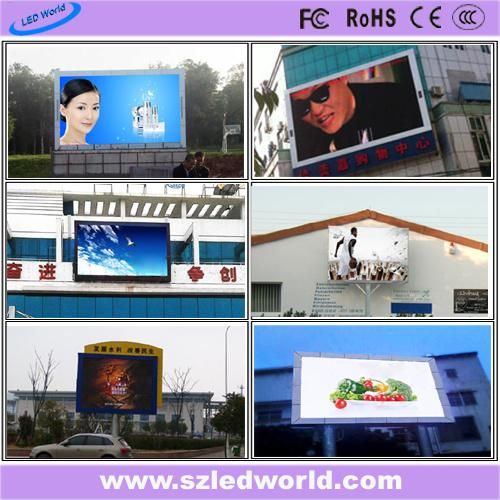

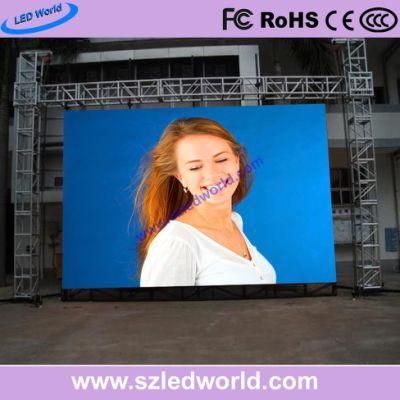

Project case:

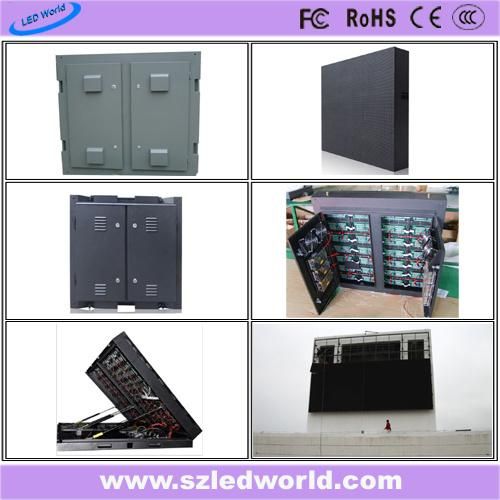

product detail:

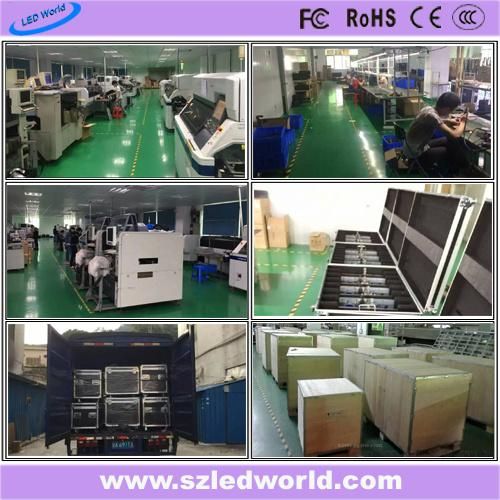

Workshop:
