• Model NO.：LX-90-45
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Size：9344*6396*4100mm(L*W*H)
• Inside Size：9200*4500*3500mm(L*W*H)
• Entrance Door：3 Folds Main Door,3500*3400mm(W*H)
• Emergency Door：800*2000mm(W*H)
• Wall Panel：50,75mm EPS
• Fan System：Centrifugal Fan
• Heating System：Diesel,Gas,Electrical Heating
• Burner：Riello Burner
• Lighting System：LED Lighting
• Color：White,Orange,Red,Blue
• Total Power：30.5kw
• Voltage/Frequency：380V,50Hz,3 Phase
• Filter：Floor Filter,Pre-Filter,Ceiling Filter
• Usage：Bus Painting Baking

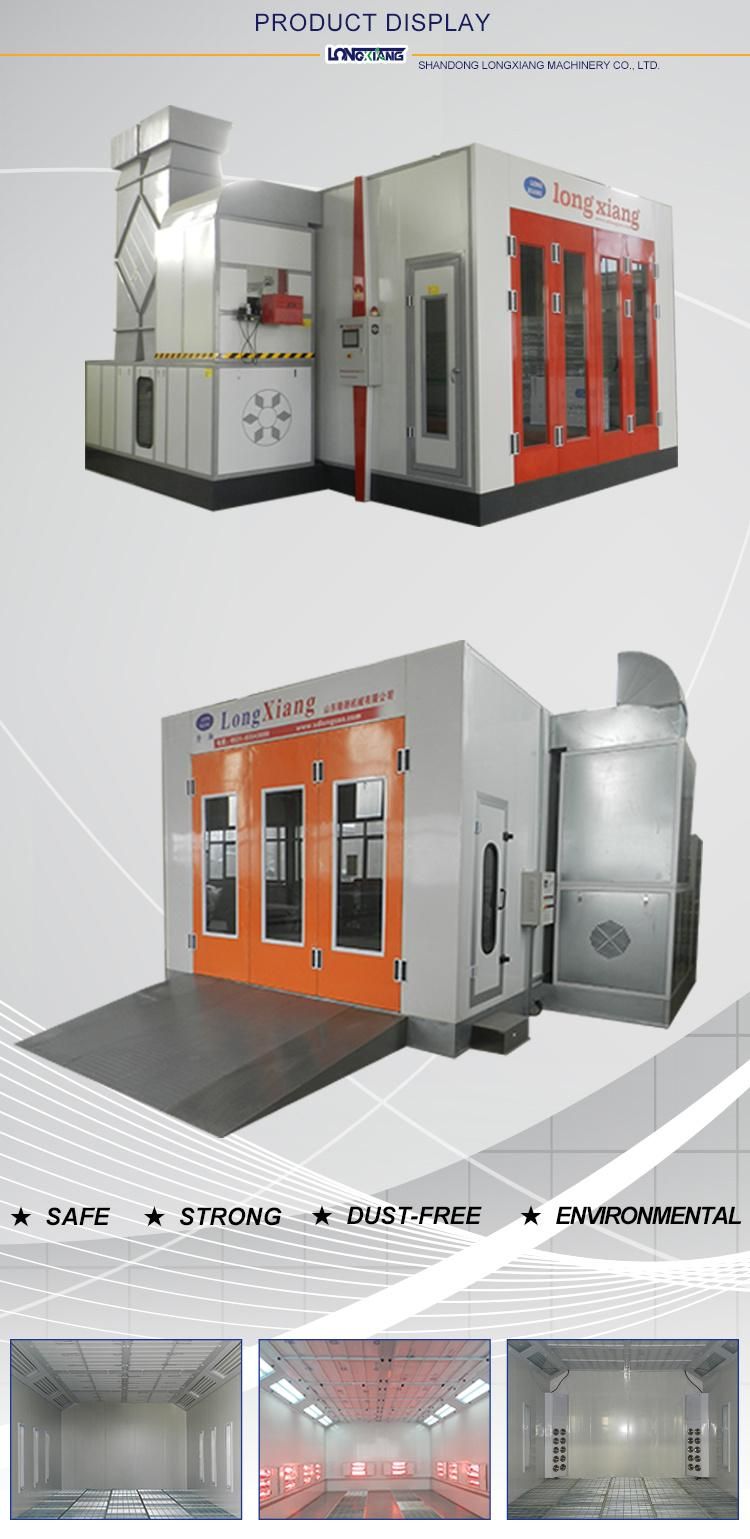

• Product Name：Spray Booth
• Transport Package：Shipping
• Specification：9200*4500*3500mm(L*W*H)
• Trademark：longxiang brand
• Origin：China
• HS Code：8419899090
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. LX-90-45 Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Size 9344*6396*4100mm(L*W*H) Inside Size 9200*4500*3500mm(L*W*H) Entrance Door 3 Folds Main Door,3500*3400mm(W*H) Emergency Door 800*2000mm(W*H) Wall Panel 50/75mm EPS Fan System Centrifugal Fan Heating System Diesel/Gas/Electrical Heating Burner Riello Burner Lighting System LED Lighting Color White/Orange/Red/Blue Total Power 30.5kw Voltage/Frequency 380V,50Hz,3 Phase Filter Floor Filter/Pre-Filter/Ceiling Filter Usage Bus Painting Baking Product Name Spray Booth Transport Package Shipping Specification 9200*4500*3500mm(L*W*H) Trademark longxiang brand Origin China HS Code 8419899090 Production Capacity 30 Sets/Months

Product Description



Inside Dimension	9200*4500*3500mm(L*W*H)
Outside Dimension	9344*6396*4100mm(L*W*H)
Wall Panel	Thickness:70mm,width:1150mm,tongue and groove interlock structure,with polystyrene(EPS) insulation inside, colour:white
Doors	Folding door,3 folds main door,3500*3400mm(W*H),galvanized steel cover frame,with polystyrene(EPS) insulation inside,colour:blue,escape door:1 unit,800*2000mm(W*H),colour:white
Basement	Without basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 6900*760mm(L*W),with galvanized grilles made by twisted steel and flat bar above
Intake air system	2*7.5KW double-intake centrifugal fans for intake air,model is YDW4.5M,total air capacity is 42000m³/h
Exhaust air system	1*11KW double-intake centrifugal fans for exhaust air, external motor, belt-drive,model TAE-710H,air capacity is 36000m³/h
Damper actuates	Manual damper actuates from spraying to baking cycle,manual damper for exhaust air
Heating system	RIELLO RG5S diesel burner,stainless steel heat exchanger.Max. heating productivity:260000Kcal/h.Max.working temperature:80ºC
Filter system	Pre-filter,ceiling filter,exhaust fiberglass filter,activated carbon filter
Filtering area	31m2
Lighting system	Ceiling lights:12 units*4pcs=48pcs*36W,with electronic ballasts. Side lights:12 units*4pcs=48pcs*36W,with electronic ballasts
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,thermostat, power supply switch, emergency stop, amperemeter, voltmeter,hour meter,temperature limit controller,pressure gauge,exhaust reduction voltage motor start
Total power	30.5KW
