Truck Single Convoluted Industrial Air Springs Goodyear 1b9-202 Air Bags
Lin Yi Ben Ben International Trade Co., Ltd.- After-sales Service：1 Year
- Part：Air Spring
- Position：Front,Rear
- Type：Gas-Filled
- Spring Type：Air Spring
- Spring Material：Rubber
Base Info
- Model NO.：1B9-202
- Structure：Single Cylinder
- Brand：Guomat or Neutral
- Damping Force Direction：Bidirectional
- Condition：Brand-New
- Sample：Available
- Function：Reduce Shock
- Quality：100% Tested
- Transport Package：Cartons
- Trademark：GUOMAT
- Origin：Guangzhou
- HS Code：8708809000
- Production Capacity：5000PCS,Month
Description
Product Top Parameter
Top cover plate diameter:160mm
Screw center distance of top cover plate:89mm
Screw and Air hole distance of top cover plate:44.5mm
Air hole:1/4-18NPTF
Top cover plate screw(nut)tooth:2x3/8-16UNC
Top cover plate diameter:160mm
Product Bottom Parameter
Screw center distance of bottom cover plate:89mm
Bottom cover diameter:160mm
Bottom cover plate screw(nut)tooth:2x3/8-16UNC
Rubber Bellows
Rubber bellows MAX diameter:222mm
The working stroke:MAX 160mm to MIN 60mm
Maximum height:160mm
Minimum height:60mm
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
- The products features low cost, wide use and easy operation.
- It achieves long service life, and requires no maintenance and lubrication.
- This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
- It comes with no friction and soft medium.
Company Information
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

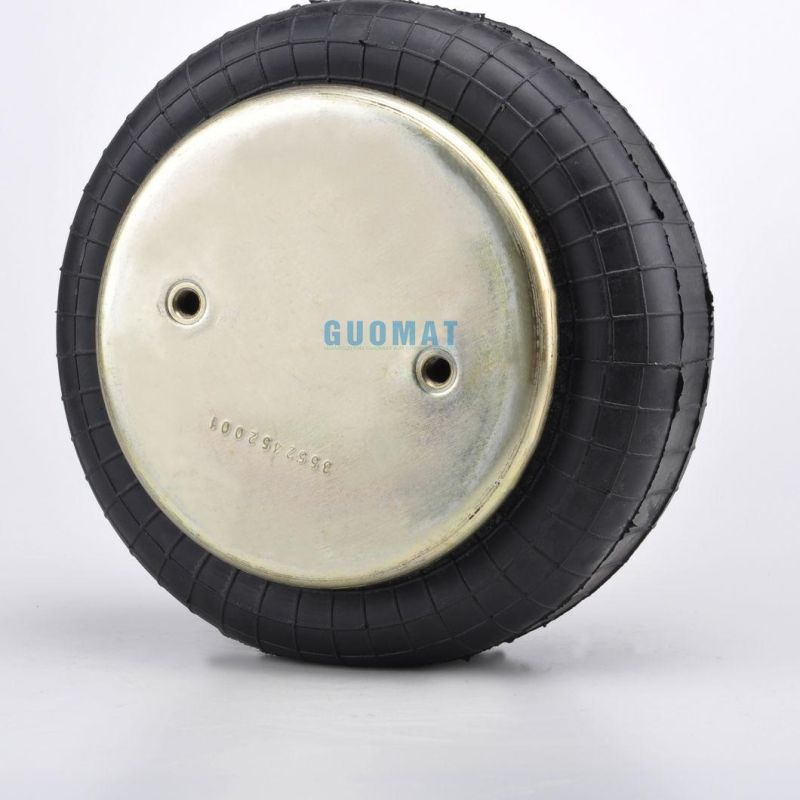

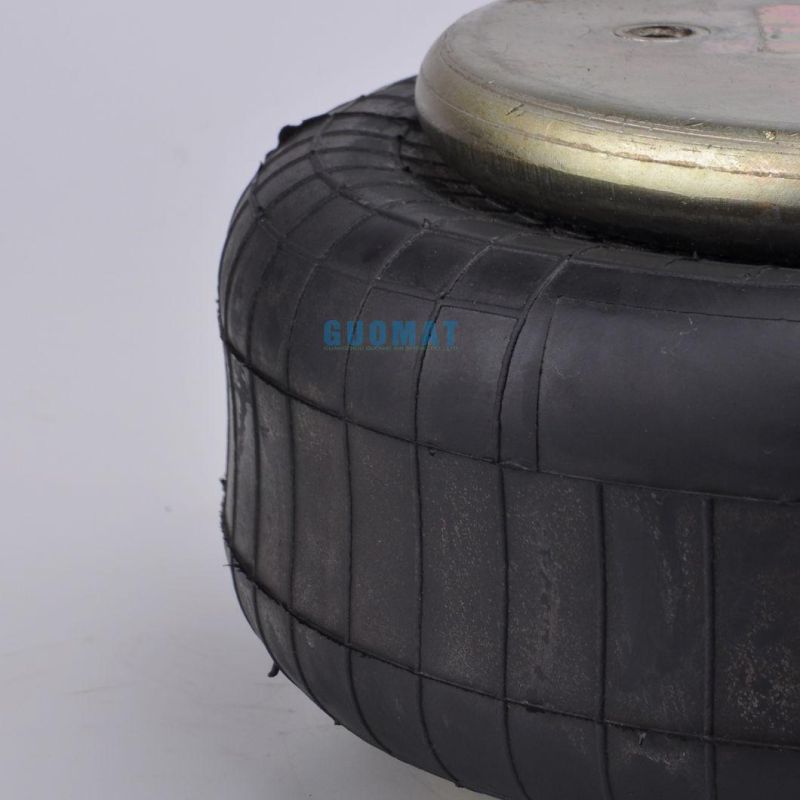

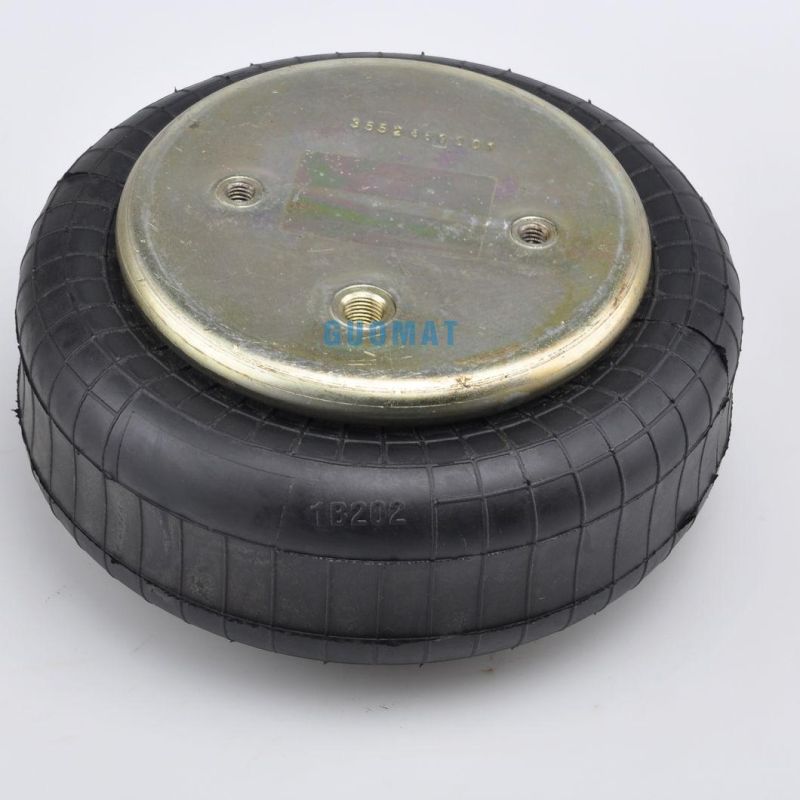

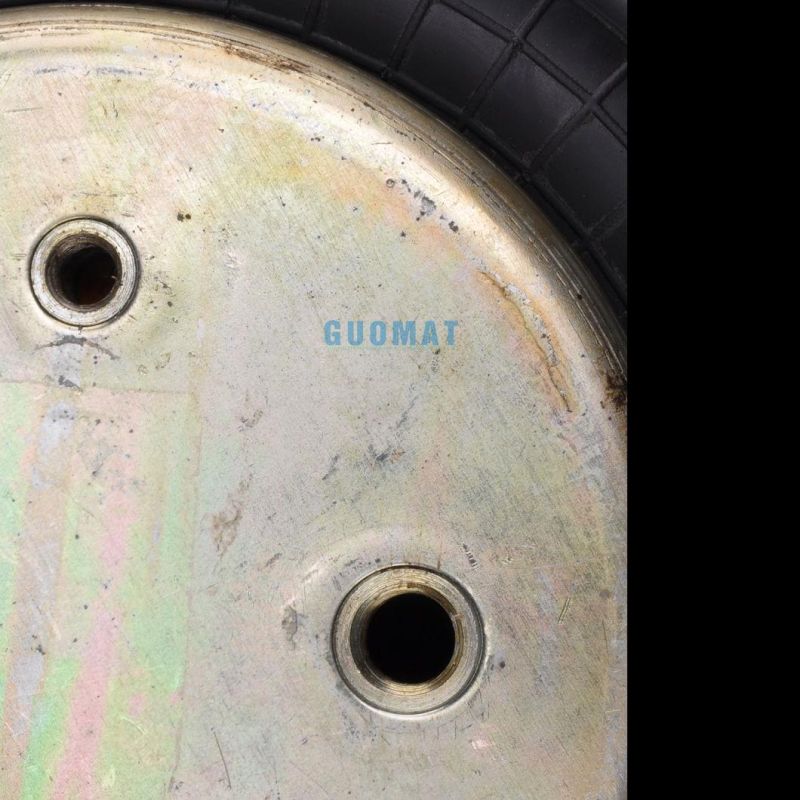

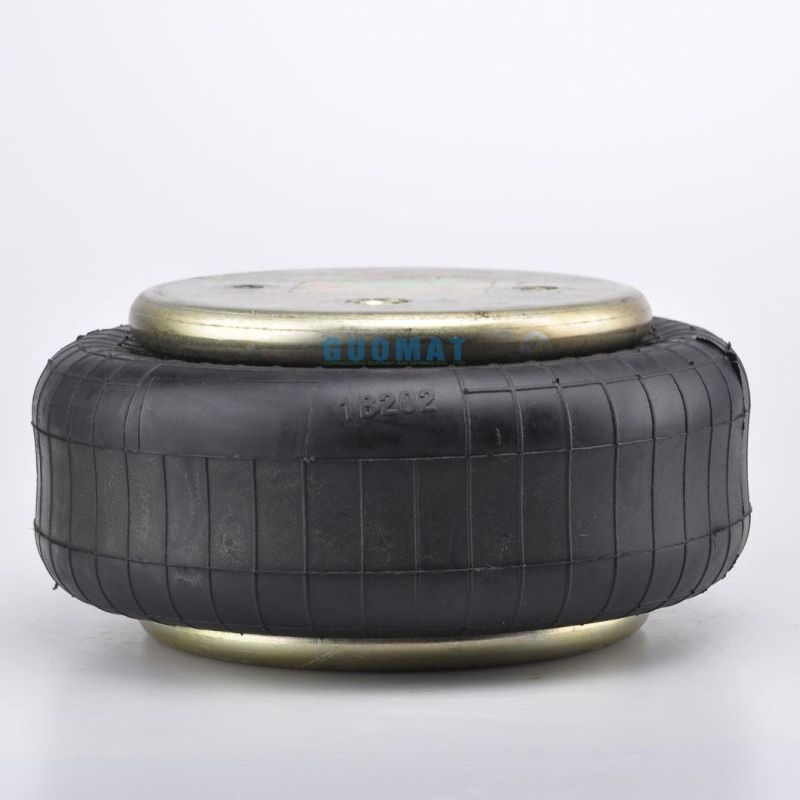

Product Image
