• Model NO.：P2.5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL, CF
• Deliver Time：15-20 Days
• Warranty Period：2 Years
• Drive Type：Constant Drive
• Life Span：100000 Hours
• Brightness：1600
• Modle Size：160mm*160mm
• Package Mode：2121
• Color Display：Full Color
• Use：Indoor Display
• Scan Type：1,32 Scan
• Transport Package：Aluminum Cabinet
• Specification：640mmx640mmx95mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

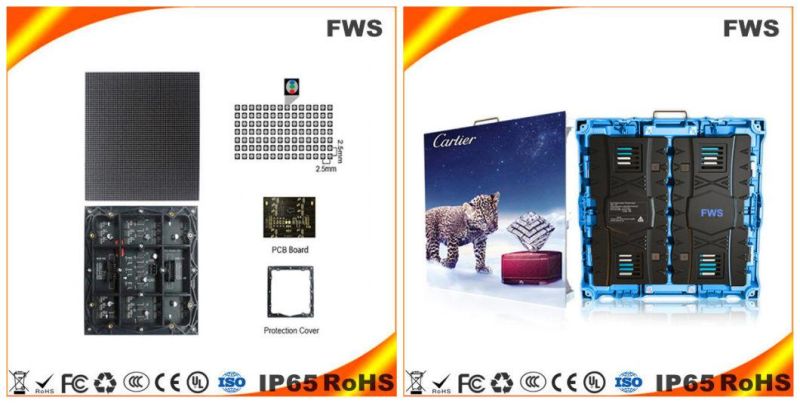

LED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (625-630nm) IV:(65-115mcd)Chip parametersGreen (523-526nm) IV:(215-265mcd)Chip parametersBlue (470-473nm) IV:(33-83mcd)LED ModulePixel Pitch2.5mmModule Size160×160mmModule Resolution64×64=4096(Dots)Module Weight0.48kgLED CabinetPixel Density160000 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution256×256=65536(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)640×640×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet4×4=16(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight13kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>1200cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle140(Horizontal), 140(Vertical)Life-span100, 000 hoursNearest Viewing Distance5mProtection Level(front/back)IP31/IP54Power Consumption (Max)1300 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)400 w/sqmWorking Temperature-15^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>800HzDrive Mode/Driver PositionConstant driving 1/32 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 , Windows 7 and XPSoftwareLED Studio(FWS-linsn)Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB, RJ45, HDMI(Sold separately)LED Module &  Aluminum cabinet
Features:
  PH2.5 Indoor Rental LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition.
  The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.
  The Seamless Splice Screen has remained the hottest product in 2015 loved by thousands of people.
  The quick-lock feature requires no technical skills to install and uninstall.f
  Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan).
  The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
   You may use it at indoor areas like exhibition, school, malls, stages, stadium and at many more indoor places.
   The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic.

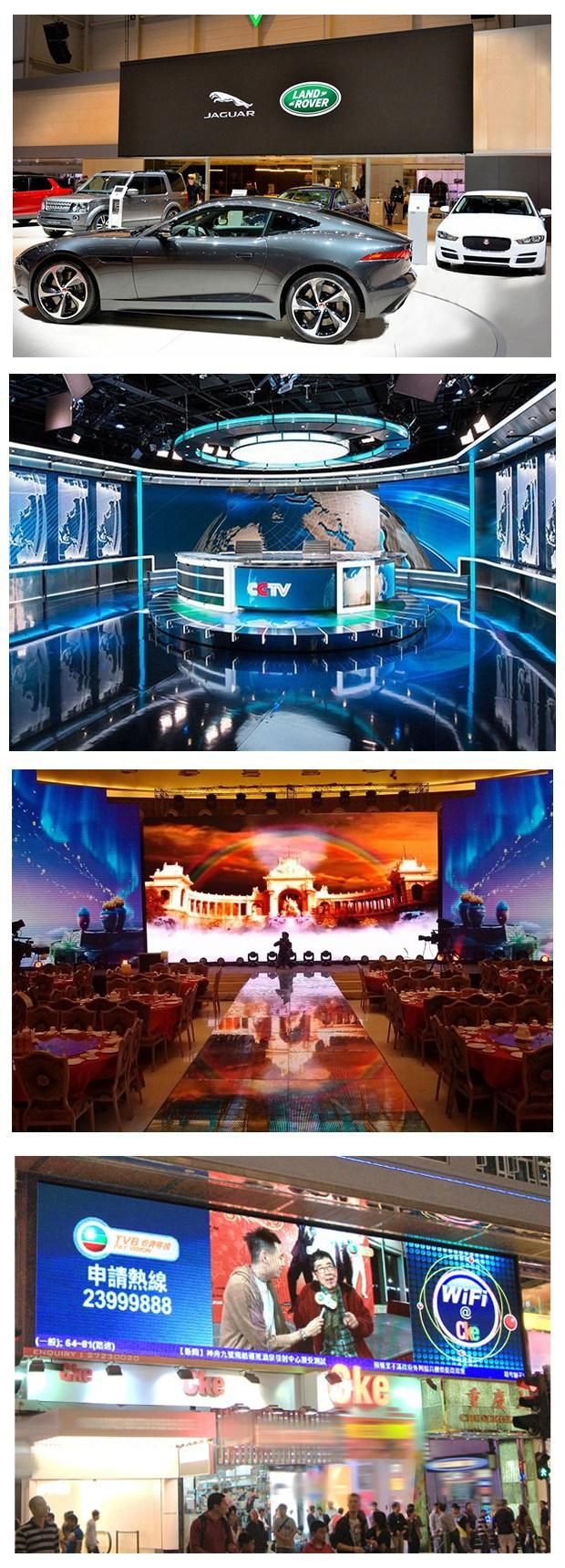

Case
Our clients
Our factory
