• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Grate：2rows
• Diamond Plates：3rows
• Intake Fan：2sets
• Exhaust Fan：1set
• Filter System：40stage Fltration
• Heating System：Gas Burner
• Upper Lights：Available
• Side Lights：Available
• Control Box：English Panel
• Drawing：Available
• Control：Automatic
• User Manual：Available
• Installation Video：Available
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：diesel
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grate 2rows Diamond Plates 3rows Intake Fan 2sets Exhaust Fan 1set Filter System 40stage Fltration Heating System Gas Burner Upper Lights Available Side Lights Available Control Box English Panel Drawing Available Control Automatic User Manual Available Installation Video Available Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark diesel Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

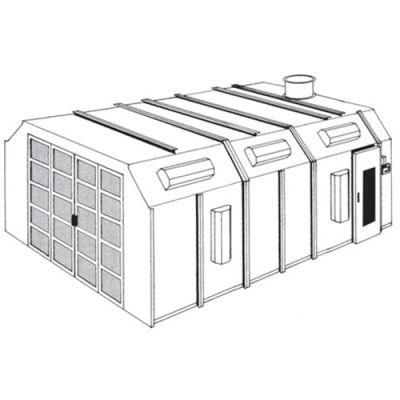

Introduction of the Auto paint spray booth for car and minivan with electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Automotive Paint booth with intake and exhaust fan

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<15.5kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel

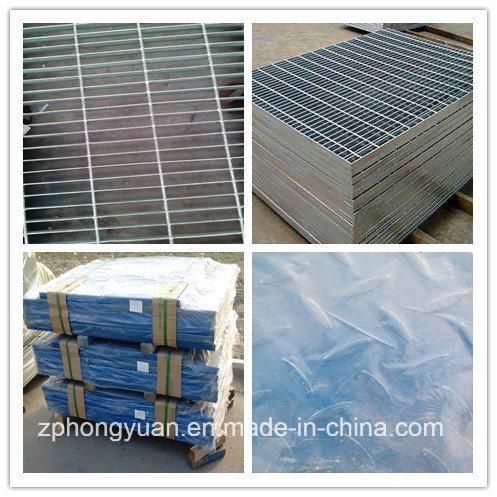

Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Riello oil burner
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

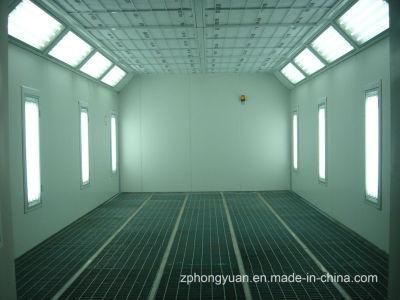

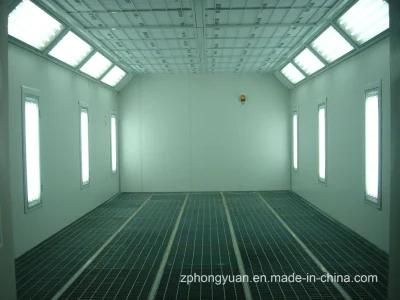

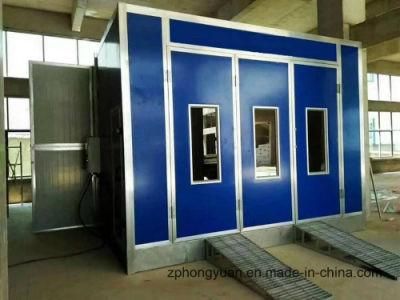

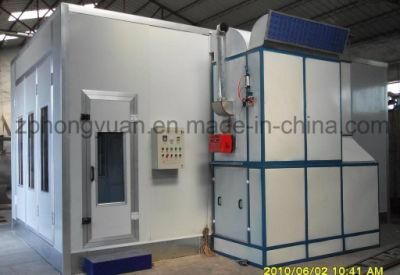

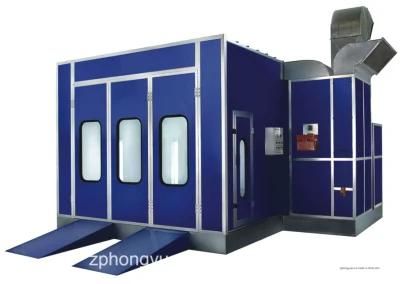

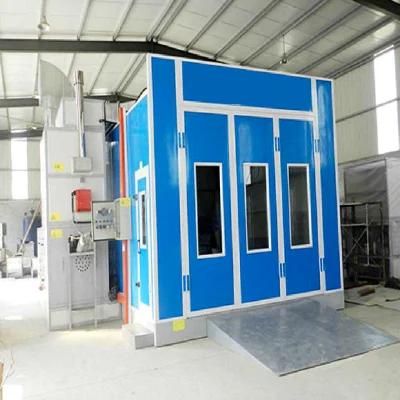

Picture of the Automotive Paint booth with intake and exhaust fan

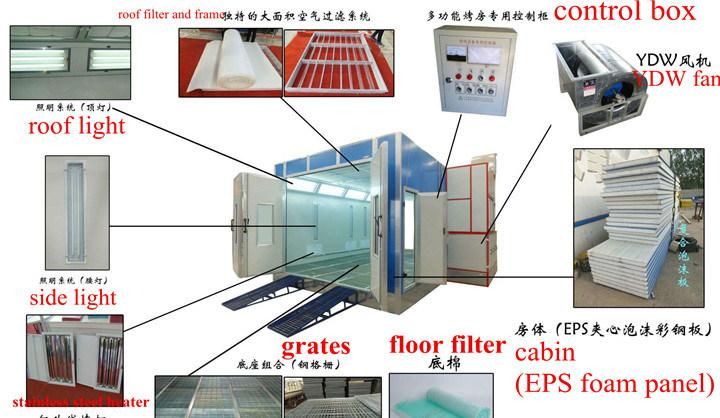

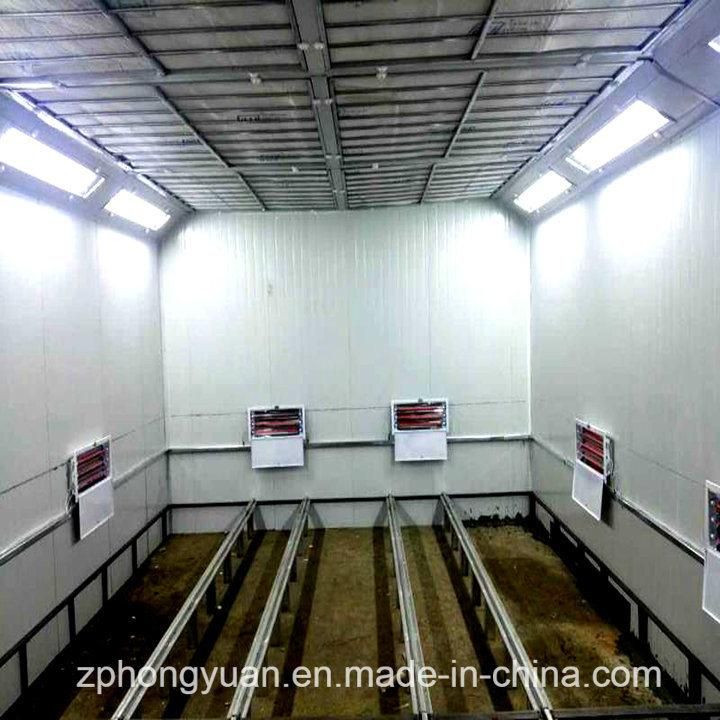

Details show of paint booth with oil burner

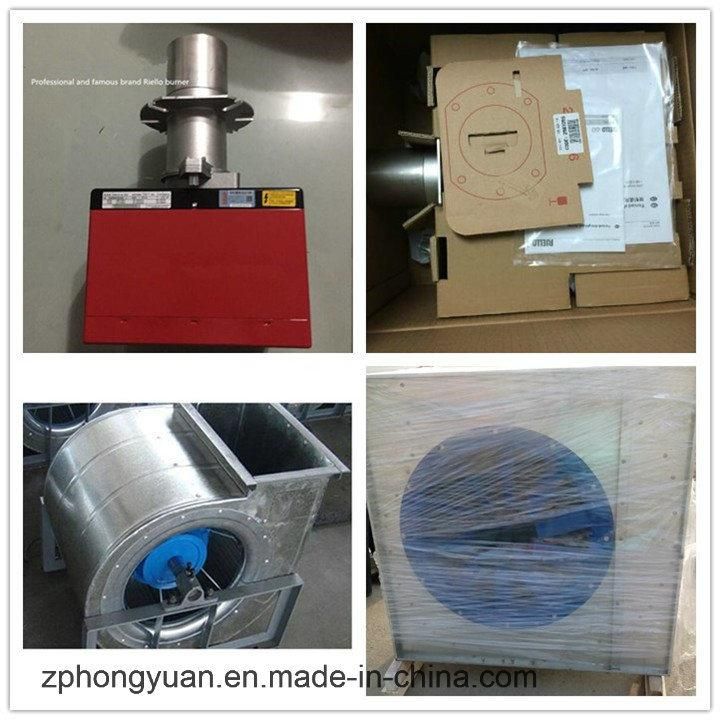

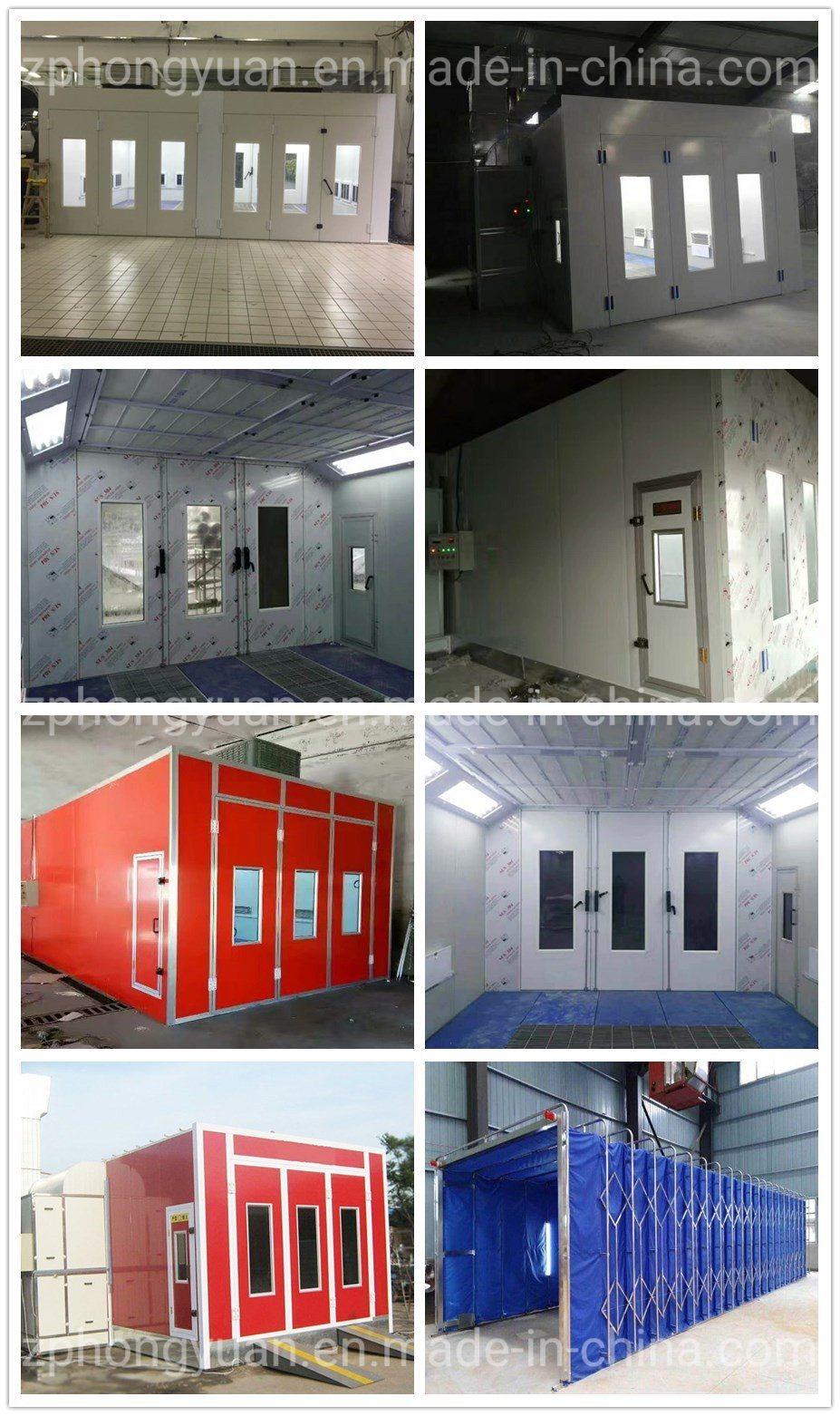

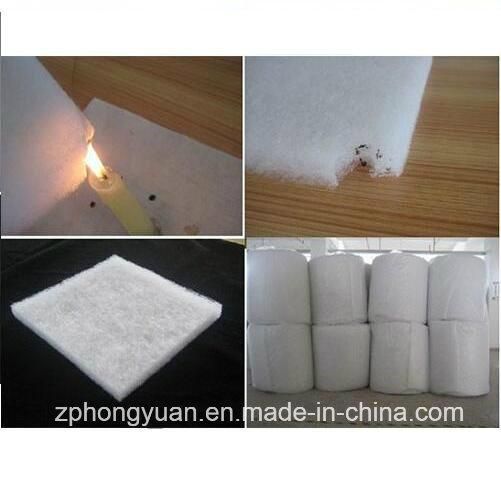

parts show of paint booth







Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time
