• Model NO.：LM2216-WN120-WW-24V-10MM
• LEDs Suppliers：Honglitronic,Samsung
• LED BINs：3-Step,5-Step, same BIN for each order
• LEDs material：packaged by 99.99% pure gold wire
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB thickness：2Oz(front 35um,back 35um)
• PCB material：Double-sided coated pure copper
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Lifespan：5000 hours
• Warranty：3years
• CRI：CRI90
• Input Voltage：DC24V
• Color Temperture：2700K,3000K,4000K,6500K
• Transport Package：Static-Resistant Bag
• Specification：5meters,Roll
• Trademark：Leomay
• Origin：Zhongshan, China
• HS Code：94054090
• Production Capacity：50000meters,Day

Basic Info.

Model NO. LM2216-WN120-WW-24V-10MM LEDs Suppliers Honglitronic/Samsung LED BINs 3-Step/5-Step, same BIN for each order LEDs material packaged by 99.99% pure gold wire LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB thickness 2Oz(front 35um,back 35um) PCB material Double-sided coated pure copper Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Lifespan 5000 hours Warranty 3years CRI CRI90 Input Voltage DC24V Color Temperture 2700K/3000K/4000K/6500K Transport Package Static-Resistant Bag Specification 5meters/Roll Trademark Leomay Origin Zhongshan, China HS Code 94054090 Production Capacity 50000meters/Day

Product Description

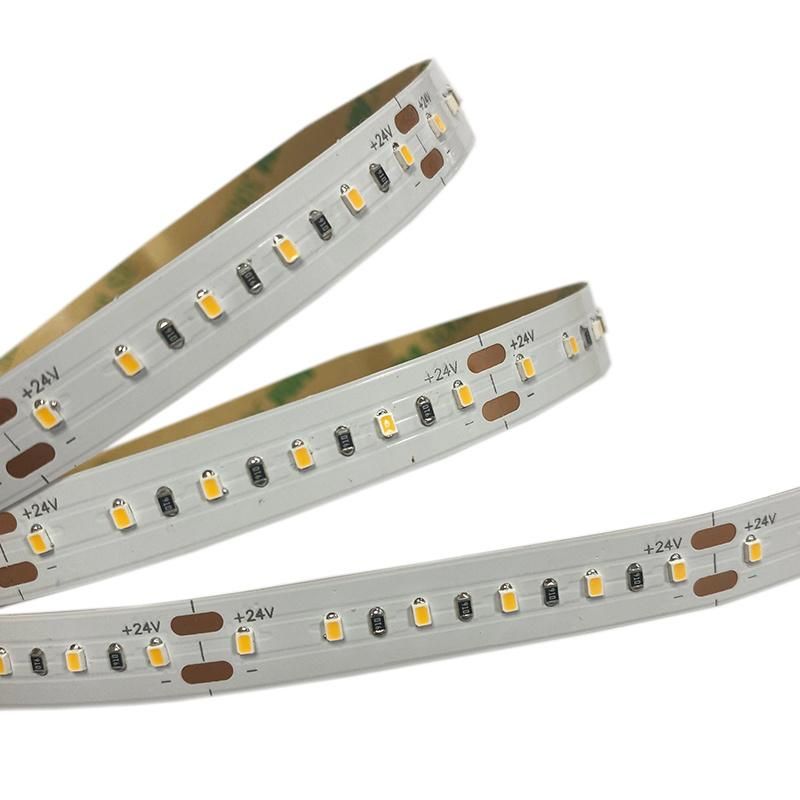

Manufacture led strip Mikro led Epistar Chip 2216 Flexible LED Strip 10MM 24V WHITE PCB 120led/m CRI90 LED Strip Lights

Product Paramenters

Model No.	LM2216-WN120-24V-10MM
LED Qty	120leds/m 2216
Rated Power(W)	7W/M, 35W/5M
Voltage(V)	24V DC
PCB Width	10MM
PCB materials	2Oz Double-sided coated pure copper
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	Packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LED Supplier	Refond
CRI(RA>)	CRI 90
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	7 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, Rohs, FCC
Warranty	2 Years

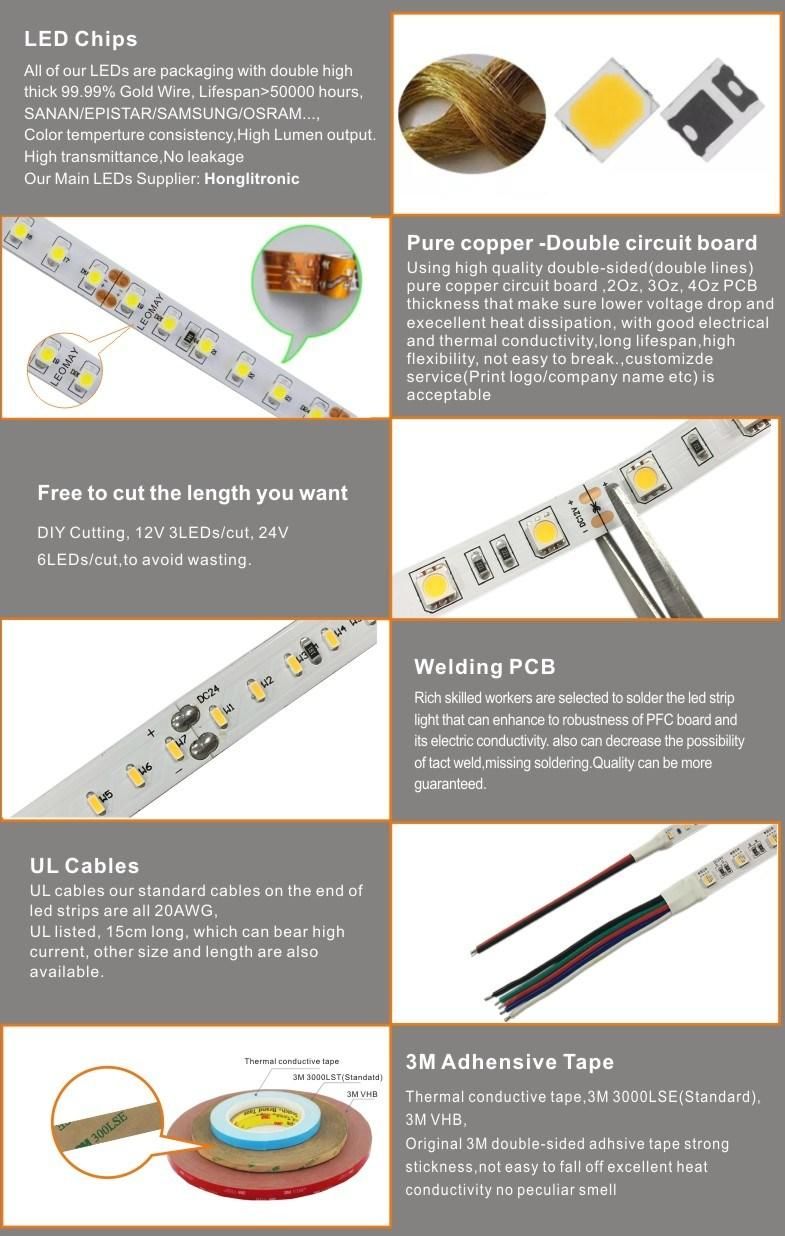

Details Images






Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.






Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.






Recommend Products

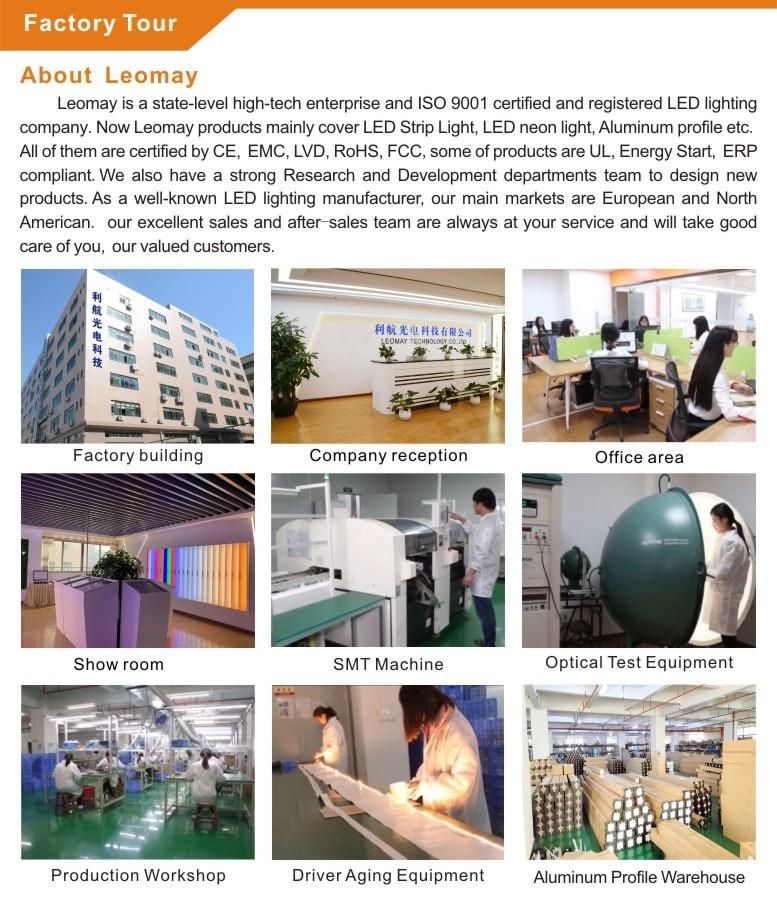

Company Profile







Our Advantages


1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
