• Model NO.：X431 PAD 3
• Update Method：by Internet
• Type：Diagnostic Scanner
• Software Update：1 Year Free Update
• Protocols：Can,Canfd,Doip
• Touchscreen：10.1 Inch Touch Screen 1920X1200
• System：Android 5.1.1
• Processor：2.0GHz 8-Core Processor
• Camera：Rear 8 Megapixels, Front 2 Megapixels
• Memory：64 GB Internal + 128 GB Expandable Memory
• Connection：WiFi, Bt
• Coverage：98% Vehicle Coverage
• Optional Use：Adas Calibration Function
• Features：ECU Programming & Coding
• Service Functions：16 Special Functions Available
• Supported System：All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I
• Availale：Ready Stock
• Dimension：317 X 202 X 53mm
• Transport Package：Carton Package
• Trademark：Launch
• Origin：China
• HS Code：9031809090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. X431 PAD 3 Update Method by Internet Type Diagnostic Scanner Software Update 1 Year Free Update Protocols Can/Canfd/Doip Touchscreen 10.1 Inch Touch Screen 1920X1200 System Android 5.1.1 Processor 2.0GHz 8-Core Processor Camera Rear 8 Megapixels, Front 2 Megapixels Memory 64 GB Internal + 128 GB Expandable Memory Connection WiFi, Bt Coverage 98% Vehicle Coverage Optional Use Adas Calibration Function Features ECU Programming & Coding Service Functions 16 Special Functions Available Supported System All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I Availale Ready Stock Dimension 317 X 202 X 53mm Transport Package Carton Package Trademark Launch Origin China HS Code 9031809090 Production Capacity 500PCS/Month

Product Description

LAUNCH Official Authorized Store!
100% Original Products and Best Price.
We Support Wholesale Price and Dropshipping.
Overseas wareouse located in Spain, Germany, USA, Australia, Russia and etc.



Launch PADIII Features:

1. Full vehicle system coverage for over 11O brands in the world, which is continually updated

2. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis

3. Remote diagnosis allowing you to work on a vehicle from your tool without being on-site

4. Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions

5. Guided function for Volkswagen and Audi

6. Advanced coding and programming function

7. ADAS calibration function is optional

8. 16 special functions available

9. Compatible with 5 Extended Module: Oscilloscope, sensor, battery test, endoscope WiFi printer

10. Truck diagnostic ability with HD Ill VCI

11. Integrated database with comprehensive vehicle service and repair information

12. Diagnostic records and reports can be stored in the cloud without any concern of data missing

13. 1-Click Upgrade and silent install for software

14. Support DC IN/Micro USB/USB 2.0 Type A/RJ45/HIMI/ TF slot/Headset

15. Non-slip housing with skid-proof handle

16. Adjustable supporting holder



Launch PAD III Specification:

Processor	2.0GHz  8-core processor
Memory	2GB
Storage	64 GB internal + 128 GB expandable memory
Operation System	Android 5.1.1
Display	10.1 inch touch screen
Resolution	1920x1200
Camera	Rear 8 Megapixels, front 2 Megapixels
Diagnostic Communication	Bluetooth
Working Temperature	0 - 50°C
Dimension	317 X 202 X 53mm

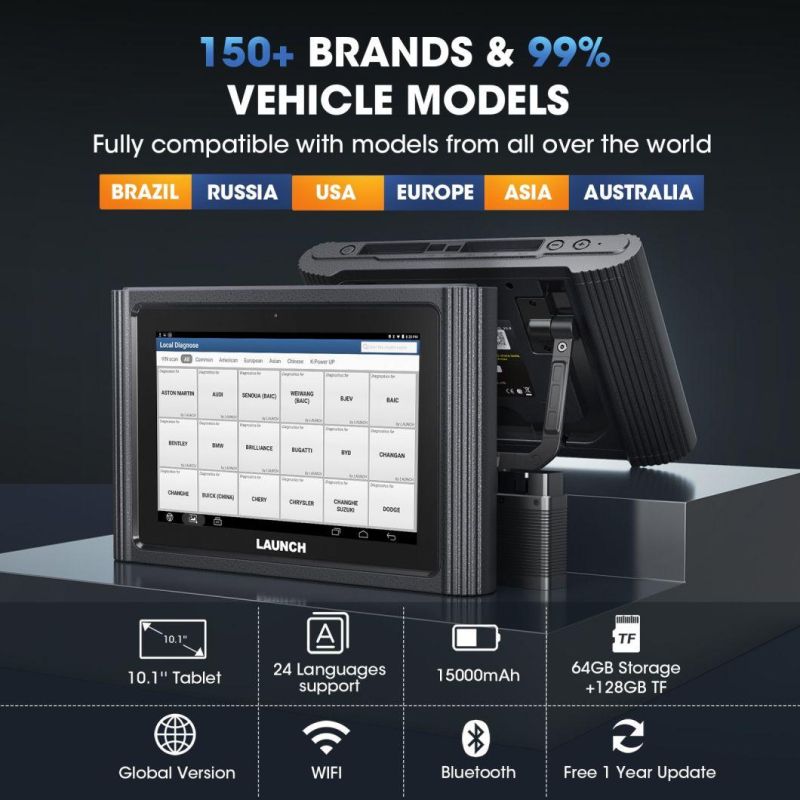

 Launch PAD VII Pictures:
