Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：10mm
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Shopping Guide
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：160X160mm
  • Screen Brightness：7000nits
  • Protection Grade：IP65
  • Controller：Nova
  • Transport Package：Wooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*80mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.220 / MAX.600


Screen parameters:
 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000dotssqm3LED TypeSMD35354Viewing Angle(H)140°,(V)140°5Brightness≥5500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Cabinet Type and MaterialSteel Iron12Cabinet Weight≤50kg/sqm13VoltageAC 220/110V±10%,60Hz14Avg. Power Consumption220W/sqm15Max. Power Consumption600W/sqm16Protection GradeFront IP65,Rear IP5417Operating Temp/Humidity-30ºC~60ºC, 10~95%RH

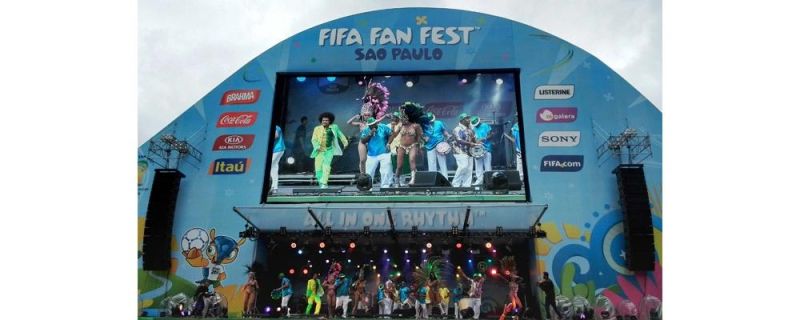

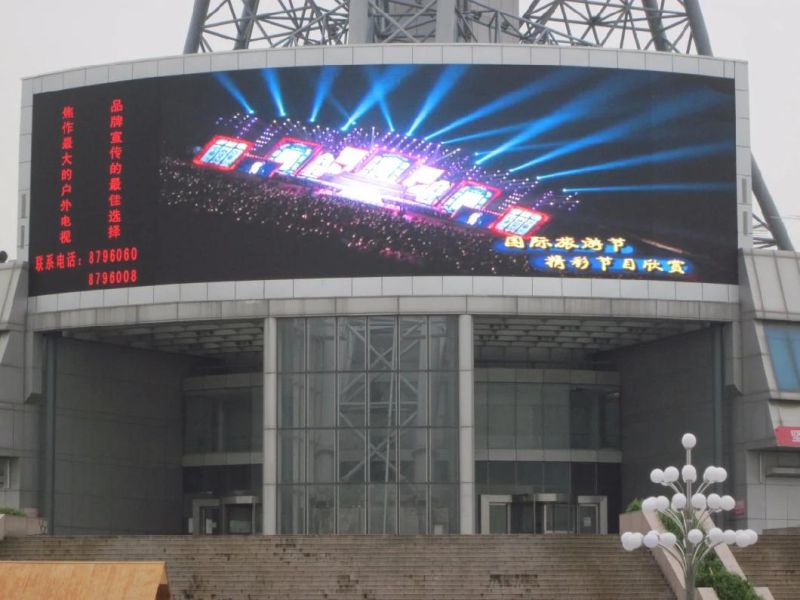

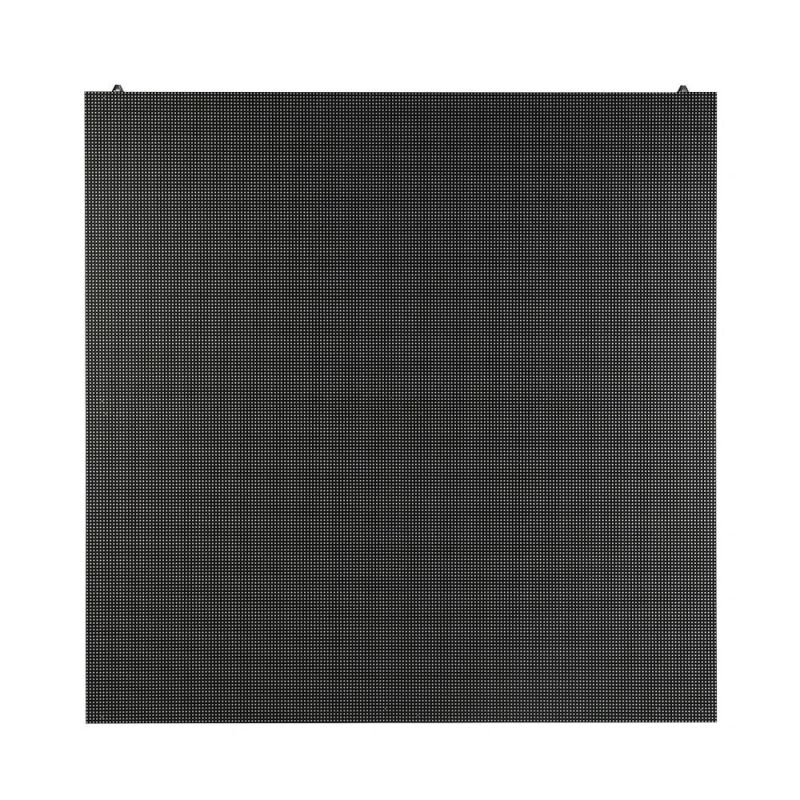

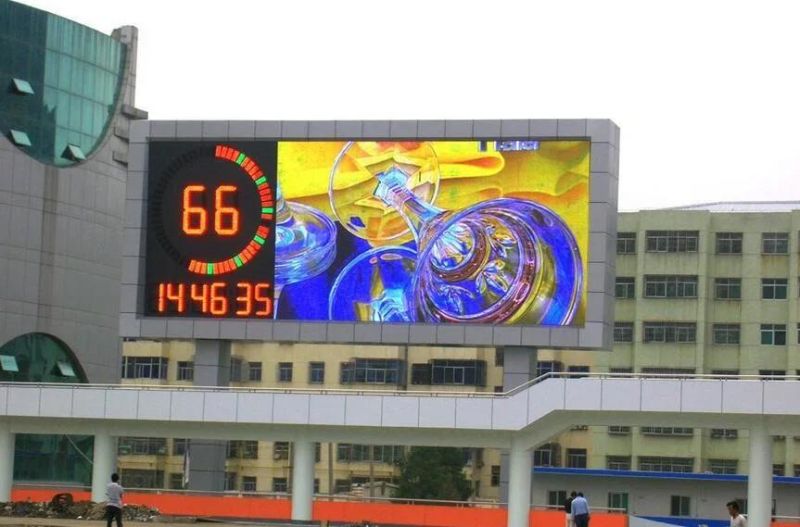

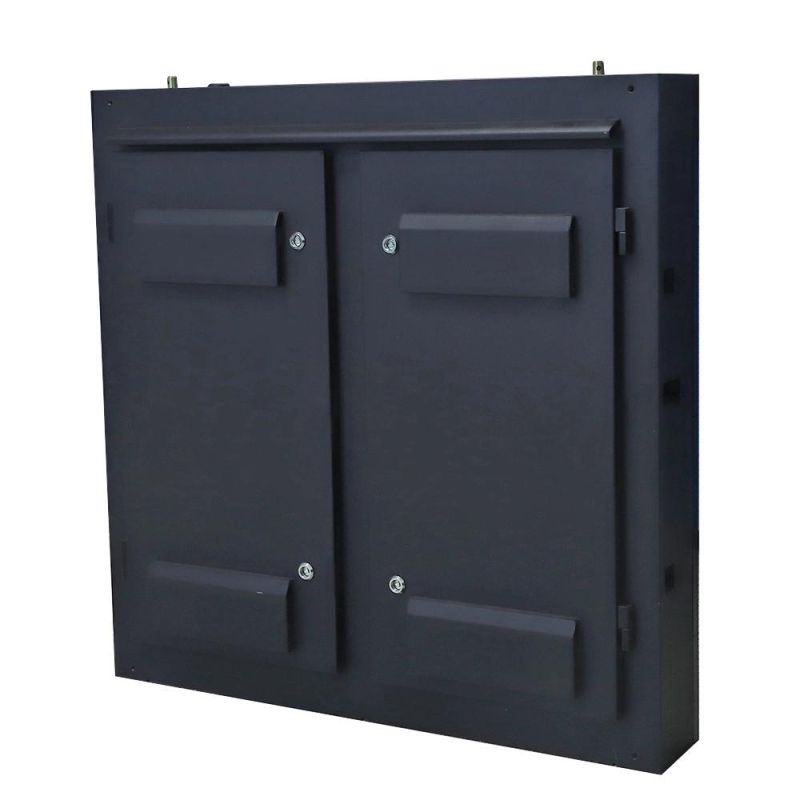

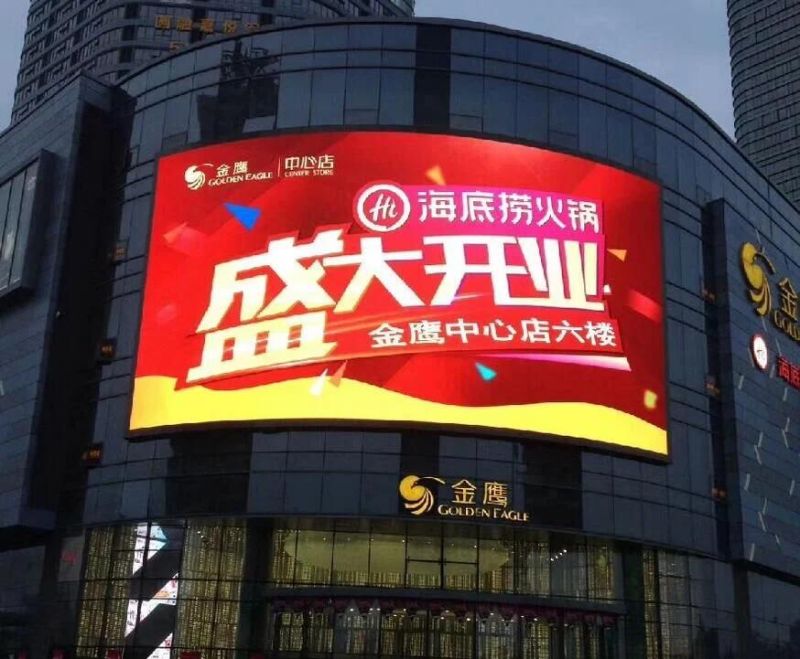

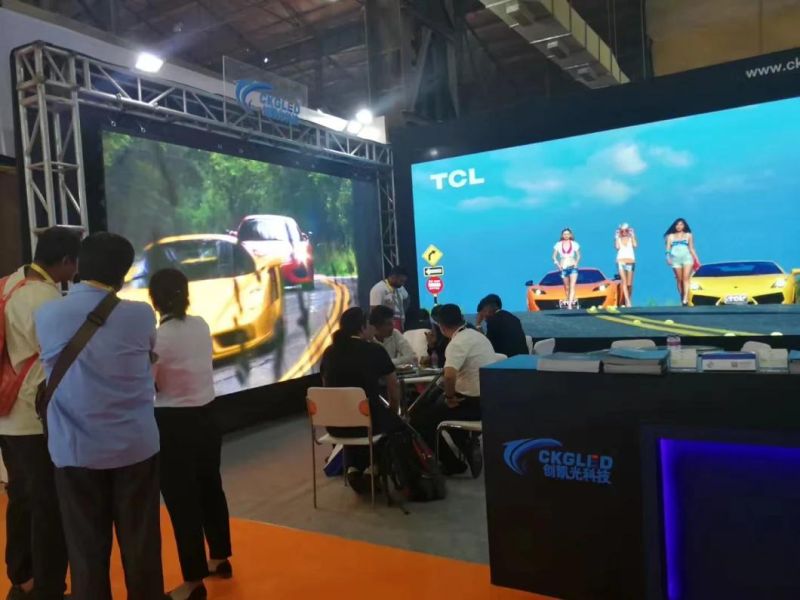

PRODUCT PHOTOS:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen


Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

CERTIFICATES:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

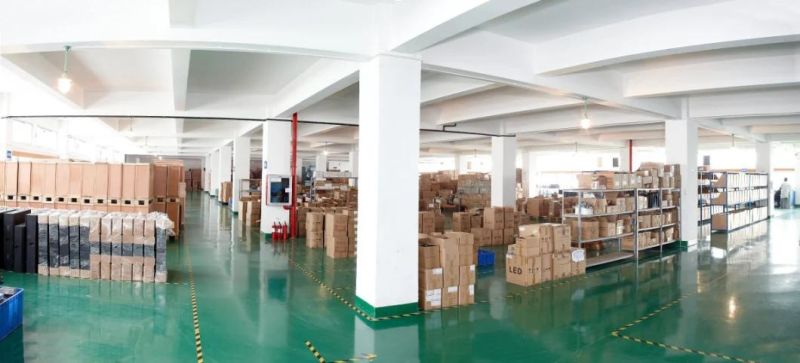

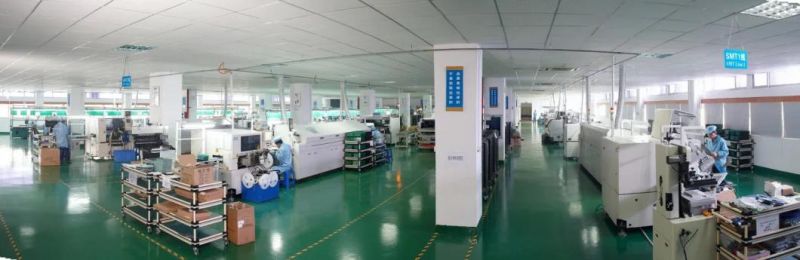

WORKSHOP:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

PACKAGE:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

COMPANY CULTURE:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
