• Model NO.：KS-P2mm
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Advertising
• IP Rating：IP45
• Certification：CE, RoHS, FCC
• Module Size：128*128mm,256*128mm
• Module Resolution：64*64dots,128*64dots
• Cabinet Size：512*512mm
• Cabinet Dots：256*256 Dots
• Service Way：Magnetic Front Sservice
• Product Name：HD 4K P2 Indoor LED Display Screen
• LED Lamp：Nationstar, Kinglight
• Transport Package：Wooden Case
• Specification：512*512mm
• Trademark：JC
• Origin：China
• HS Code：9405600000
• Production Capacity：100000sqm,Year

Pixel Pitch

2mm

Pixel Density

250000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD1515

Module Size

256*128mm

Module Resolution

128dots x 64dots

Drive Mode

1/32 Scan

Cabinet MaterialDie casting AluminumLed ColorBlack

Standard Cabinet Size

512*512mm

Cabinet Weight

7KG

Brightness

≥800 cd/sqm, adjustable by software

Viewing Distance

2m-30m

Viewing Angle

H: 140°; V:140°

Refresh Rate

1920HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10%,  50HZ

Max Power Consumption

700W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30ºC~+70ºC

Working Temperature

-20ºC~+50ºC

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

PC Display Resolution

1280x1024

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8, Win10

Signal Input

DVI

Certificate

CE, RoHS

Product description:1)   Die casting aluminum cabinet, super light and thin, reducing the shipping cost.2)   Easy to install, effectively saving the time.3)   High refresh rate, it can be adjusted to 3840hz, bring a better visual experience to you.4)   Larger viewing angle to 140° at horizontal line, 140 degree at vertical line.5)   No mosaic or ghost, display the exquisite and sharp picture.

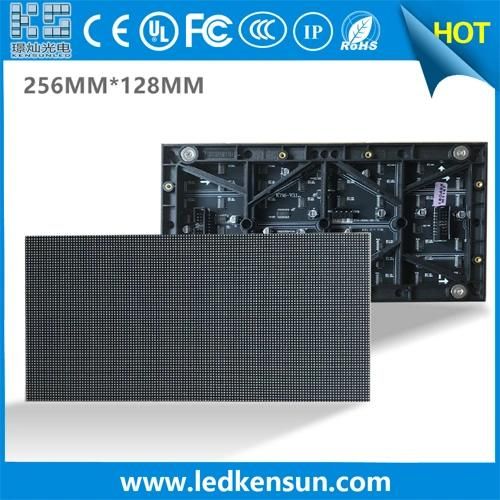

Module:

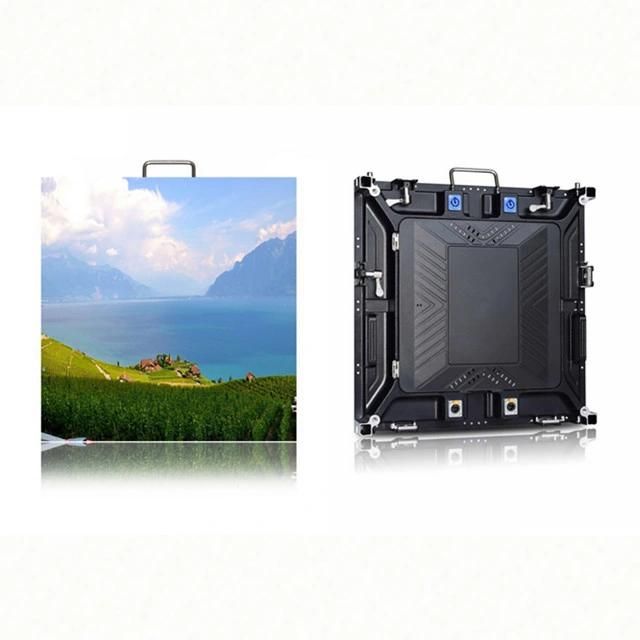

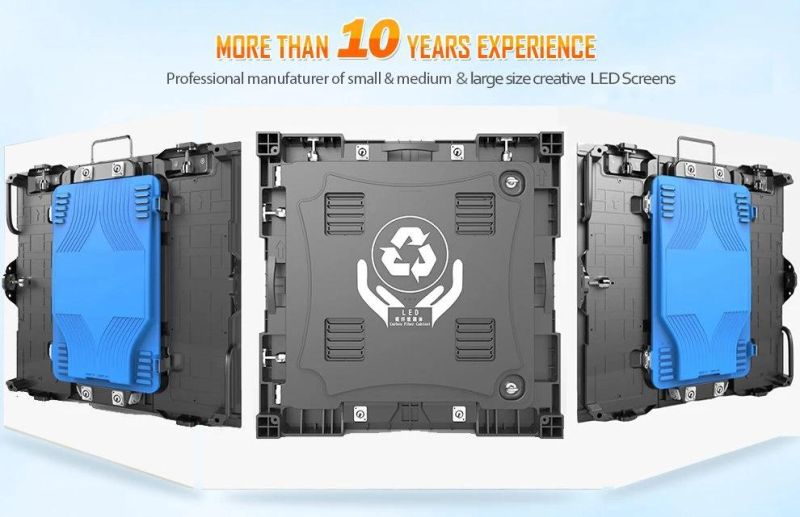

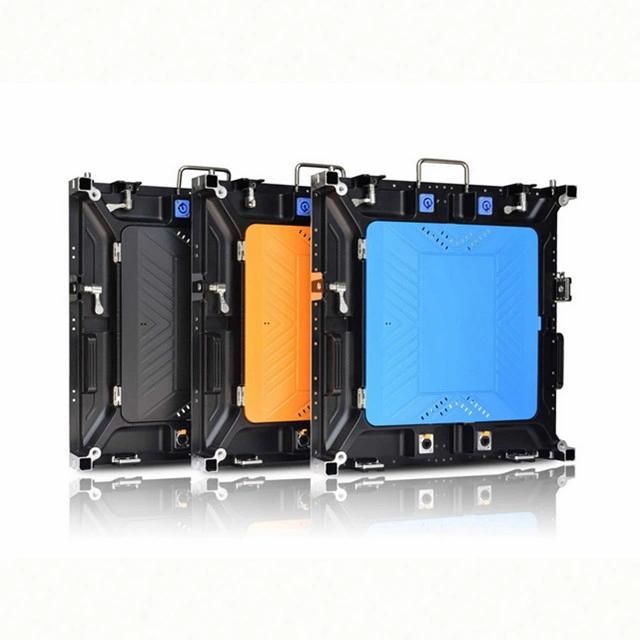

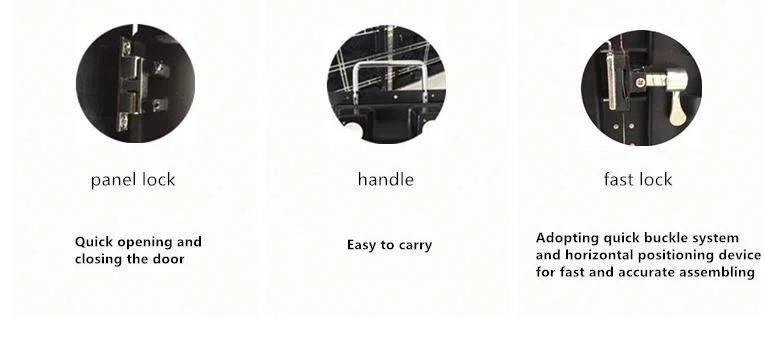

Cabinet:




Application:



Company information:

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

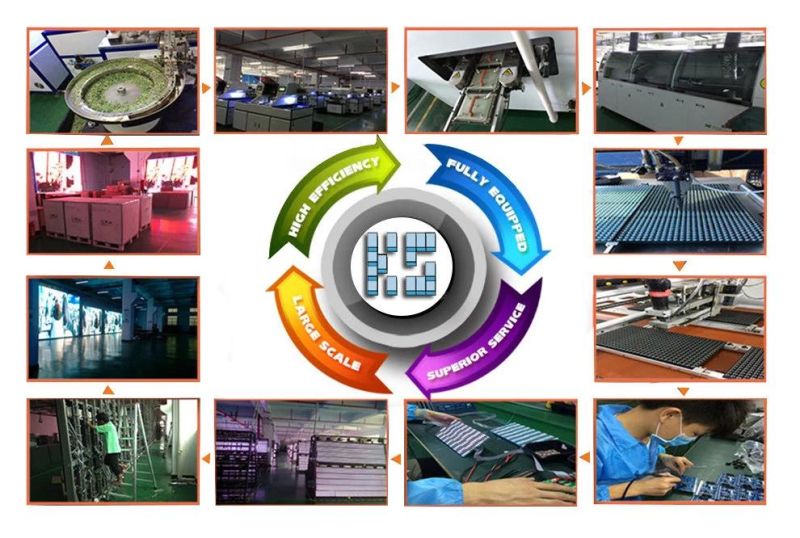

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:

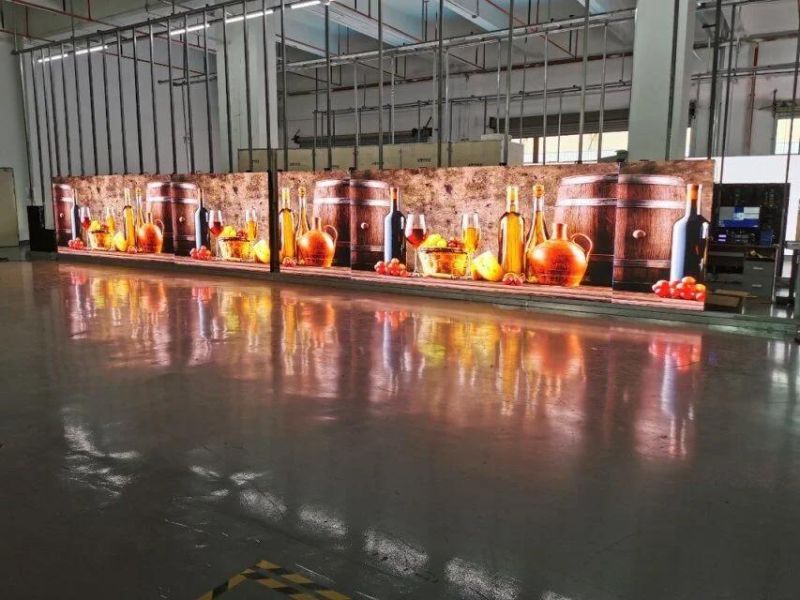

Product Project:


Packing and Shipping:



FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.

Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
