Factory Supplier Disposable Medical Fine Adjustment Infusion Set with Needle
Anping County Dinghe Wire Mesh Co., Ltd.- Type:Infusion Set
- Material:Plastic
- Ethylene Oxide Sterilization:Ethylene Oxide Sterilization
- Quality Guarantee Period:Five Years
- Group:Adult
- Logo Printing:Without Logo Printing
Base Info
- Model NO.:Injection
- Transport Package:PE
- Specification:61*38*32.5cm
- Trademark:qinkai
- Origin:China. Heze
- HS Code:9018390000
- Production Capacity:300000pieces,Every Day
Description
Product Name
Disposable medical infusion set
Material
plastic metal silica gel
Color
transparent
Hardness
medium
Application
his product is suitable for intravenous infusion
in patients with clinical control
requirements of infusion flow.
The infusion flow is continuous from 20ml/h to 125mL/h.
Model
specification
0.45 x 15,0.5 x 20,0.55 x 20,0.6 x 25,
0.7 * 25,0.8 * 28,0.9 * 28
Product Performance
Structure and
Composition

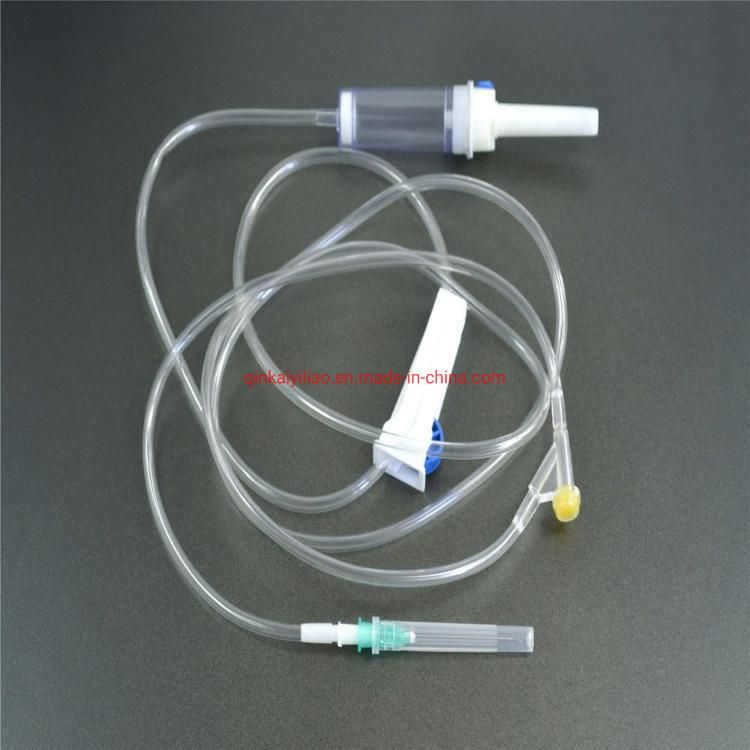

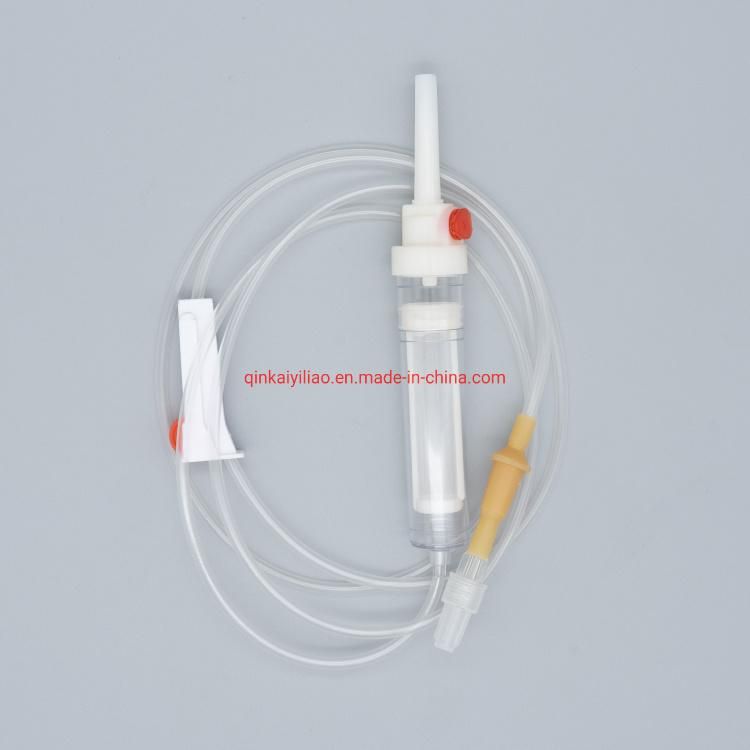

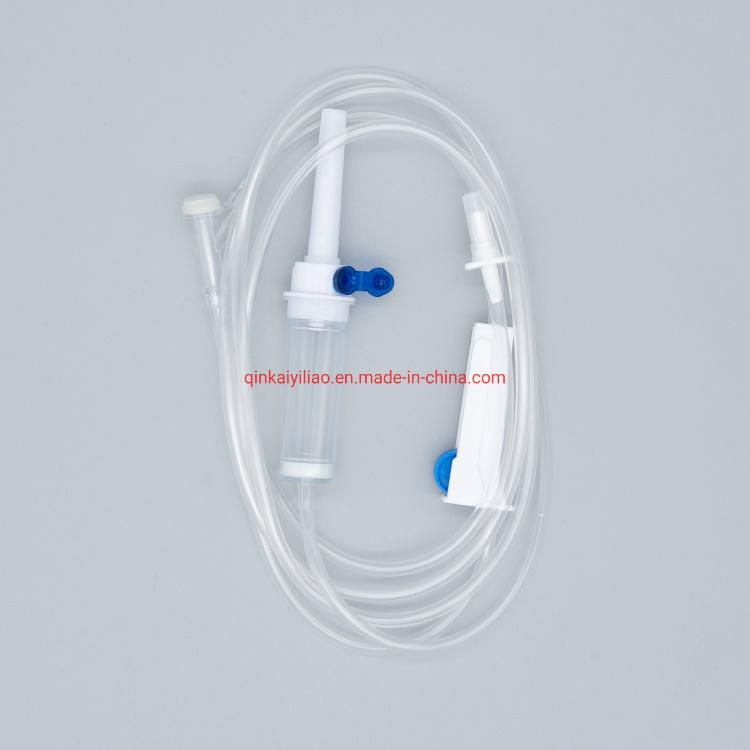

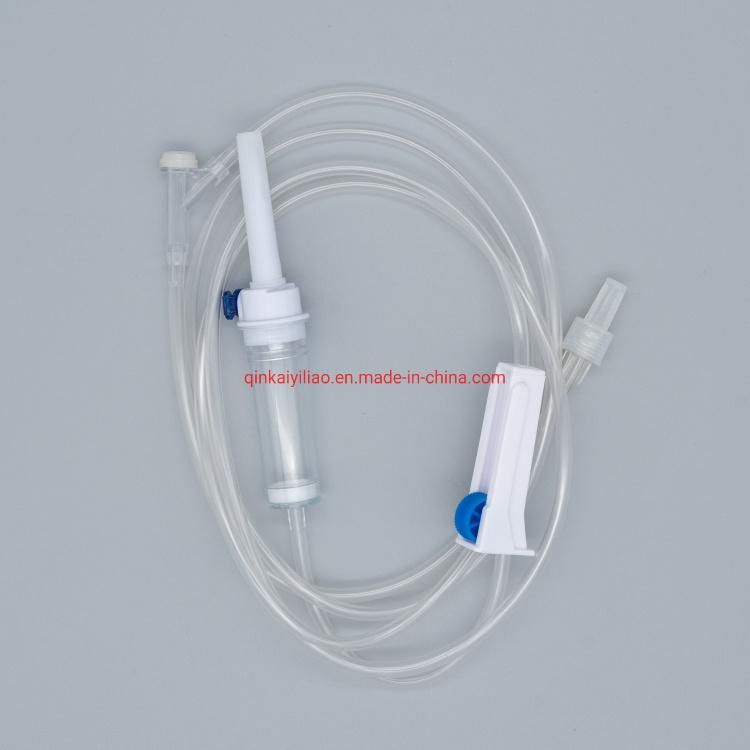

disposable infusion device with needle is
composed of disposable infusion device,
disposable intravenous infusion needle (optional),
medical infusion sticker (optional).
The disposable infusion device consists of
a protective sleeve of a bottle stopper puncture device,
a bottle stopper puncture device, an air intake device,
a dropper, a dropper, a pipeline, a flow regulator,
a medicinal liquid filter (15um), an outer conical joint,
an injection part (optional),
and an outer conical joint protective
sleeve sleeve (optional).
The disposable intravenous infusion needle
is composed of a needle handle,
a connecting seat, a hose,
a needle tube and a protective sleeve.
Usage method
1. Place the infusion bottle vertically and
puncture the puncture apparatus into the infusion bottle.
2. Hang the infusion bottle upside down,
the medicine liquid enters the dripper,
eliminates the surplus air.
3. Drug enters the catheter under the infusion device,
regulates the flow rate,
controls the downward flow rate of the drug,
and avoids waste caused by the
excessive flow rate of the drug reaching
the infusion needle.
Matters needing
attention
1. only gravity infusion;
2. It is found that the single package is damaged,
the protective sleeve is off or there are foreign objects.
3. open a single bag, remove the infusion device,
pay attention to prevent transfusion device
is contaminated.
4. Insert the bottle stopper into the infusion
container, drain the bubbles,
and make regular infusion.
5. Ethylene oxide sterilization is valid for two years,
sterile and without heat source.
It is only for one-time use and destroyed after use.
6, before use,
tighten the needle and the cone head of
the needle and prevent leakage.
7. If you use a soft infusion container for infusion,
do not open the empty cover when exhausting
(if there is an empty connection pipe,
tighten the empty hose)
to prevent liquid leakage.
Storage
Conditions
Packed finished products should be
stored in warehouses with
relative humidity less than 80%,
ventilation and drying, clean and sanitary,
and no harmful gases.
