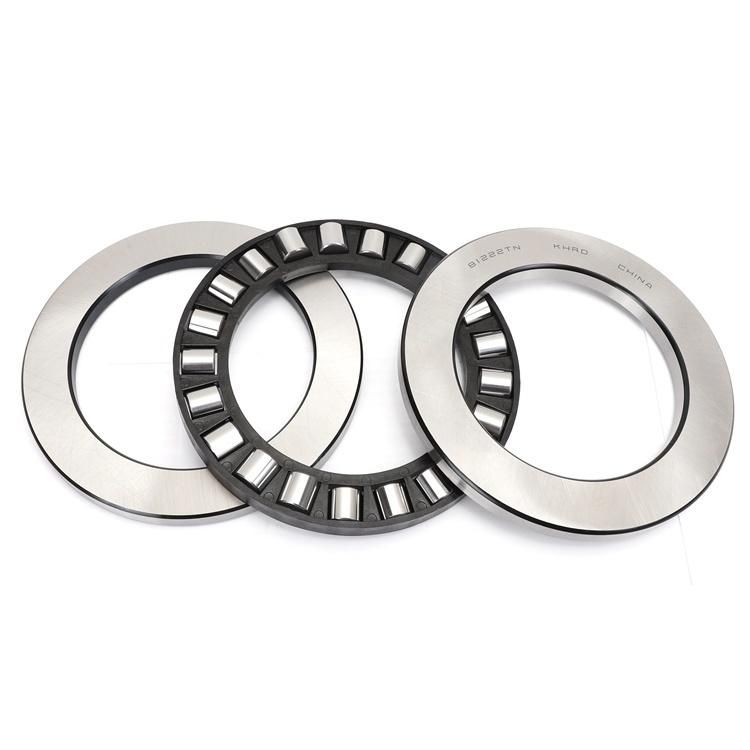

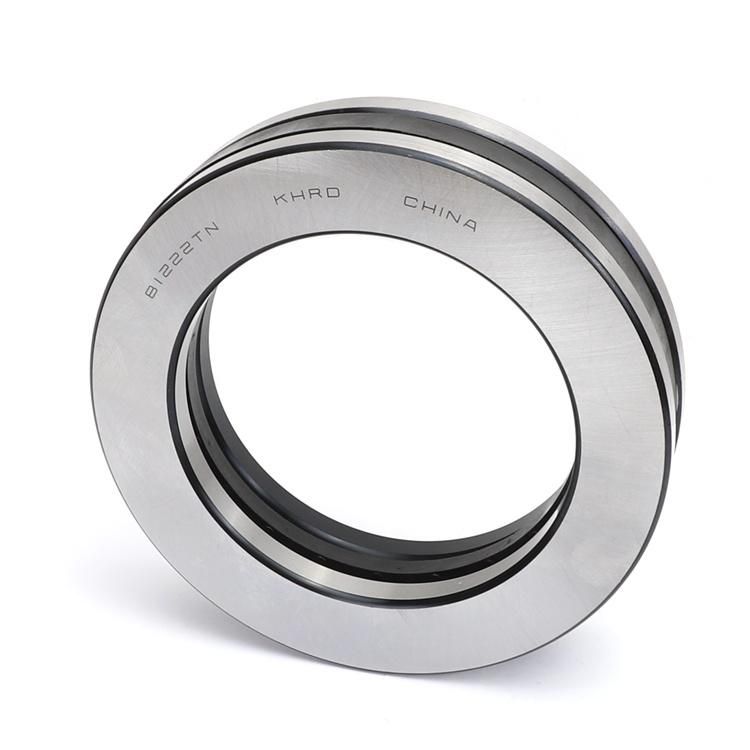

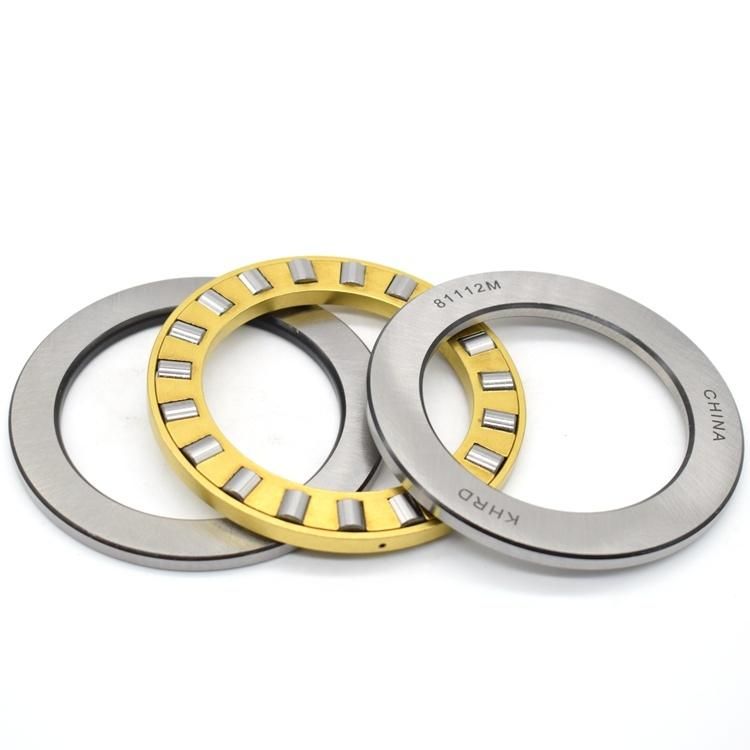

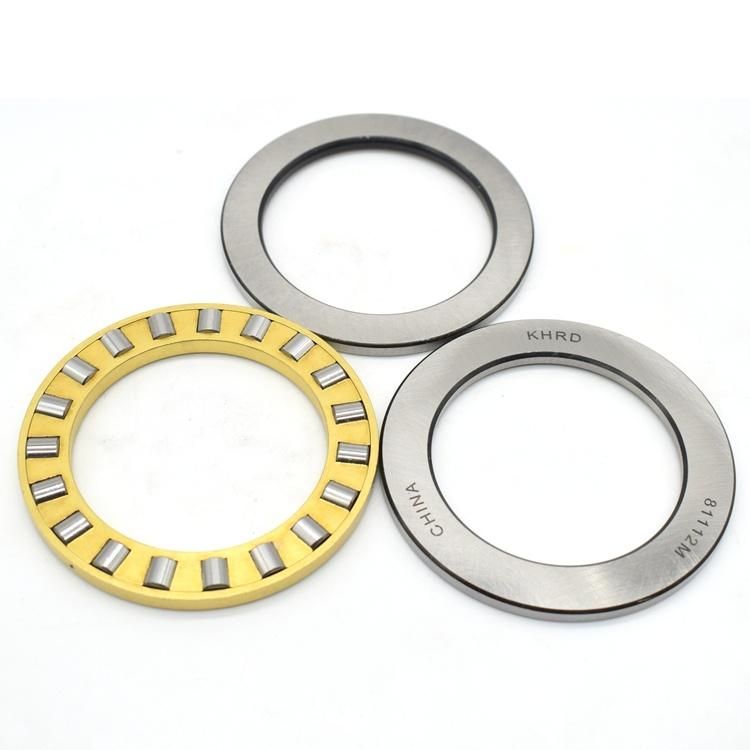

China Khrd Brand Thrust Roller Bearing 81102 81103 81104 81105 with High Precision
Hangzhou Xunda Packaging Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Thrust Bearing
Base Info
- Model NO.：81102 81103 81104 81105
- Separated：Separated, Unseparated
- Aligning：Non-Aligning Bearing
- Rows Number：Single
- Contact Angle：90°
- OEM：Accept
- Application：High Rigidity Requirements
- Transport Package：Plastic Tube+Carton+Pallet
- Specification：15*28*9mm
- Trademark：KHRD
- Origin：China
- HS Code：848210200
- Production Capacity：100000pieces,Month
Description
Speed(r/min)Weight D(mm) D(mm) W(mm) Cr(N) Cor(N) Grease Oil kg 81102 15 28 9 13 15 16000 21000 0.024 81103 17 30 9 15.9 33.5 14000 19000 0.027 81104 20 35 10 24.9 53 11000 16000 0.037 81105 25 42 11 33.5 76 9000 14000 0.053 81106 30 47 11 35.5 86 8000 12000 0.057 81107 35 52 12 39 101 7500 10000 0.073 81108 40 60 13 56 148 6300 8500 0.105 81109 45 65 14 59 163 5600 7500 0.13 81110 50 70 14 61 177 5300 7000 0.14 81111 55 78 16 103 315 4800 6300 0.218 81112 60 85 17 111 365 4500 6000 0.266 81113 65 90 18 105 340 4000 5300 0.31 81114 70 95 18 106 350 3800 5000 0.332 81115 75 100 19 112 385 3400 4500 0.393 81116 80 105 19 114 465 3200 4300 0.4 81117 85 110 19 199 650 3000 3600 0.42 81118 90 120 22 195 650 2800 3600 0.62 81120 100 135 25 146 585 1200 2400 0.95 81122 110 145 25 153 630 1100 2200 1.05 81124 120 155 25 160 680 1100 2200 1.1 81126 130 170 30 183 780 950 1900 1.7 81128 140 180 31 193 850 900 1800 1.9 81130 150 190 31 200 900 850 1700 2
Thrust roller bearing modles
81102 81103 81104 81105 81106 81107 81108 81109 81110 81111 81112 81113 81114 81115 81116 81117 81118 81120 81122
81124 81126 81128 81130 81132 81134 81136M 81138M 81140M 81144M 81148M 81152M 81156M 81160M 81164M 81168M
81172M 81176M 81180M 81184M 81188M 81192M 81196M 811/500M 811/530M 811/560M 811/600M 811/630M
81206 81207 81208 81209 81210 81211 81212 81213 81214 81215 81216 81217 81218 81220 81222 81224 81226 81228M
81230M 81232M 81234M 81236M 81238M 81240M 81244M 81248M 81252M 81256M 81260M 81264M 81268M 81272M
81276M 81280M 81284M 81288M 81292M 81296M 812/500M 812/530M 812/560M 812/600M 812/630M 812/670M
812/710M 812/750M 812/800M 812/850M 812/900M 812/950M 812/1000M
If you want to know more details, please contact us.
