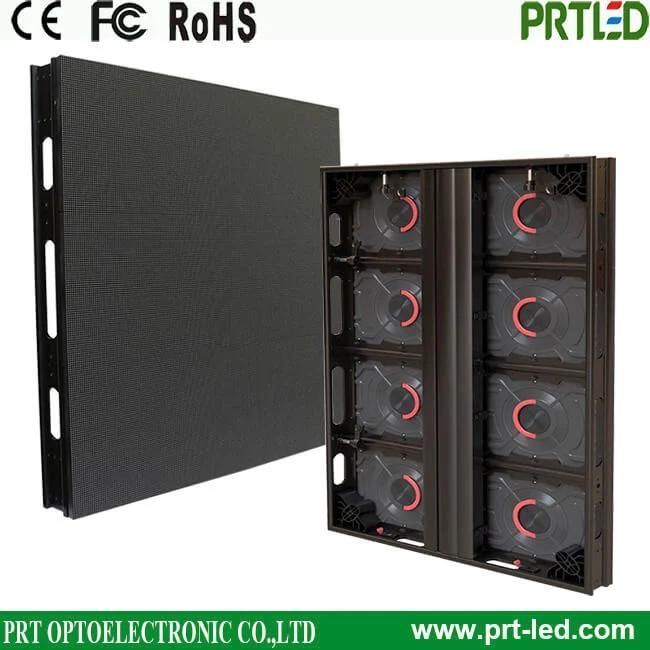

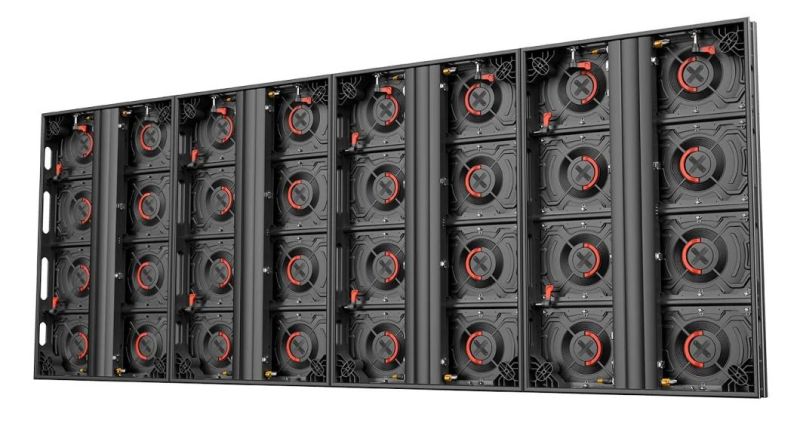

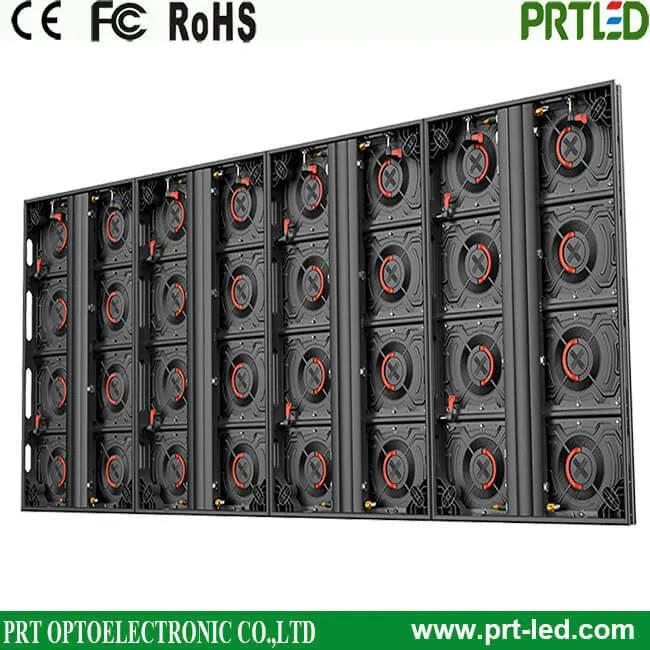

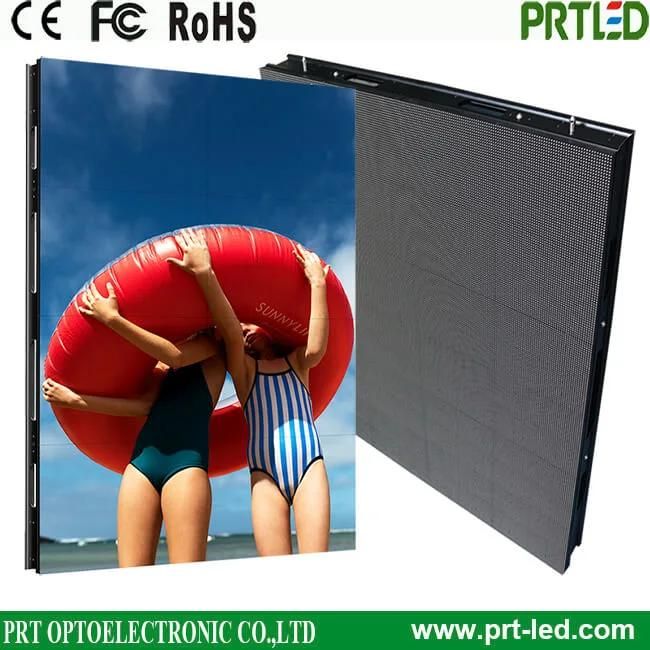

Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display

Xuzhou Whuchan Co., Ltd
  • IP Rating：IP65
  • Pixel Pitch：6.25mm

Base Info

  • Model NO.：P6.25
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display, Energy Saving Display
  • Average Power Consumption：100W,M2
  • Pixel Density：25600 DOT,M2
  • Scanning Mode：1,6 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Weight：28kg,PCS
  • Controller：Nova
  • Maintenance：Rear Service, Front Service
  • Installation Method：Before,After
  • Humidity：10%-95%
  • Operating Temperature：-40~-75t
  • Maximum Power：600W,M2
  • Module Size：400mm*300mm
  • Module Resolution：64*48dots
  • Cabinet Resolution：128*192dots
  • Cabinet Material：Profile Aluminum
  • Refresh Rate：3840Hz
  • LED Lamp：Nationstar
  • Brightness：6800CD,M2

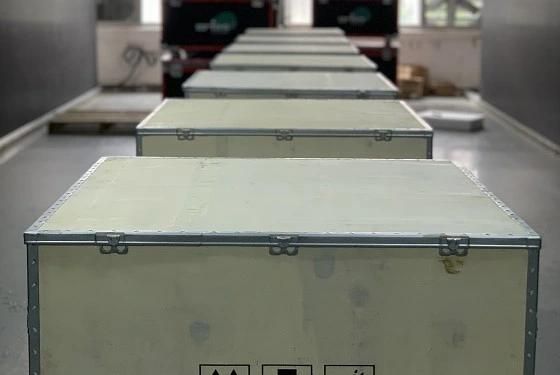

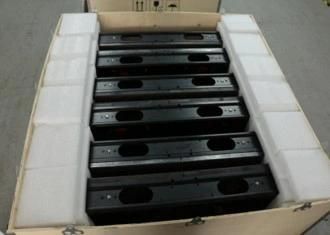

  • Transport Package：Wooden Case
  • Specification：800mm*1200mm*98mm
  • Trademark：neutral
  • Origin：Shenzhen
  • HS Code：8528591090
  • Production Capacity：5000square,Month
  • Package size per unit product：80.00cm * 120.00cm * 9.80cm
  • Gross weight per unit product：28.000kg

Description

P5 SMD Outdoor full Color LED Panel 800x1200mmPixel pitch6.25 mmSize of cabinet/panelW800 x H 1200 x D98 mm or 800x900x98mmResolution of cabinet/panel128 x 192dots/ 128 x 144dotsWeight of Cabinet/panel28kgs/pc /  22.5kgs /pcBrightness>6800 cd/mDensity40000dots/m²Best viewing angle160° /160°Pixel Configuration1R1G1BBest viewing distance5-200MMaximum power consumption<600W/m²Average power consumption<100W/m²Driving method1/6scanControl methodSynchronizationMaintenanceRear /Front service Gray scale16 bitsColor temperature6500k ~14000KWorking voltageAC90-260VWorking temperature-40ºC~+75ºCStorage temperature-55ºC~+120ºCOperating humidity10% ~90%MTBF10000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP grade(Front/Back)IP65/IP65Life Span>100,000 hoursData transafer methodRJ45Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMSystems operating platformWINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary developmentOutdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard DisplayOutdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard DisplayOutdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display


Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display
Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display
Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display


Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display
Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display

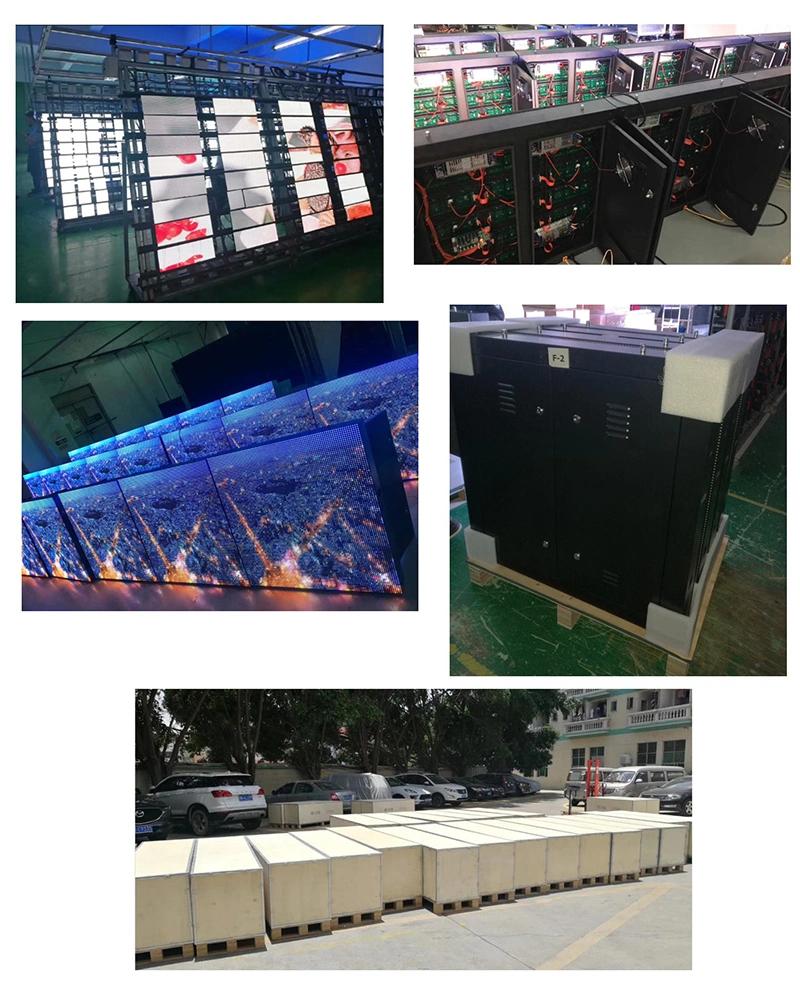

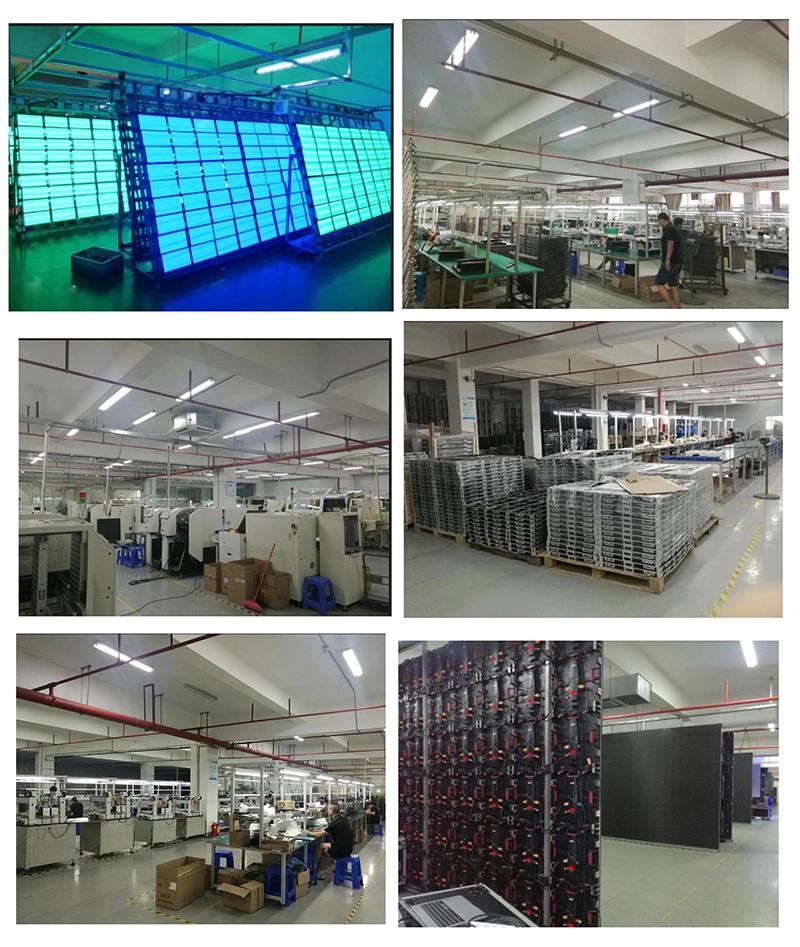

All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers


Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display

Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display

Outdoor Full Color P6.25 Energy Saving 90 Degree LED Billboard Display

Why choose PRT?
  1. PRT is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests
  2. Our prices are high competitive due to our large-scale procurement of raw material.  We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price.

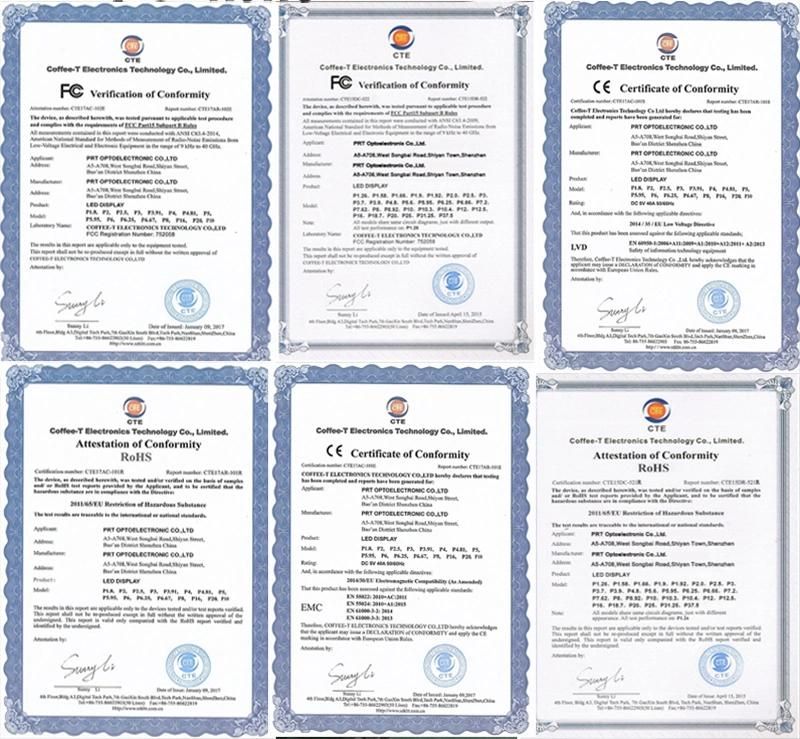

  3. We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China .
  4. We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery.
  5. Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
  6. We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs
 FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.

Thank you for your visit, if you want more details, please contact us without hesitation !
