New Cr708L Multi-Function Test Bench, Cait C9 320d Pump, Eup Eui Heui Common Rail

Shanghai Yifu Packing Products Co., Ltd.
  • After-sales Service：Good Quality Warranty
  • Warranty：1 Year
  • Certification：ISO
  • Condition：New
  • Standard：Nonstandard
  • Language：English

Base Info

  • Model NO.：cr708L
  • Update Method：by Internet
  • Type：Test Bench
  • Transport Package：Plywood Box
  • Specification：4cbm
  • Trademark：FOTMA
  • Origin：China
  • HS Code：8431809090
  • Production Capacity：100pieces,Month

Description

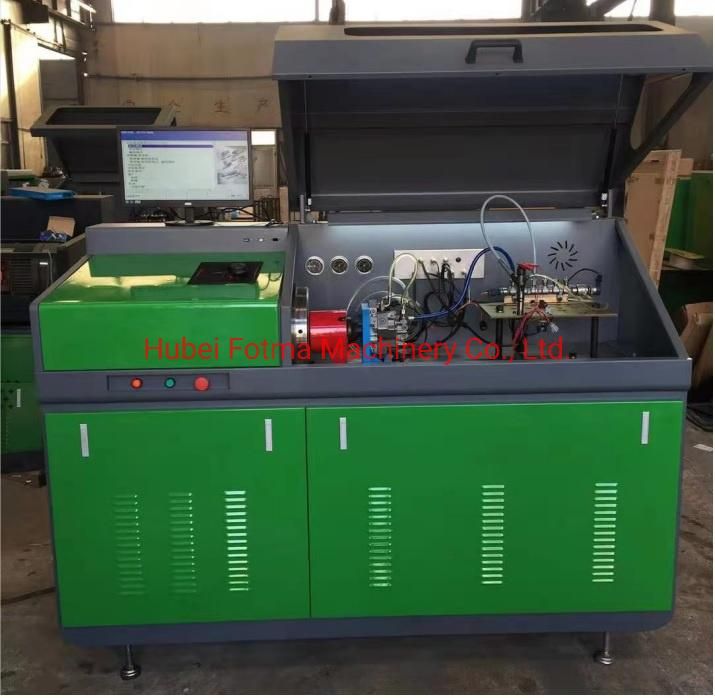

CRS708 common rail test benchVoltage380V/50HZ, 3-phase, Optional: 220V/60HZ 3-phasePower11KW (Standard)   Optional: 15KW 18.5KWDriving couplingISO4008/10115 mm length 116mmTest oil tank capacity32LtCertificationCE/ISO9001Operating conditionsDTC Speed range 0-3500rpmFeeding pumpPower:0.75KW Flow:6.3 L/minHeater2KWMeasurement sensorFlow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600barTemperature rangeMeasuring delta T 0-100 °C Measuring sensor Pt100Test oil typeDIN ISO 4113Size175*77*144 cmWeight with package800KGMaterialsteel
