Waterproof P8 Outdoor LED Video Wall Commercial Advertising Screen HD Board
Hangzhou Mig Packaging Co., Ltd.- IP Rating：IP65
- Pixel Pitch：8mm
Base Info
- Model NO.：P8
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：350W , m²
- Pixel Density：40000pixels,Square Meter
- Scanning Mode：1,5 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, CCC, ISO, SGS
- Brightness：≥5500CD,Square Meter
- Refresh Rate：1920Hz,3840Hz
- View Distance：3--200m
- Exchange Frame Speed：>150frames Per Second
- Life Time：100, 000hours
- Cabinet Material：Steel,Die Casting
- Cabinet Size：960mm*960mm
- Warranty：2 Years
- Transport Package：Wooden Case Packing
- Specification：960mm*960mm
- Trademark：QC
- Origin：China, Guangzhou
- HS Code：8528591090
- Production Capacity：3000 Square Meters , Month
Description
Basic Info.
Model NO. P8 Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display Average Power Consumption 350W / m² Pixel Density 40000pixels/Square Meter Scanning Mode 1/5 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO, SGS Brightness ≥5500CD/Square Meter Refresh Rate 1920Hz/3840Hz View Distance 3--200m Exchange Frame Speed >150frames Per Second Life Time 100, 000hours Cabinet Material Steel/Die Casting Cabinet Size 960mm*960mm Warranty 2 Years Transport Package Wooden Case Packing Specification 960mm*960mm Trademark QC Origin China, Guangzhou HS Code 8528591090 Production Capacity 3000 Square Meters / MonthProduct Description

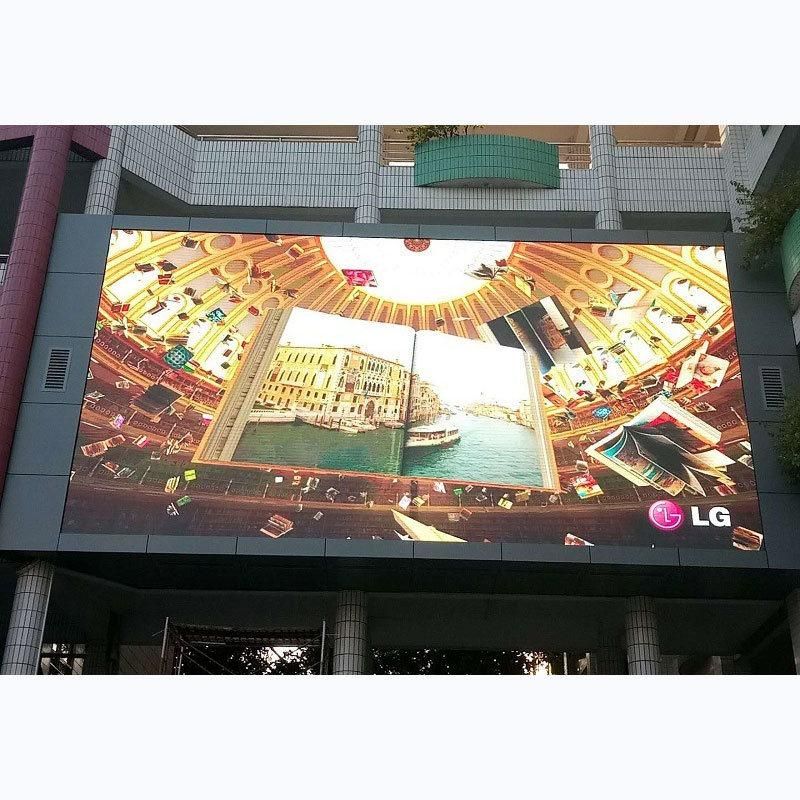

Waterproof P8 outdoor led video wall commercial advertising screen hd board
Technical Parameters
| Pitch Size | 8mm |
| Module Size | 320*160mm |
| Module Pixel(dots) | 40dots*20dots |
| Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD 3-in-1 |
| LED chip | Sanan |
| Color scale | 65536degree/16777216colors |
| Pixel density | 15625pixels/square meter |
| View angle(H/V) | ≥140/140degree |
| Brightness | ≥5500cd/square meter |
| Brightness adjustment | 64 level automatic or manual |
| View distance | 3--200m |
| Power consumption | 100-1200W/square meter |
| Net weight | 41kg/square meter |
| Operating temperature | -25°C~+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| Out of control dot | ≤1/10,000 |
| Whole Display Flatness | ≤1mm Juncture |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 1920Hz/3840Hz |
| Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50/60Hz |
| Operating system | Windows series |
| Drive mode | constant current driving, 1/5 scan |
| Display mode | VGA640X480-VGA1600X1024 |
| Protection Level | IP65 |
| Maintenance way | Rear access |
| Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |

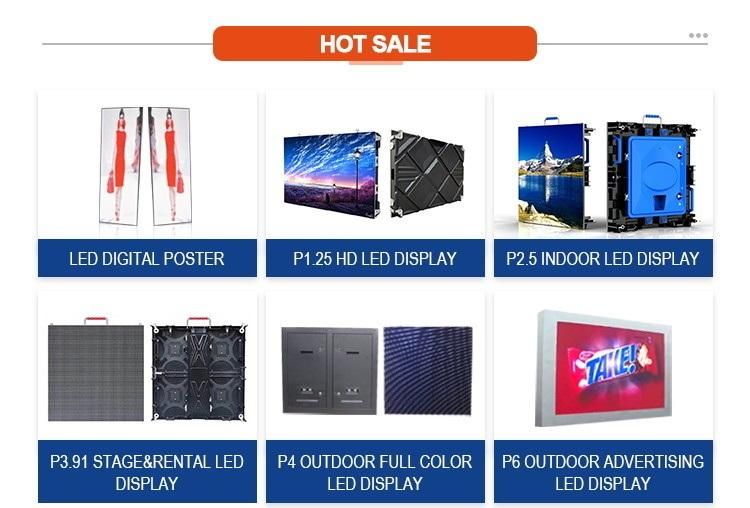

Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P6.67,P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10
Company Information
Packing & Shipping
Payment terms: By T/T in advance, 30% deposit and the balance 70% before shipment.
Delivery time:15-20days
Warranty time:2 years,offer the free spare parts(module & power supply) in advance.After guarantee term,
still supply spare parts with charging only materials cost.

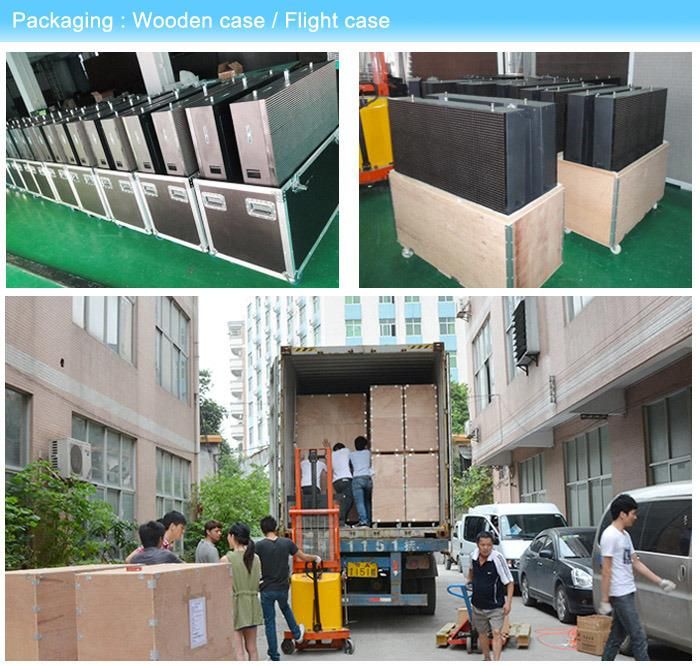

Packing:Standard wooden case packing free,flight case packing
FAQ
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
10 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
High quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before delivery.
6. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
7. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you'll get helpful suggestions from us.
