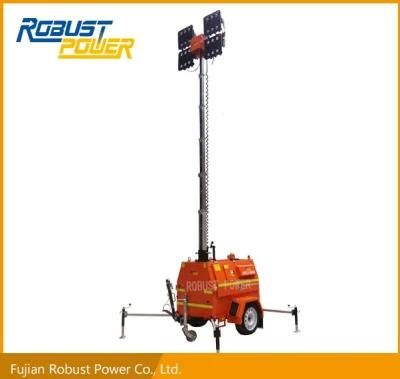

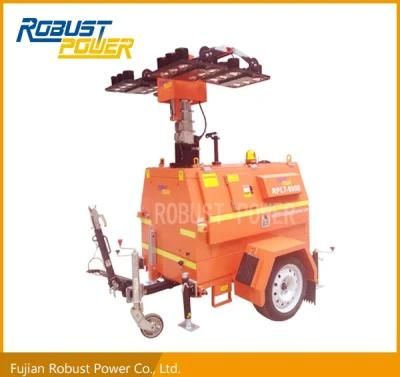

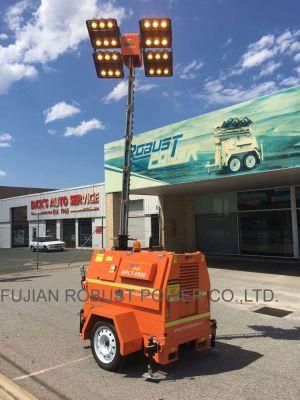

Fully Bunded LED Light Tower

Hebei Rongyuan Plastic Products Co., Ltd.
  • Generator Model：Kubota Z482, 2 Cyclinder, Water Cooled Diesel
  • Fuel Capacity：0.8L,Hr(100litres,Tank)
  • Lighting Paneoptional Colour：6*480W SAA Certified Robust Power LED
  • Engine Speed：1500rpm,1800rpm
  • Warranty：3year
  • Voltage：DC 48V

Base Info

  • Model NO.：RPLT-6900 Fully bunded LED Light tower
  • IP Level for The LED Light Tower：IP65
  • Certificate：Ce,ISO9001:2008,SAA,SGS
  • Optional Color Temperature：2100k-5700k
  • Product Name：Fully Bunded LED Light Tower
  • Transport Package：Plywood Pallet,Plwood Case,Cartons
  • Specification：2850*3400*9000mm
  • Trademark：Robust Power
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：200set,Month

Description

Technical specifications of RPLT-6900 Fully bunded LED Light towerENGINEBrandKubotaModelZ482 2 cylinder vertical liquid cooled dieselFuel consumption0.8/hrALTERNATORType48v dc brushless alternator, self excitationPower generation4kw continuous DCLIGHTINGLighting panels per unit4*480w SAA certified robust power led lampsOptional color temperature2100k-5700kAuto startDusk-dawn auto start/stop timerLongevity3 yearsLumen output1740004-SECTION MASTHydraulic mast extension8mRotation340 degreeTRAILERHeavy duty manual stabilize legs4Transport support legYes600mm fold away tow bar for transportingYesTire size225*16*70mmMINE SPEC CHASSIS AND CABINFuel capacity100LNumber axles1Wheel chocks2Fluid bundingYesELECTRONICS/INSTRUMENT PANELEngine automatic start and shut downOptionalElectric controlled Engine automatic start and shut downOptionalFail-safe shutdown system-high temp, low oil pressure, high voltage, low voltageYesLexzan jump start enabledOptionalSMS communicationOptionalBattery isolatorYesJumper cablesOptionalAlso included: Timer shutdown control, jump start receptacle &jumper leads, emergency stopDimension(L*W*H)1850*1660*2620mm
FAQ:
Q1. Warranty period:
3years for LED lamp.
Q2. International Warranty Service:
Most of products enjoy the International Warranty Service, eg: Cummins, Perkins, Kubota, Stamford, and other world-famous brand, most of Chinese brand without International Warranty Service, but Rubost power will offer after sales service, please do not worried about it.
Q3. Payment terms:
A)30%TT deposit in advance, and 70%balance before shippment.
B) L/C at sight.
If you are interesting in Fully bunded LED Light tower, kindly please contact with us.
