Auto Part Motorcycle Spare Part Wheel Bearing 6000 6002 6004 6200 6204 6300 6302 6400 6402 Zz 2RS Deep Groove Ball Bearing for Electrical Motor, Fan, Skateboard
Hangzhou Xunda Packaging Co., Ltd.- Contact Angle：Nmn
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：6301
- Cage：Steel Brass Nylon
- Weight：0.06kg
- Clearance：C2 C0 C3 C4 C5
- Load Rating(Kn)：Cr:9.7 Cor:4.2
- Limiting Speed：Oil:20000 Grease:14000
- Transport Package：Ours or According to Customer′s Requirements
- Specification：12*37*12
- Trademark：nmn
- Origin：Hebei, China
- HS Code：848210200
- Production Capacity：20000000
Description
Overview
Product ParametersDeep Groove Ball Bearings NMN 0.06 Clearance Load Rating(kN) Cr 9.7 Cor 4.2 Limiting Speed Oil 20000 Grease 14000 Service OEM ODM Sample Available Number Specifiction Load Rating (KN) Limiting Speed (r/min) Weight(Kg/pc) d(mm) D(mm) B(mm) r(mm) Cr Cor Grease Oil 6300 10 35 11 0.6 8.2 3.5 15000 21000 0.053 6301 12 37 12 1.0 9.7 4.2 14000 20000 0.06 6302 15 42 13 1.0 11.4 5.45 13000 18000 0.082 6303 17 47 14 1.0 13.5 6.55 12000 17000 0.115 6304 20 52 15 1.1 15.9 7.9 11000 15000 0.144 6305 25 62 17 1.1 21.2 10.9 10000 13000 0.2193 6306 30 72 19 1.1 26.7 15 8000 10000 0.3498 6307 35 80 21 1.5 33.5 19.1 6800 8000 0.4542 6308 40 90 23 1.5 40.5 24 5800 7200 0.6394 6309 45 100 25 1.5 53 32 5000 6200 0.8362 6310 50 110 27 2.0 62 38.5 4400 5500 1.0822 6311 55 120 29 2.0 74.1 45 4200 5300 1.35 6312 60 130 31 2.1 85.2 52 4000 5100 1.7 6313 65 140 33 2.1 97.5 60 3900 5000 2.1 6314 70 150 35 2.1 111 68 3800 4800 2.5 6315 75 160 37 2.1 119 76.5 3600 5600 3 6403 17 62 17 1.1 22.7 10.8 14000 1600 0.27 6404 20 72 19 1.1 28.5 13.9 12000 14000 0.4 6405 25 80 21 1.5 34.5 17.5 10000 12000 0.53 6406 30 90 23 1.5 43.5 25 8800 10000 0.735 6407 35 100 25 1.5 55 31 7800 9100 0.952 6408 40 110 27 2 63.5 36.5 7000 8200 1.23 6409 45 120 29 2 77 40 6300 7400 1.53 6410 50 130 31 2.1 83 43 5700 6700 1.88 6411 55 140 33 2.1 89 49.5 5200 6100 2.29 6412 60 150 35 2.1 102 0.49 4800 5700 2.77 6413 65 160 37 2.1 111 0.68 4400 5200 3.3 6414 70 180 42 3 128 0.885 4100 4800 4.83 6415 75 190 45 3 138 99 3800 4500 5.72 6416 80 200 48 3 164 125 3600 4200 6.76 6417 85 210 52 4 165 128 3400 4000 7.95 6418 90 225 54 4 184 149 3200 3800 11.4 6419 95 240 55 4 186 153 3000 3500 13.4 6420 100 250 58 4 206 175 2900 3400 15

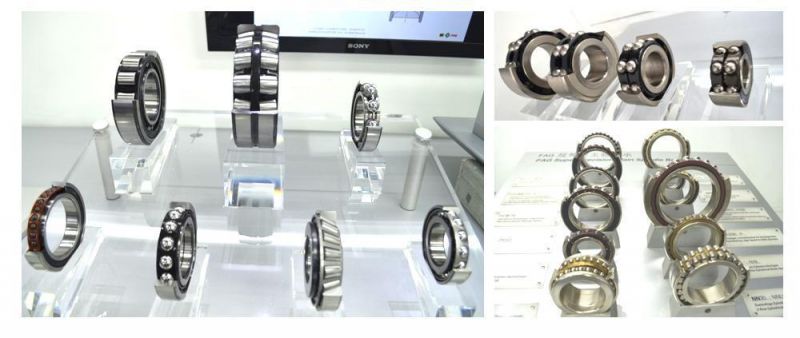

Bearing Models
Applications

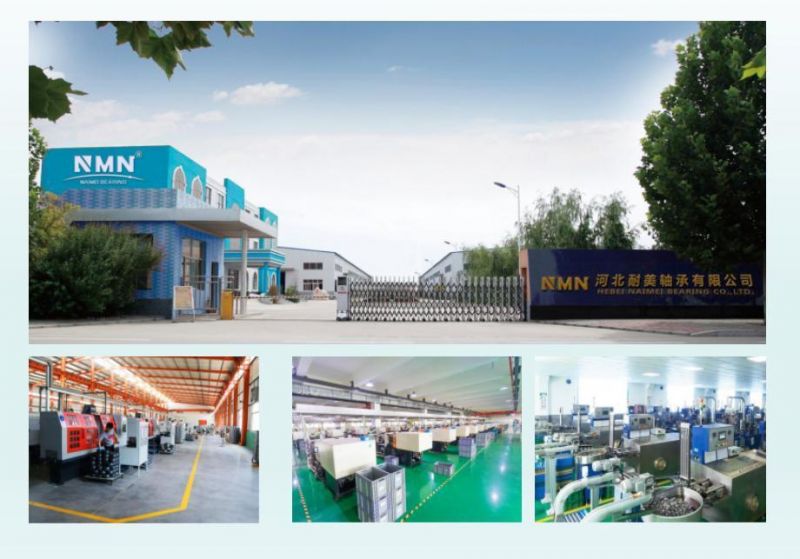

Company Profile
1.Q:Could you supply free sample of bearing for our test?
A:Yes. Please afford the express fee and we will send you the sample within your first order.
2.Q:Sample time?
A:Within 3-4 days.
3.Q:Are you a factory or a Trade Company for Bearing ?
A:We are the factory.
4.Q:Whether you could make your products by our color?
A:Yes, The color of products can be customized if you can meet our MOQ.
5.Q:Could you accept OEM and customize?
A:Yes, OEM and ODM are accepted and we can customize for you according to sample or drawing.
6.Q:Do you have stocks?
A:Yes, most of the bearings showing on alibaba are in stock,especialy big bearings.
