• Model NO.：NSP20W
• Cell Type：Lithium
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product Name：PIR Motion Sensor Integrated Solar Street Light
• Battery：18ah,12V, Lithium Battery
• Controller：MPPT
• Lumen：2000-2100lm
• N.G/G.W (Kg)：9.5 , 10.6
• Transport Package：Standard Export Carton
• Specification：1126*325*44
• Trademark：Newsky Power
• Origin：China
• HS Code：94054090
• Production Capacity：10000 PCS Per Month

Basic Info.

Model NO. NSP20W Cell Type Lithium Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product Name PIR Motion Sensor Integrated Solar Street Light Battery 18ah/12V, Lithium Battery Controller MPPT Lumen 2000-2100lm N.G/G.W (Kg) 9.5 / 10.6 Transport Package Standard Export Carton Specification 1126*325*44 Trademark Newsky Power Origin China HS Code 94054090 Production Capacity 10000 PCS Per Month

Product Description

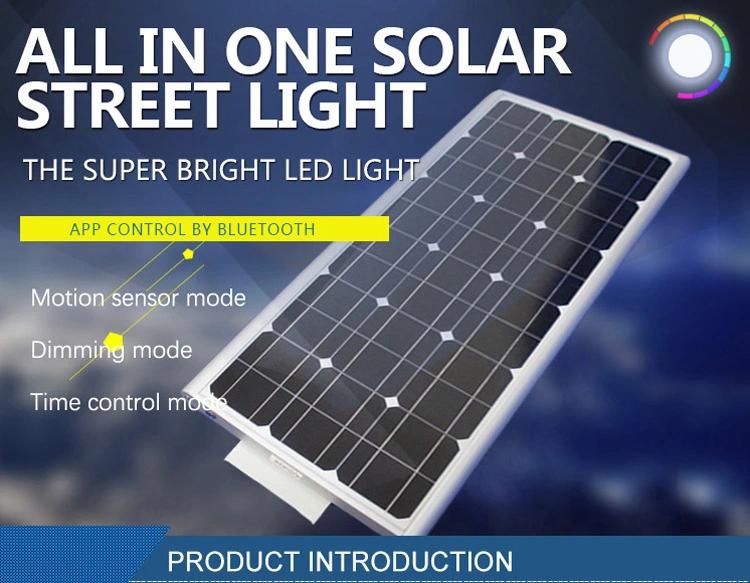

     Waterproof pir motion sensor integrated solar street light with four working modes

Newsky Power engages in designing and supplying superior quality products to fit your local solar lights installation requirements.
Our Solar Street Lighting Products have been successfully applied in more than 60 Countries Including the North America, The Middle America and The Southern America; West Africa, East Africa, South Africa; Europe; South Asia, West Asia, Oceania, For Lighting of highway; roads; bridges; pedestrian streets; mountainous areas; remote areas and other occasions where good lighting effect is required.


Product Adervantages:

1-Solar powered outdoor lighting
2-Easy installation.No cable needed
3-Lithum-ion LiFeP04. life time for 5years

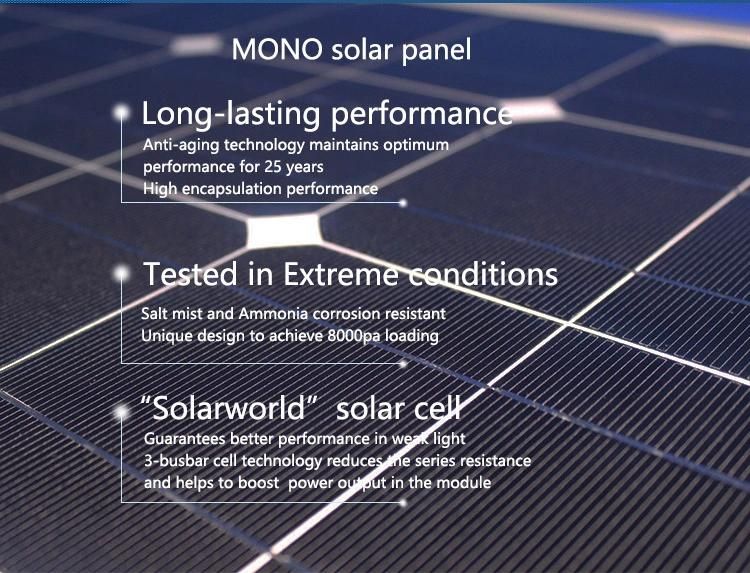

4-Mono solar panel High effiiency. Life time for 25years
5-Bridgelux,USA LED Chip
6-CE/RoHS certification
7-IP65 WATERPROOF
8-It can work continuously in 3-4 rainy days.

Product Specifications:


LED light	20W (Bridgelux,USA)
Battery	18AH/12V, Lithium battery
Solar panel	40W/18V,MONO
Controller	MPPT

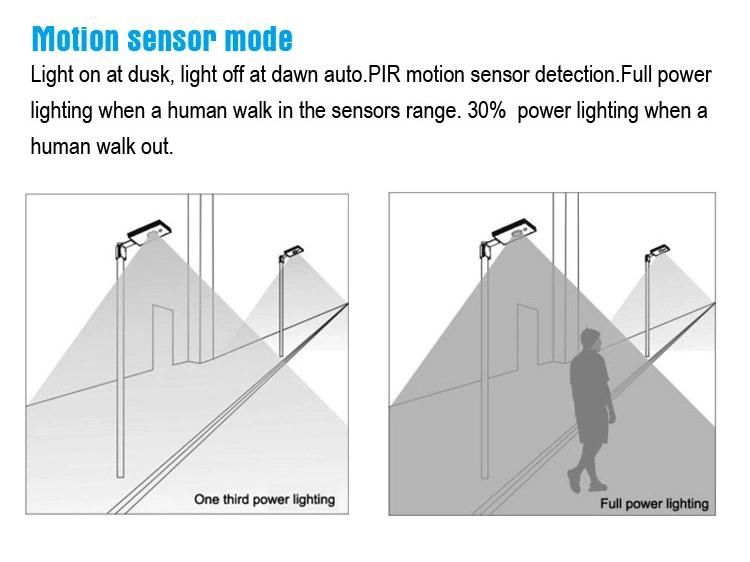

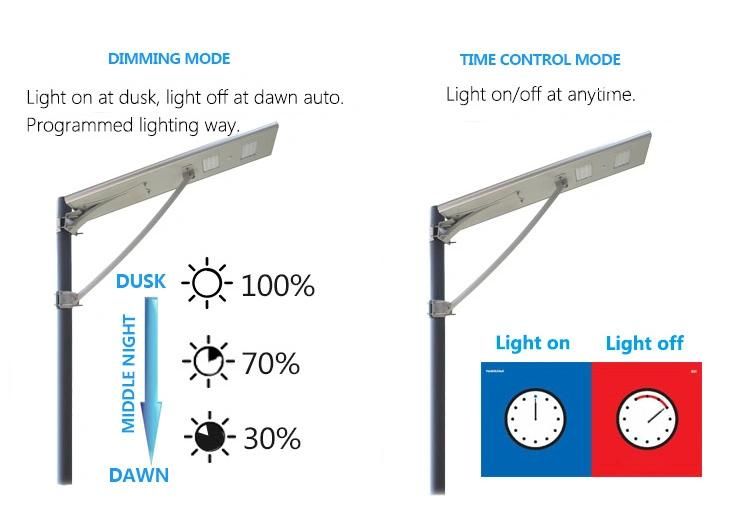

Work mode	Motion sensor+dim light or Constant+dim light
Lumen	2000-2100Lm
Material	Aluminium alloy
Installation height	5-6m
Spacing	18-20m
Remote control	Bluetooth by Mobile phone APP
N.G/G.W (kg)	9.5 / 10.6
Product size(mm)	920*295*44
Carton size(mm)	960*380*210
20'/40' Capacity	400 / 800 units

Product Description:






Product Packaging:



Product Certificate:
