• Model NO.：SMLN-20W

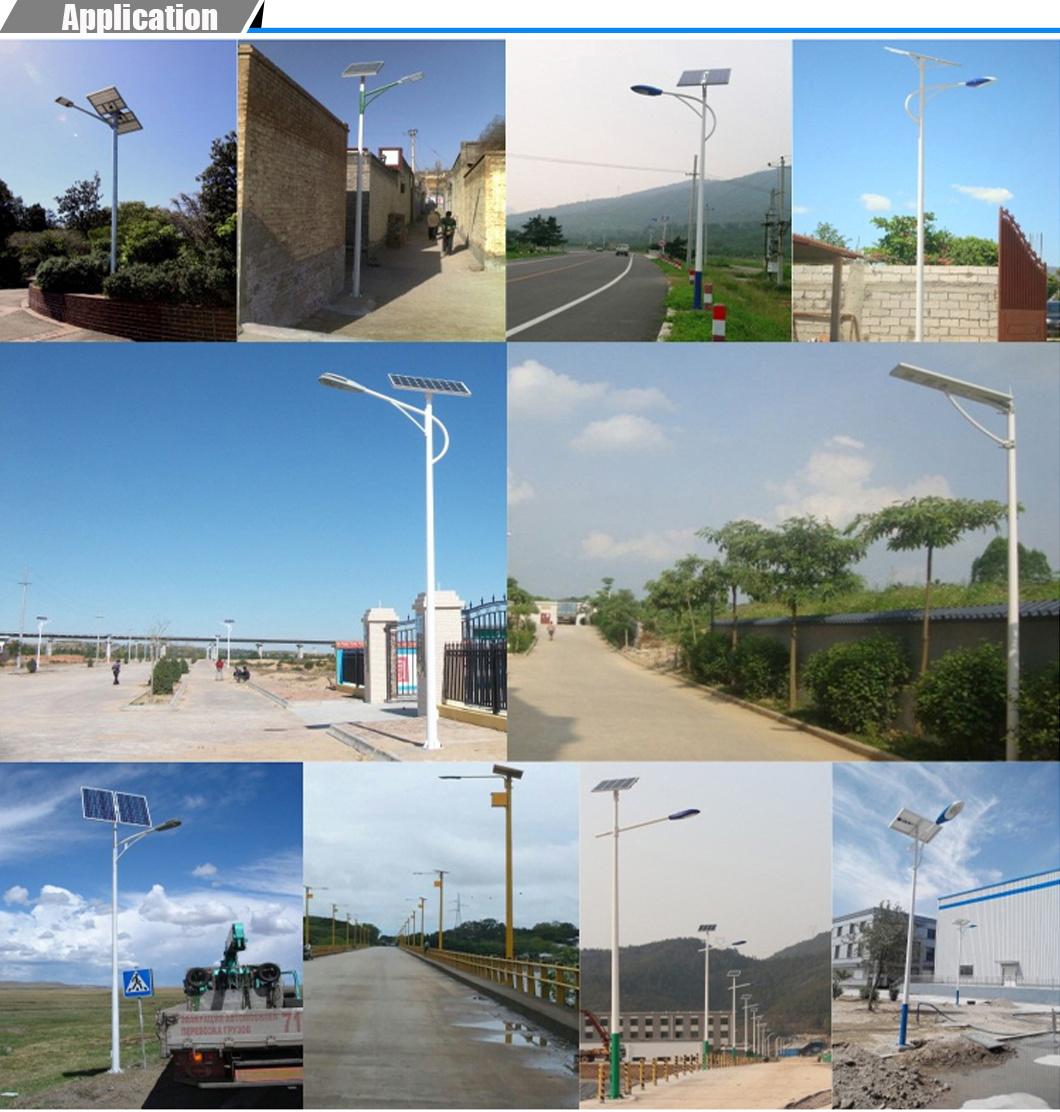

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Working Lifetime(Hour)：50000
• Beam Angle：150*70°

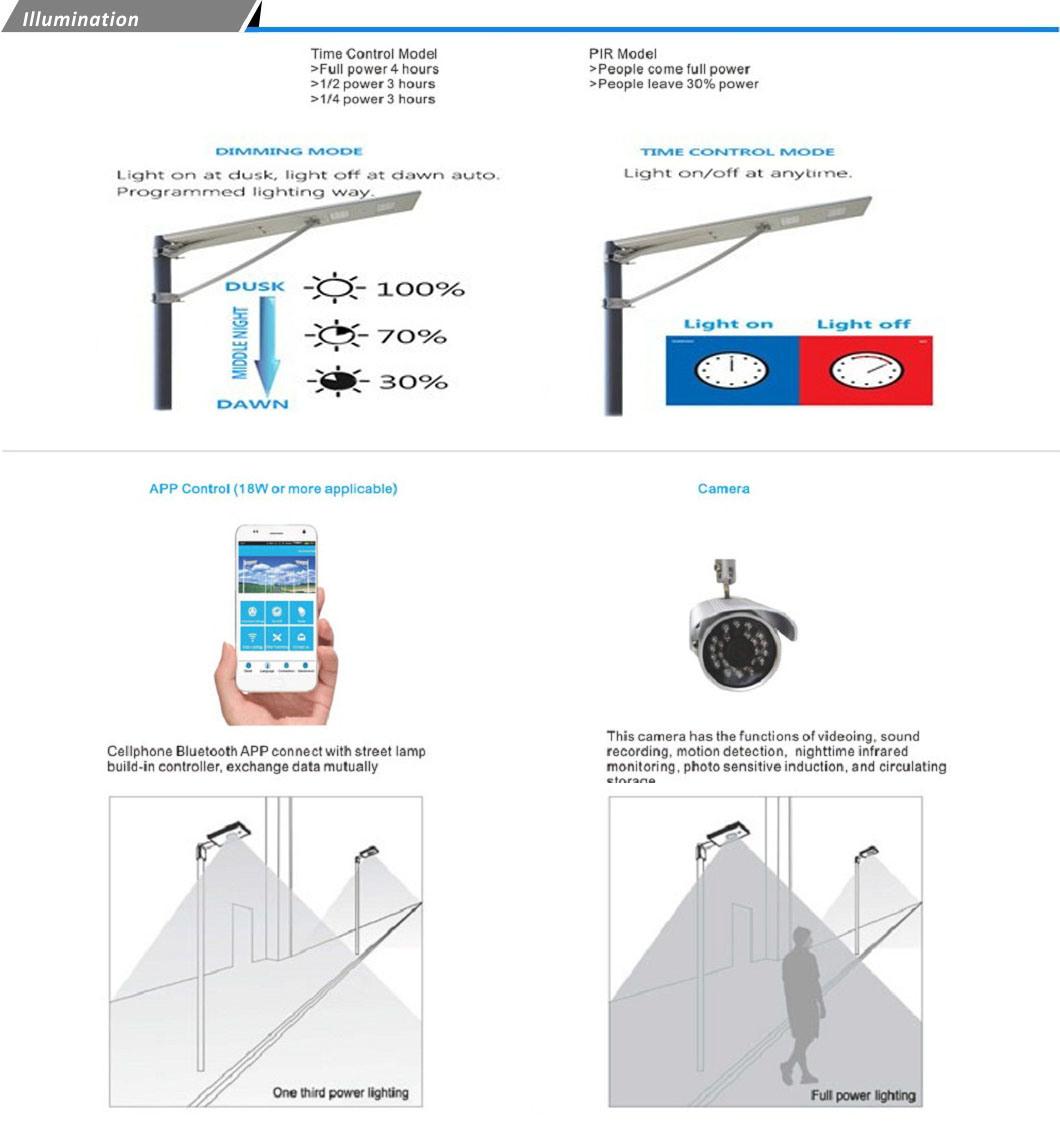

• Working Mode：Full Power and Energy Saving Mode
• Lighting Area：100m²
• Lighting Time：Over 5 Nights
• Controller：MPPT
• Back up Days：3 Days
• Maintenance：9 Years Free Maintenance
• Mounting Height：3m
• Battery：12ah
• LED Chip Brand：USA Bridgelux 210lm,W
• Solar Panel：40W
• Lamp Luminous Flux(Lm)：3600
• Distance Between Poles：10-15m
• Pole Height：7m
• Transport Package：Carton
• Specification：710X405X75mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-20W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Working Lifetime(Hour) 50000 Beam Angle 150*70° Working Mode Full Power and Energy Saving Mode Lighting Area 100m² Lighting Time Over 5 Nights Controller MPPT Back up Days 3 Days Maintenance 9 Years Free Maintenance Mounting Height 3m Battery 12ah LED Chip Brand USA Bridgelux 210lm/W Solar Panel 40W Lamp Luminous Flux(Lm) 3600 Distance Between Poles 10-15m Pole Height 7m Transport Package Carton Specification 710X405X75mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

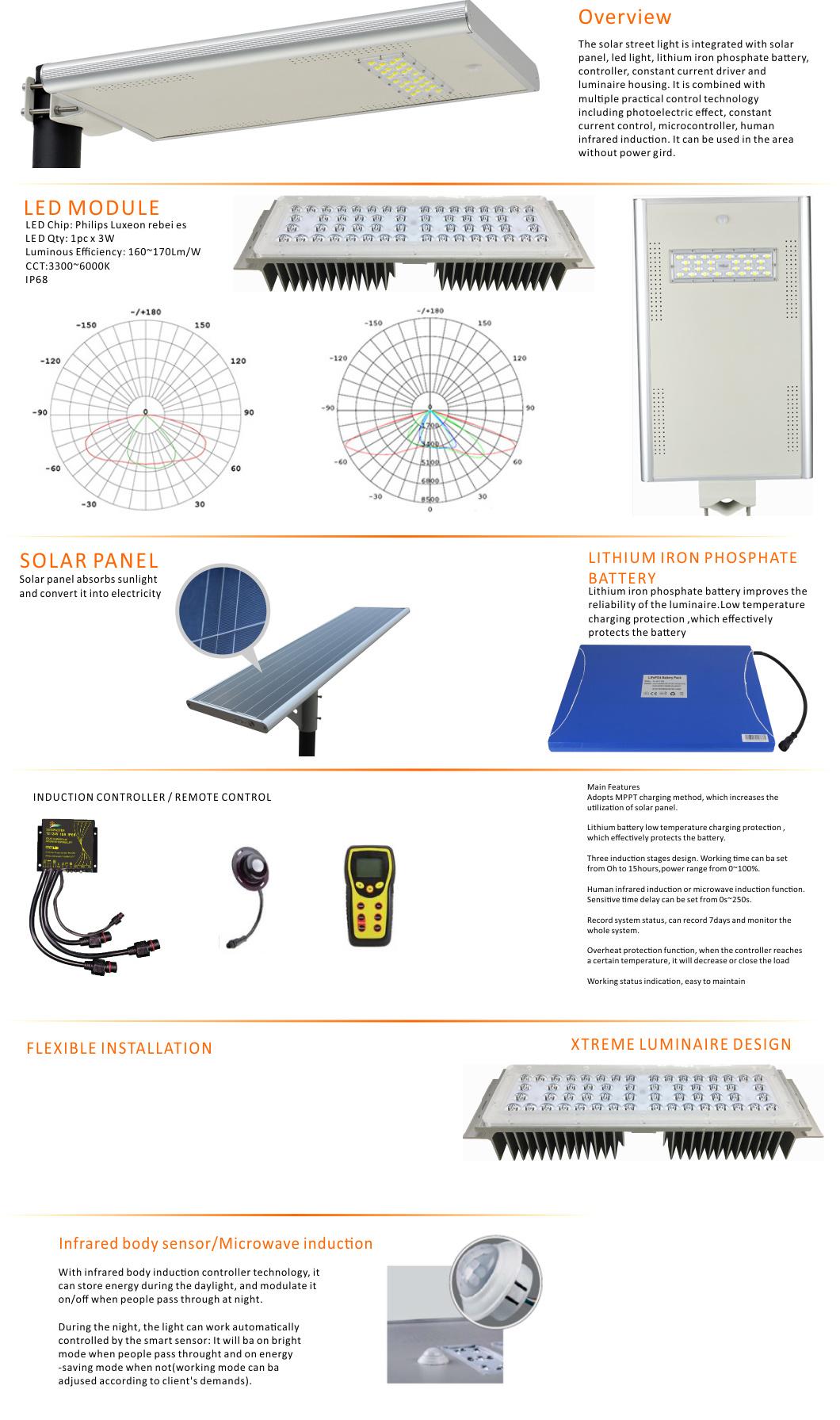

Product Description

1.Remote control-Simple operation, change to different modes easily.
2.Wireless application-Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.

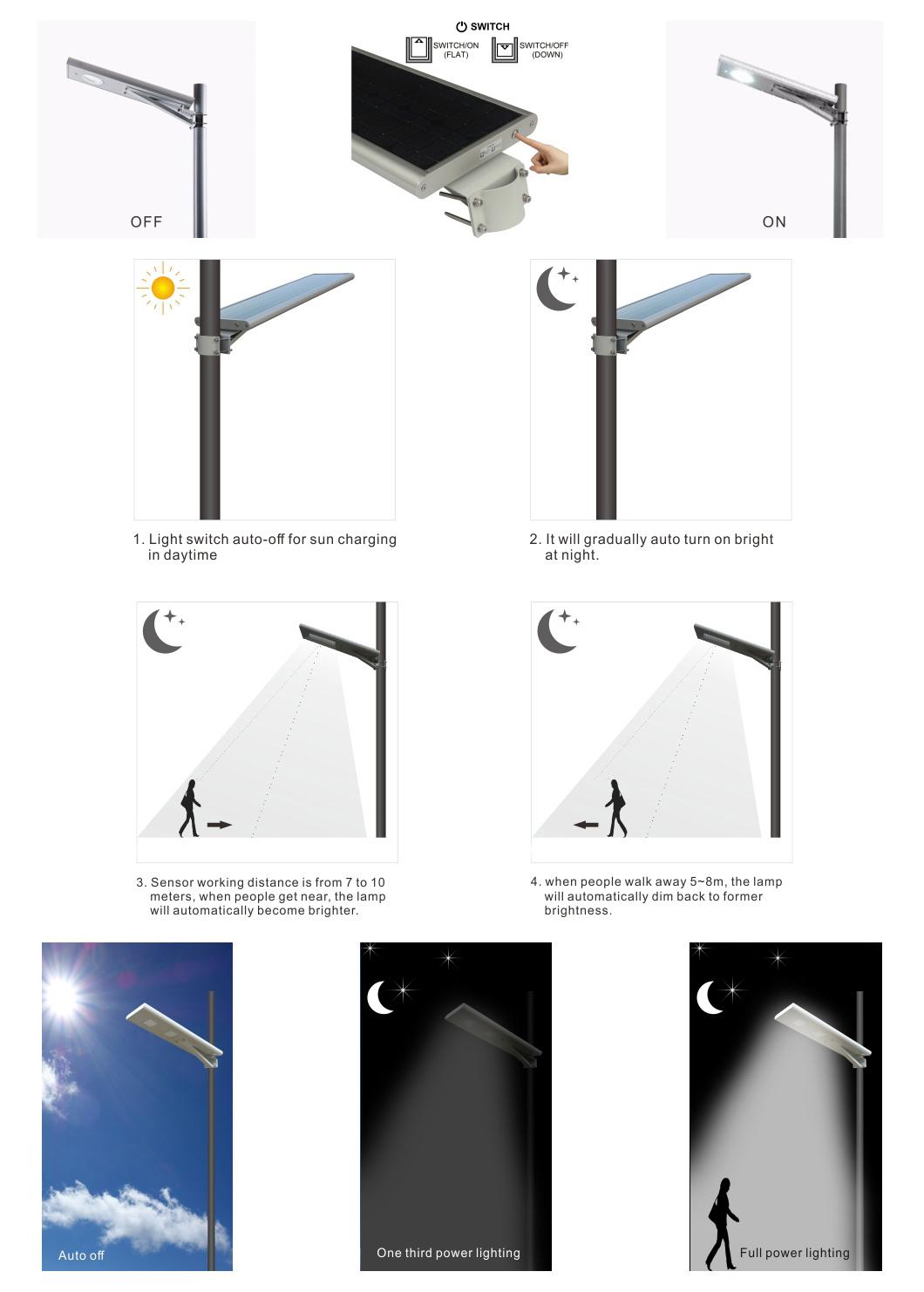

3.Micro-computer controlled-Combine motion sensor system, light control system and time control system.
4.Easy installation-No trench  required, no cables connection required, easy installation in 2 minutes.
5.Lithium battery-Adopt LiFe Po4 lithium battery to replace  gel battery, longer lifetime.
6.Modular design-All components are modular design and easy for expand.
7.Long time working- 12-14 hours each night,3-5 rainy days.
8.Compact design save the trasportation cost

Model NO.	SMLN-20W	Battery Type:	LiFePO4 18Ah/12.8V
Power:	20W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	710*405*75mm
Viewing Angle:	120	Packing Dimension:	750*450*120mm
Working temperature :	,-20 ~ +70	Product Weight	12KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	5-6 m
Solar Panel:	18V 50W Mono-crystalalline	Warranty:	3 years
