• Type：Planetary Gear Box
• Transport Package：Wooden Case
• HS Code：8483409000
• Production Capacity：400PCS,Month



Equivalent To Other Brand :



 Bonfiglioli

 300 Series

 Brevini

 EM/ED/ET/ET

Dynamic oil

RE Series

REGGIANA RIDUTTOR

RR Series

Application:

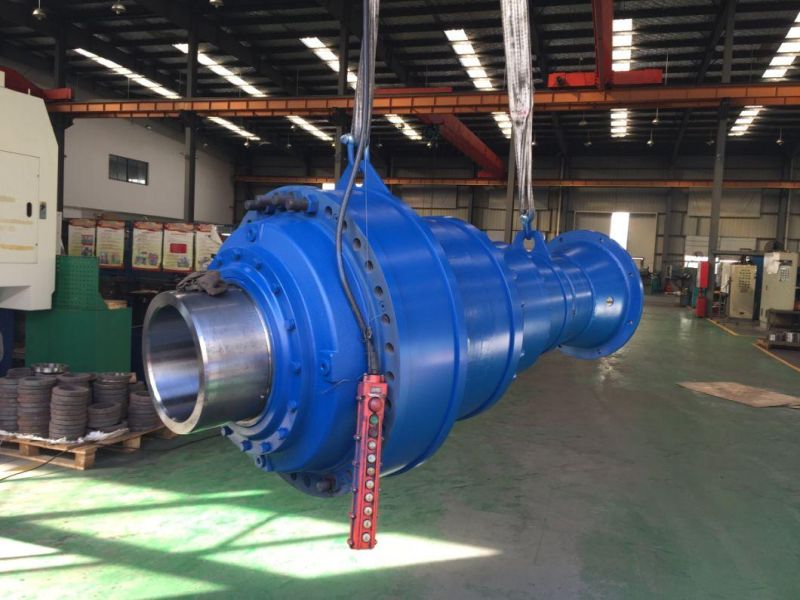

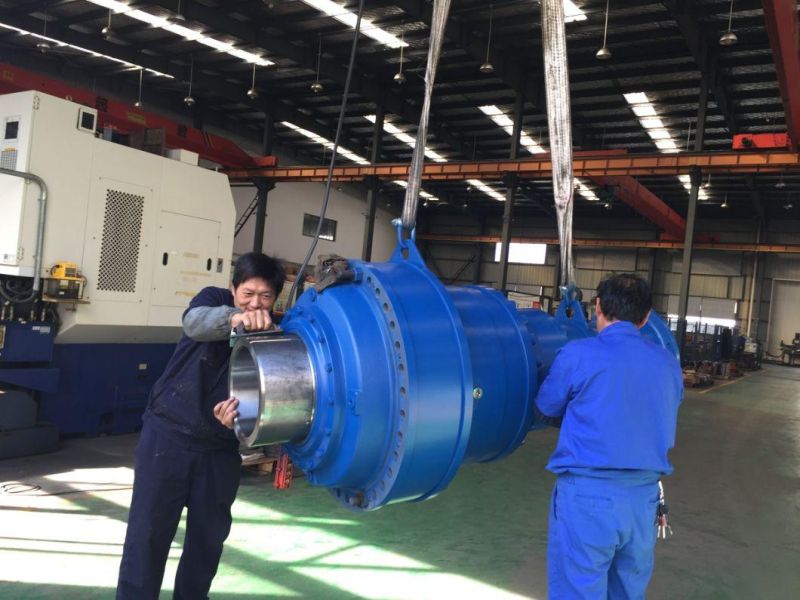

N series planetary speed reducer is widely used for industrial applications. With the designs deriving from modern innovating, the product makes great progress in a compact, price effectiveness and combination. The product configuration is highly versatile due to several options as far as the mounting, the output shaft and the motor interface. With overloading bearing fixed to the output shaft, the products has been one of the powerful solutions to heavy-duty drive problems.


How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :AInput Component 1:AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fanBGear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) 6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination  COutput Component  10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink discD Fittings 16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc
