• Model NO.：WLD-PS-B1
• Paint Mist Treatment：Dry-type
• Condition：New
• Model：Wld-PS-B1
• External Size：7500*3550*3180mm
• Internal Size：6300*3500*2700mm
• Air Speed：>=0.2-0.3
• Total Power：6.7kw
• Air Capacity：15500m3,H
• Lighting：8units*4PCS=32PCS of 36W Lamps.
• Transport Package：Export Standard
• Specification：Standard Type
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：4, 000 pcs,year

Basic Info.

Model NO. WLD-PS-B1 Paint Mist Treatment Dry-type Condition New Model Wld-PS-B1 External Size 7500*3550*3180mm Internal Size 6300*3500*2700mm Air Speed >=0.2-0.3 Total Power 6.7kw Air Capacity 15500m3/H Lighting 8units*4PCS=32PCS of 36W Lamps. Transport Package Export Standard Specification Standard Type Trademark WeiLongDa Origin Guangzhou, China HS Code 84198990 Production Capacity 4, 000 pcs/year

Product Description

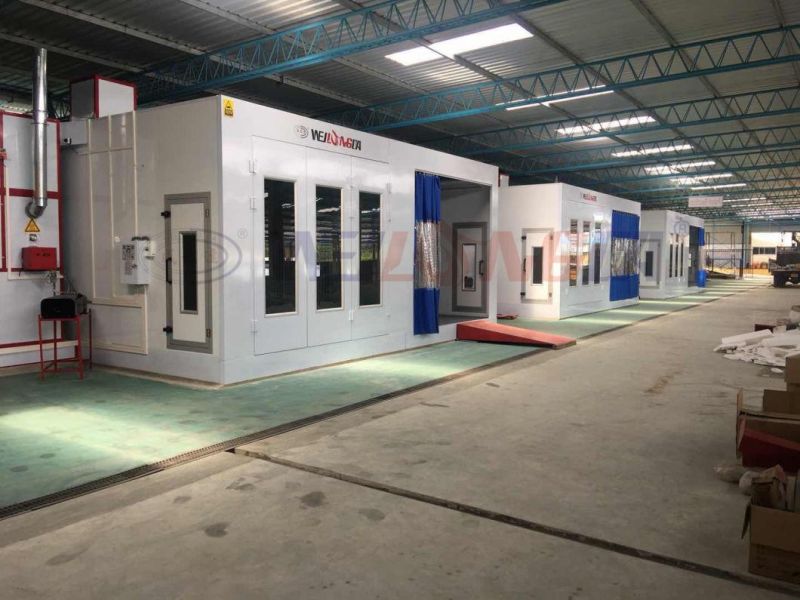

1. CE certificate Approved Preparation station
2. without basement and exhausted air in the back
2. Real preparation station manufactorer in China
3. 1 year warranty
4. High quality and best service

External Size	7500× 3550× 3180mm(L× W× H)
Internal Size	6300× 3500× 2700mm(L× W× H)
Plenum Dimension	6300× 3450× 400mm(L× W× H)
Basement	Without Basement
Room Body	Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains
Lighting System	Ceiling lights 8units × 4pcs=32pcs 36W, 800Lux
Intake and Exhaust System	5.5KW double intake centrifugal fan, air capacity: 15500 m 3 /h. Electric damper for exhaust air
Filtering System	Pre-filter, high efficiency filter, exhaust fiberglass filter
Control System	Fan operation switch, lighting switch, emergency stop
Total Power	6.7 KW
Generator Setting	Exhaust air from rear side, powder coating treatment
Setting Style	Suspending steel hook from roof of building or steel column supporting
