High Quality Car Paint Room, Auto Spray Painting Booth Oven with Diesel Oil Burner Electric Heaters
Yumyth Electronic Tech Co., Limited- Warranty：12months
- Type：Spray Booth
Base Info
- Model NO.：HY-CB55B
- Certification：CCC, CE, CSA, GS, UL
- Substrate：Steel
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：2rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Preparation Room Bay,Car Paint Mix Room
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
- Package size per unit product：500.00cm * 200.00cm * 200.00cm
- Gross weight per unit product：1200.000kg
Description
Basic Info.
Model NO. HY-CB55B Certification CCC, CE, CSA, GS, UL Substrate Steel Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Preparation Room Bay/Car Paint Mix Room Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthPackaging & Delivery
Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1200.000kgProduct Description
Introduction of the High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

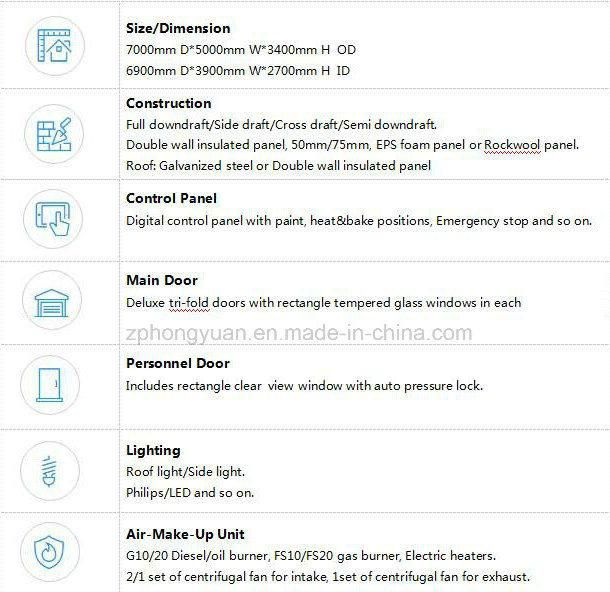

Quick Specification of the High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./gas burner/electricity. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

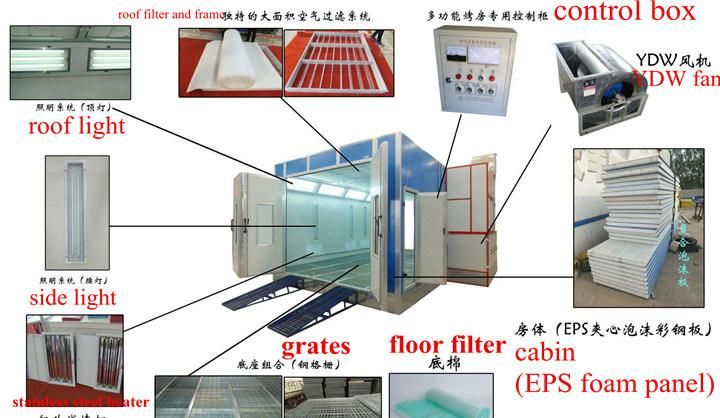

details show of High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters

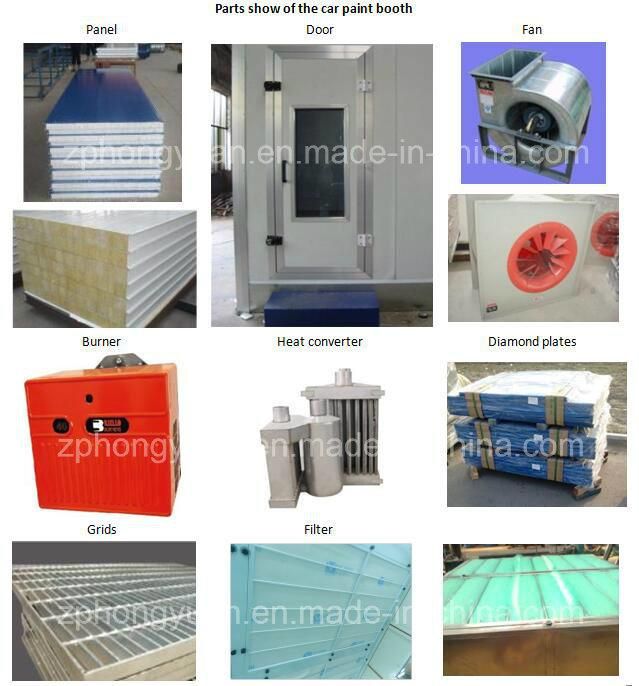

parts show of High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters

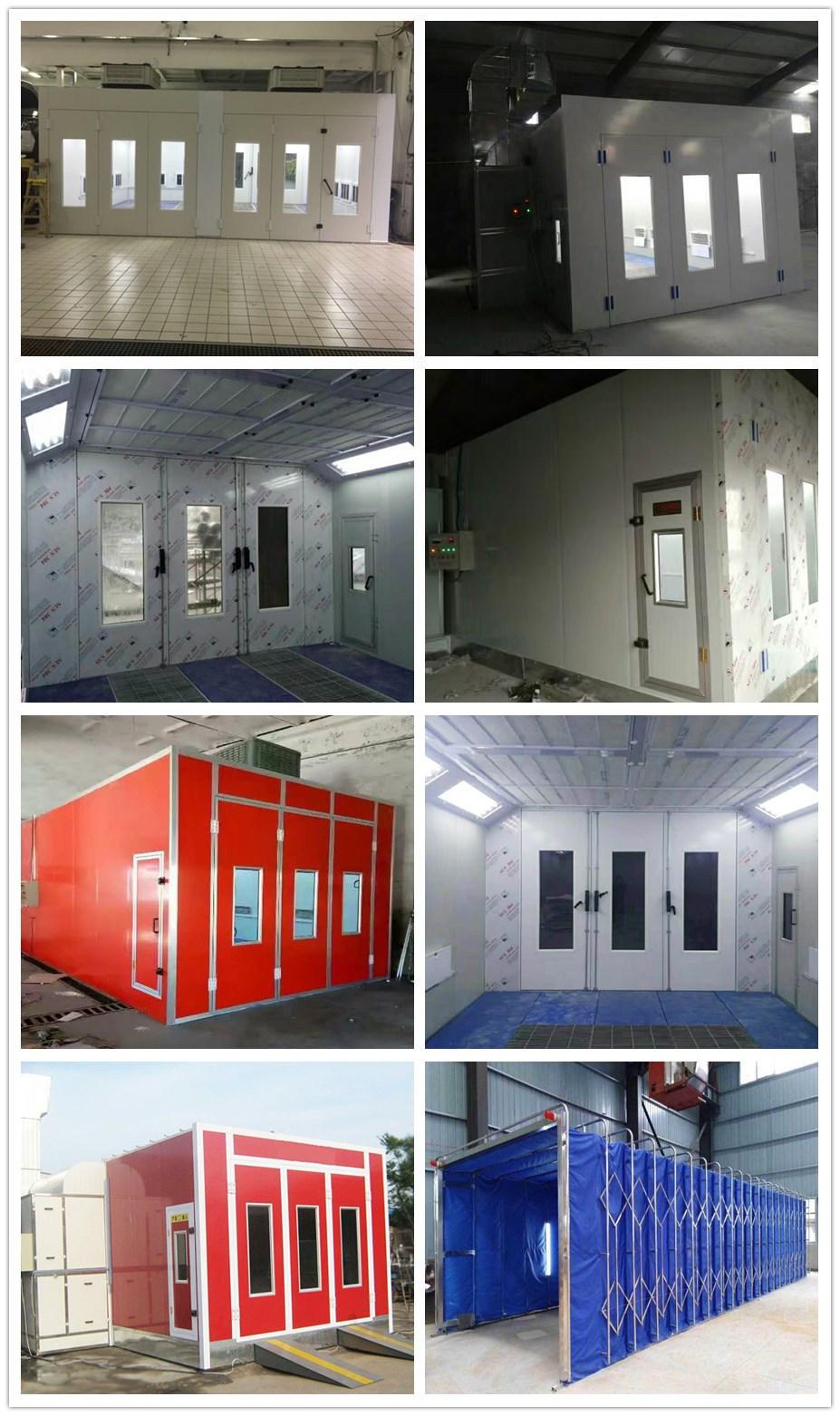

Project case for paint booth/High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about High Quality Car Paint Room, Auto Spray Painting Booth Oven with diesel oil burner electric heaters
