• Model NO.：06-0307-00
• Brand：Lyhy
• Custom Design：Available
• Rolling Body：Ball Bearings
• The Number of Rows：Single
• Outer Dimension：200-6000mm
• Transport Package：Wooden Box
• Specification：ISO2001: 9008
• Trademark：LYHY
• Origin：China
• HS Code：848210900
• Production Capacity：600PCS Per Year

Basic Info.

Model NO. 06-0307-00 Brand Lyhy Custom Design Available Rolling Body Ball Bearings The Number of Rows Single Outer Dimension 200-6000mm Transport Package Wooden Box Specification ISO2001: 9008 Trademark LYHY Origin China HS Code 848210900 Production Capacity 600PCS Per Year

Product Description

Technical Parameter for 06-0307-00 slewing ring bearing/BALL BEARING/slewing bearing
1. Type: Single row ball slewing bearing, rolling bearing, turntables
2. Bore diameter: 234mm
3. Outside diameter: 403.5mm
4. Height: 55mm
5. Material: 42CrMo, 50Mn
6. Precision: P0. P6. P5.
7. Cage/retainer: Nylon or aluminum
8. Gear type: External gear
9. N. W. 25kgs
10. Payment terms: TT, LC, DA

About LYHY bearings

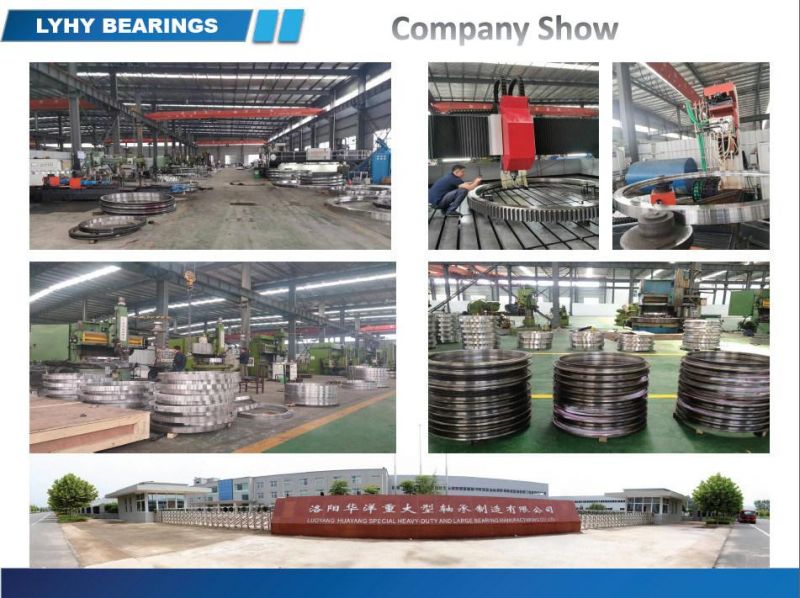

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia


1. Introduction of LYHY single row ball slewing ring bearings
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer's different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.
The single row ball slewing ring bearing is composed of 2 seat-rings. The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.

2. Structure:
Single row ball slewing bearing has three different types:
Single row ball slewing bearing with no gear
Single row ball slewing bearing with external gear
Single row ball slewing bearing with internal gear




3. Features
Single row ball slewing ring bearings have following features:
Compact in structure and light in weight.



4. Application:
Single row ball slewing ring bearings are widely used in slewing conveyers, welding arm and positioned, medium duty cranes, excavators and other engineering machines

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers  demand to be packed;



Technical parameter for slewing bearing,rolling bearing

External Diameter	Internal Diameter	Height	Weight	Module	Gear No.	Model	*
244	125	25	5	2	120	01 0181 02	STD
318	169	45	14	3	104	01 0235 00	STD
379	210	45	20	4	92	01 0289 06	STD
403.5	234	55	25	4.5	88	06 0307 00	STD
440	265	50	28	4.5	95	01 0342 00	STD
505	304	56	32	5	99	21 0411 01	SL
505	342	56	32	5	99	31 0411 01	SLBP
529	323	54	45	5	103	01 0422 01	STD
535	305	75	61	8	65	06 0400 00	STD
589	383	75	62	5	116	06 0475 22	STD
640	434	56	44	6	105	21 0541 01	SL
640	472	56	46	6	105	31 0541 01	SLBP
654	390	85	98	8	80	06 0508 00	STD
689	455	74	89	6	112	01 0555 01	STD
700	479	77	85	6	114	06 0574 09	STD
742	534	56	52	6	122	21 0641 01	SL
742	572	56	55	6	122	31 0641 01	SLBP
774	516	82	118	8	94	01 0626 00	STD
816	573	90	129	6	132	06 0675 00	STD
840	634	56	60	6	138	21 0741 01	SL
840	672	56	62	6	138	31 0741 01	SLBP
863	679	82	102	6	142	01 0765 01	STD
886	610	85	155	8	108	06 0734 00	STD
950	734	56	68	8	117	21 0841 01	SL
950	772	56	71	8	117	31 0841 01	SLBP
979	717	100	178	10	94	06 0823 18	STD
1022	770	82	159	8	125	01 0880 00	STD
1046	834	56	76	8	129	21 0941 01	SL
1046	872	56	78	8	129	31 0941 01	SLBP
1094	833	82	179	8	134	01 0947 00	STD
1144	869	100	228	10	111	06 0980 09	STD
1198	984	56	86	8	148	21 1091 01	SL
1198	1022	56	91	8	148	31 1091 01	SLBP
1218	930	98	268	10	119	01 1050 00	STD
1289.5	984	114	330	10	125	06 1116 00	STD
1358	1045	98	325	10	133	01 1180 00	STD
1431	1200	63	176	8	177	01 1295 01	STD
1476	1084	110	503	10	144	06 1250 21	STD
1604	1206	130	653	10	157	06 1390 03	STD
1605	1270	110	469	12	131	01 1410 00	STD
1727	1500	63	213	8	214	01 1595 00	STD
1836	1433	135	791	16	112	06 1595 04	STD
1929	1565	110	617	14	135	01 1712 00	STD
1975	1750	63	244	8	245	01 1845 02	STD
2027	1615	150	1004	14	142	06 1790 09	STD
2140	1720	130	953	16	131	01 1895 00	STD
2165	1950	68	278	8	269	01 2040 03	STD
2267	1815	140	1174	16	139	06 2002 00	STD
2342	2091	70	373	8	290	01 2202 00	STD
2390	1950	130	1111	18	130	01 2130 00	STD
2534	2042	144	1482	18	138	06 2242 00	STD
2695	2425	63	411	8	335	01 2560 01	STD
2790	2290	164	1895	18	151	06 2500 01	STD
3116	2600	164	2200	20	152	06 2810 09	STD
3200	2914	190	716	10	318	01 3031 00	STD

Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings

Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV


Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.

Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.

Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.

Q: Is sample available?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
