• Model NO.：SMLN-70W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden, Street, out Door Court, Road
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Pole Height：9m
• Solar Panel：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• LED Chip Brand：USA Bridgelux 210lm,W
• Mounting Height：6m
• Maintenance：8 Years Free Maintenance
• Back up Days：7 Days
• Controller：Light+ Time Control
• Lighting Time：Over 3 Nights
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• Transport Package：Carton, Pallet
• Specification：1144X450X140mm
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. SMLN-70W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street, out Door Court, Road IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Pole Height 9m Solar Panel Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap LED Chip Brand USA Bridgelux 210lm/W Mounting Height 6m Maintenance 8 Years Free Maintenance Back up Days 7 Days Controller Light+ Time Control Lighting Time Over 3 Nights OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC Transport Package Carton, Pallet Specification 1144X450X140mm Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Product Description

1.Remote control-Simple operation, change to different modes easily.

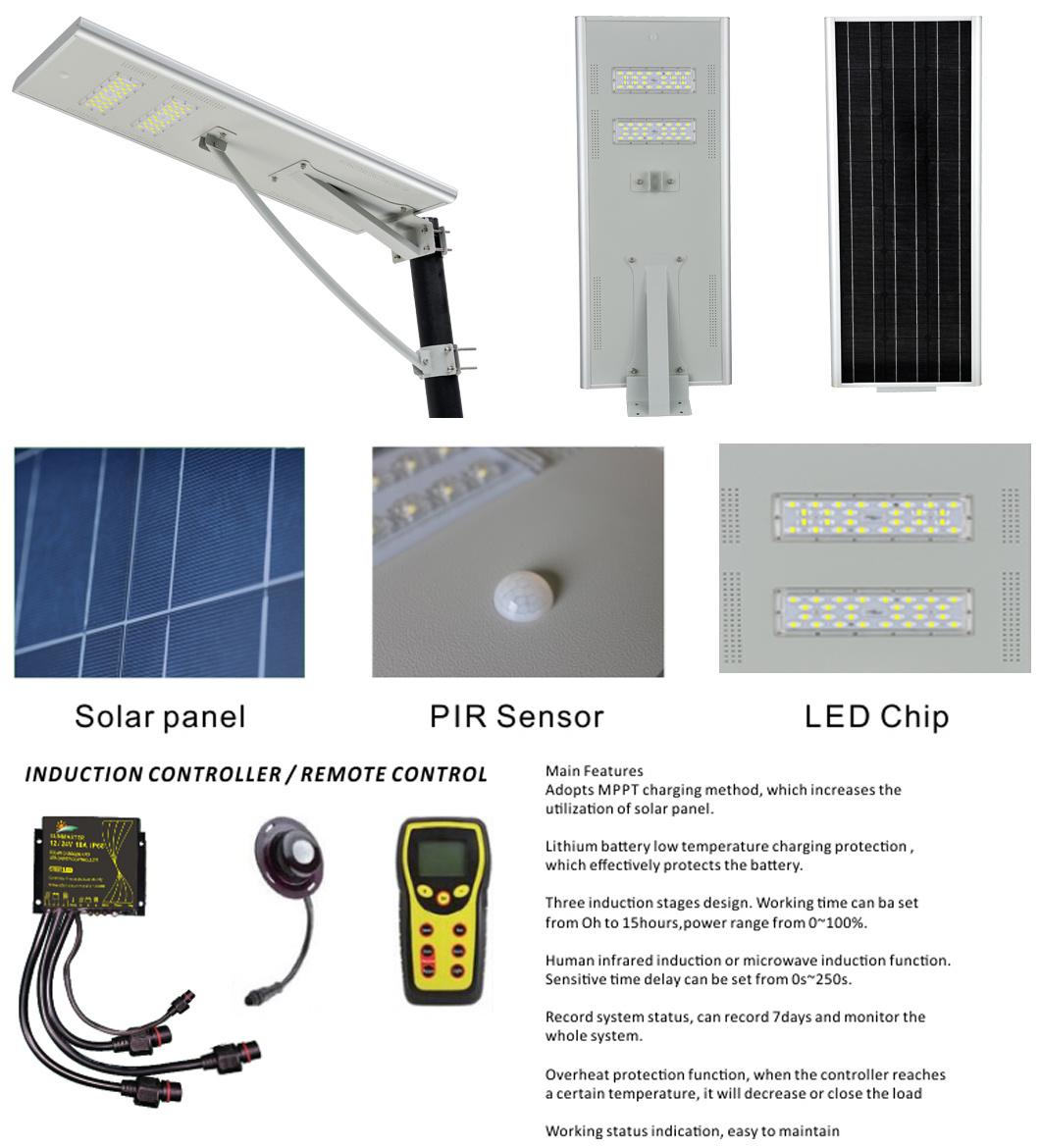

2.Wireless application-Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.

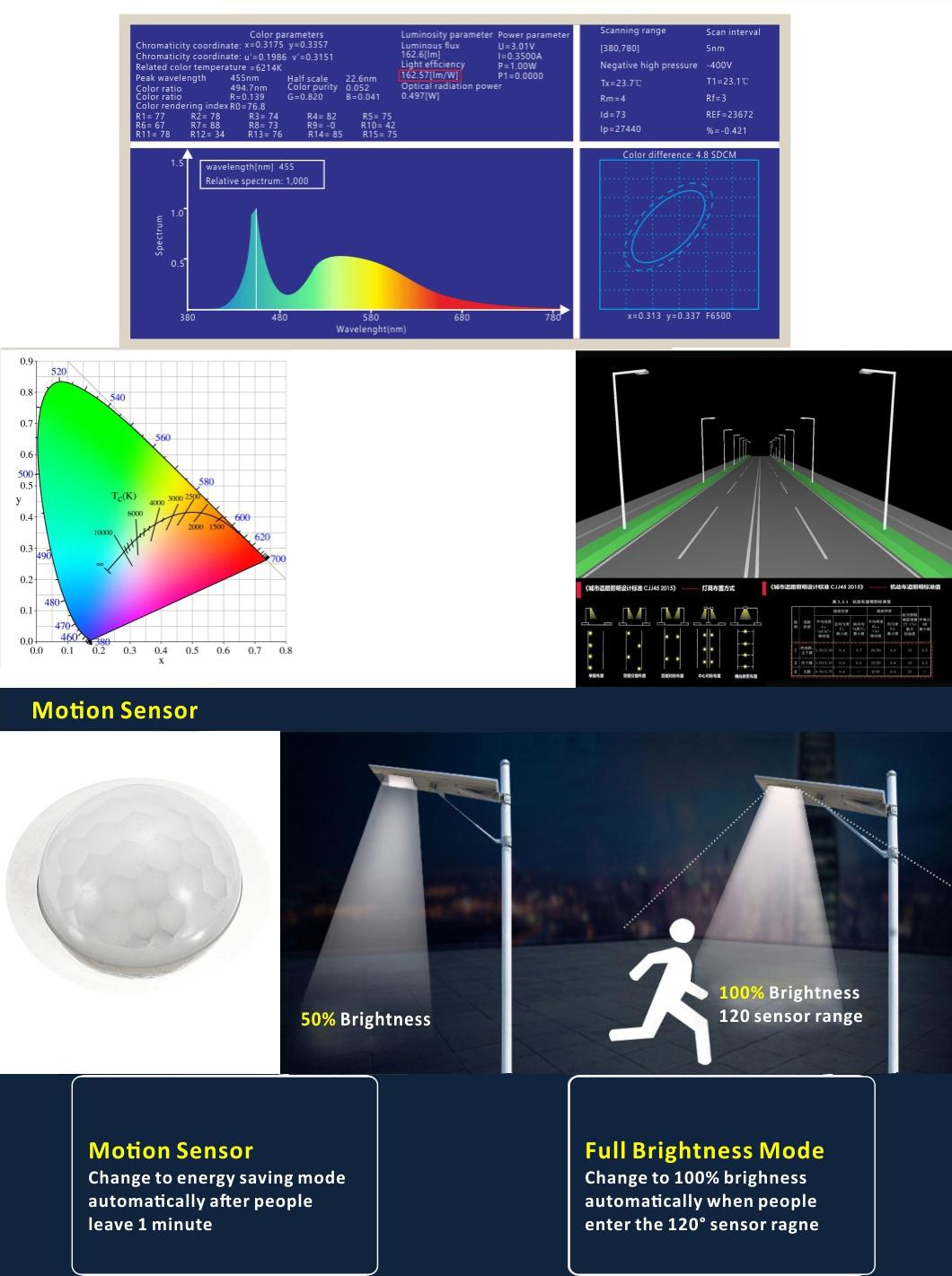

3.Micro-computer controlled-Combine motion sensor system, light control system and time control system.
4.Easy installation-No trench  required, no cables connection required, easy installation in 2 minutes.
5.Lithium battery-Adopt LiFe Po4 lithium battery to replace  gel battery, longer lifetime.
6.Modular design-All components are modular design and easy for expand.
7.Long time working- 12-14 hours each night,3-5 rainy days.
8.Compact design save the trasportation cost

Model NO.	SMLN-70W	Battery Type:	LiFePO4 45Ah/12.8V
Power:	70W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1144*450*470mm
Viewing Angle:	120	Packing Dimension:	1180*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	22.2kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	7-9 m
Solar Panel:	18V 100W Mono-crystalalline	Warranty:	3 years
