• Model NO.：P9.59
• Pixel Density：10873DOT,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display

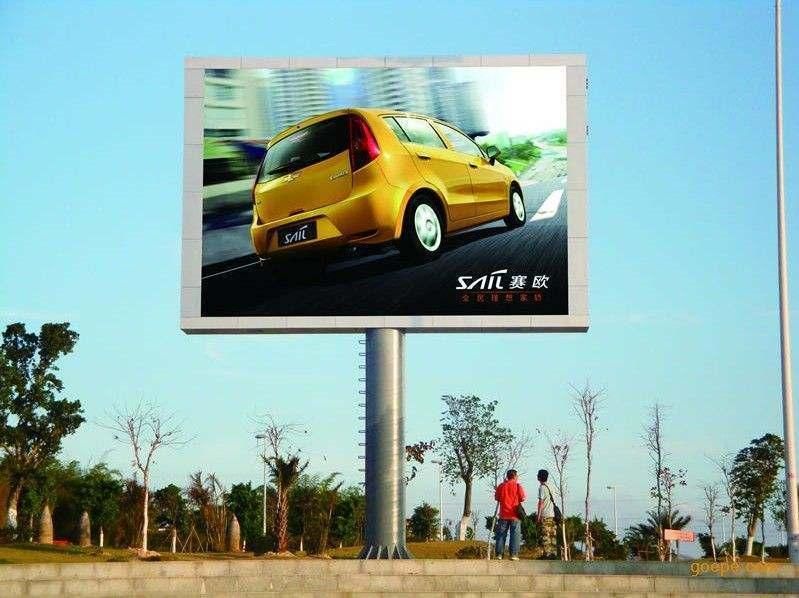

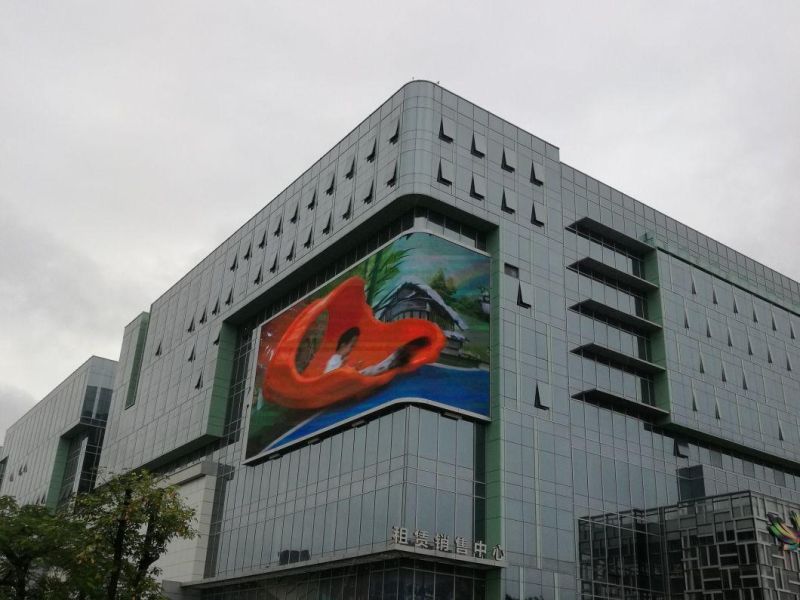

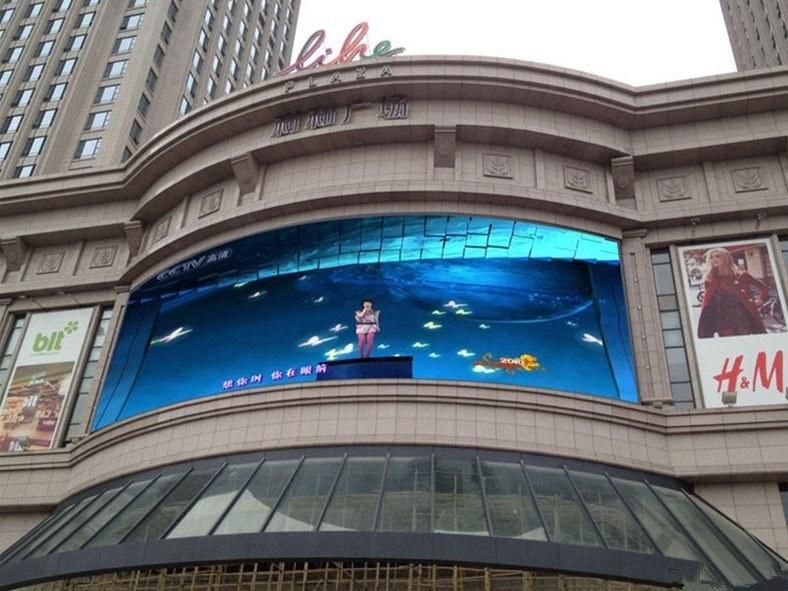

• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：1*1feet
• Cabinet Size：4*8feet
• Transport Package：Wood Box Packing
• Specification：500*1000mm
• Trademark：OSCARLED
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：500m2,M

Chapter 1  Specification and main technical index(1)Construction Description 1,Screen consists of cabinets ,cabinet consist of modules
