• Model NO.：Preparation bay
• Heating Mode：No
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6300X3450X2800mm(Lwxh)
• Outside Dimension：7550X3550X3500mm(Lxwxh)
• Ceiling System：6400X3550X520mm, with Lights on 2 Sides of Roof
• Intake & Exhaust Air System：1 Set 7.5kw Centrifugal Fan for Exhaust Air
• Sealed Type：3 Sides with 50mm EPS, or 3 Sides with PVC Curtain
• Filtering System：Fiber Glass Filter
• Lighting System：8units X4=32PCS36W
• Total Power：9kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carto
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month

Basic Info.

Model NO. Preparation bay Heating Mode No Paint Mist Treatment Dry-type Condition New Inside Dimension 6300X3450X2800mm(Lwxh) Outside Dimension 7550X3550X3500mm(Lxwxh) Ceiling System 6400X3550X520mm, with Lights on 2 Sides of Roof Intake & Exhaust Air System 1 Set 7.5kw Centrifugal Fan for Exhaust Air Sealed Type 3 Sides with 50mm EPS/ or 3 Sides with PVC Curtain Filtering System Fiber Glass Filter Lighting System 8units X4=32PCS36W Total Power 9kw Transport Package Export Container /Pallet /Disassembly with Carto Specification CE, SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 8424899990 Production Capacity 196sets/Month

Product Description

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the conbinetion spray booth /preparation bay you need .

Inside dimension	6300×3450×2800mm(L×W×H)
Outside dimension	7550×3550×3500mm(L×W×H)
Basement & Floor	no
Ramp	no
Ceiling System	Dimension:6400×3550×520mm(L×W×H), with lights on 2 sides of roof, part of roof with air-proof plate,other part with filter.
Generator Setting	Back exhaust air,with quadrate steel frame, blue coated steel
Intake & Exhaust air system	Generator dimension: 1300×1100×1100mm (L×W×H); with 1set 7.5KW centrifugal fan for exhaust air; Air capacity:21000m³/h,

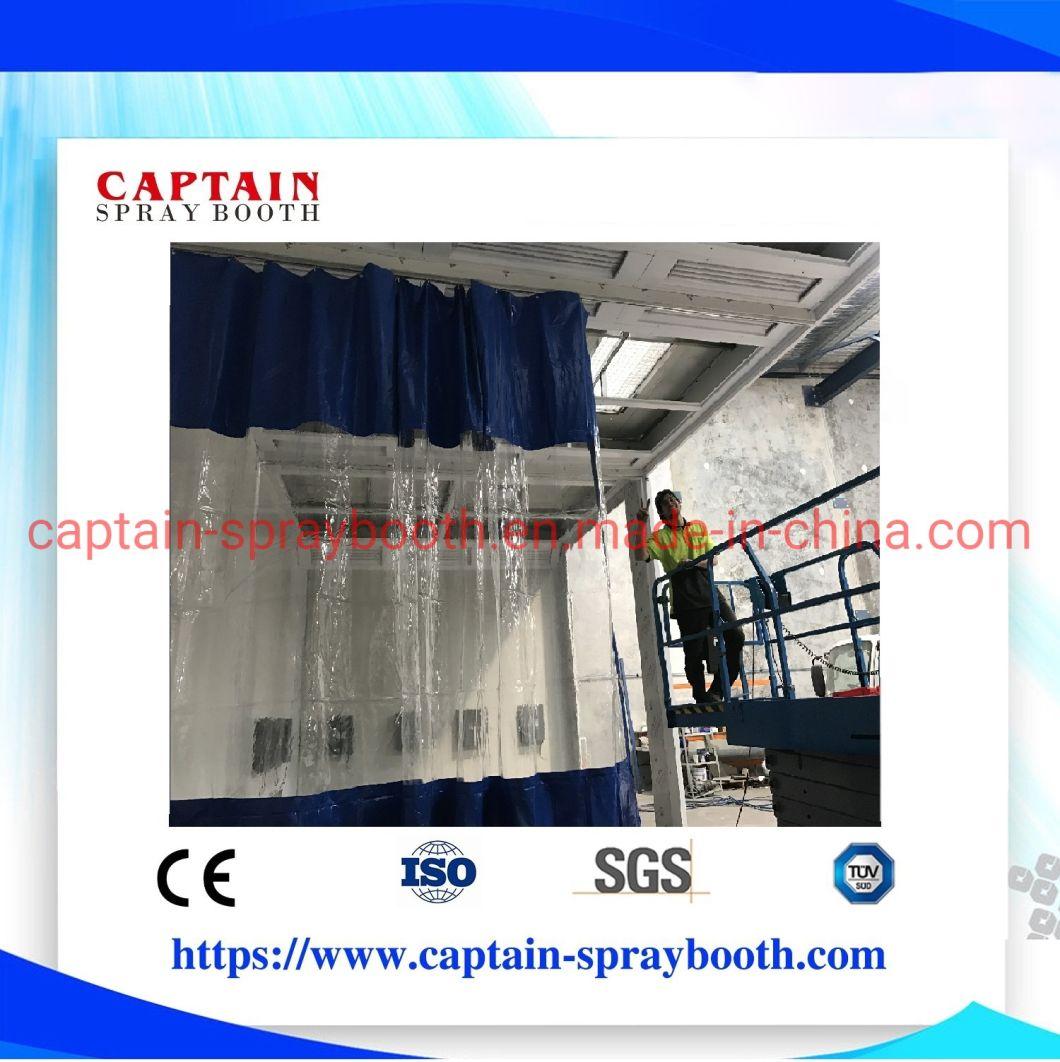

Seal Type	3 sides set with 50mm EPS heat preservation panel, with 8 pcs sight glass on the panel;  or 3 sides with PVC curtain , color: upper part: white, middle part:transparent lower part: blue

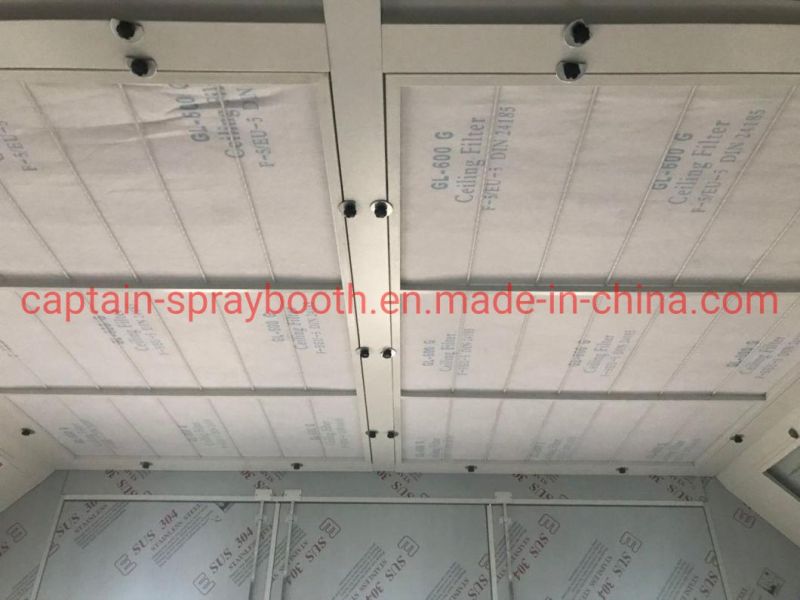

Filtering System	Pre-filter pocket,Ceiling filter,Floor filter(fibreglass).
Lighting System	8units x 4pcs=32pcs36W
Control System	Control the operation of fan, lighting and electric damper.
Voltage frequency	As request
Total Power	9KW

Custimized model combination with spray booth or mixng room :



Materials and production :







Installation:

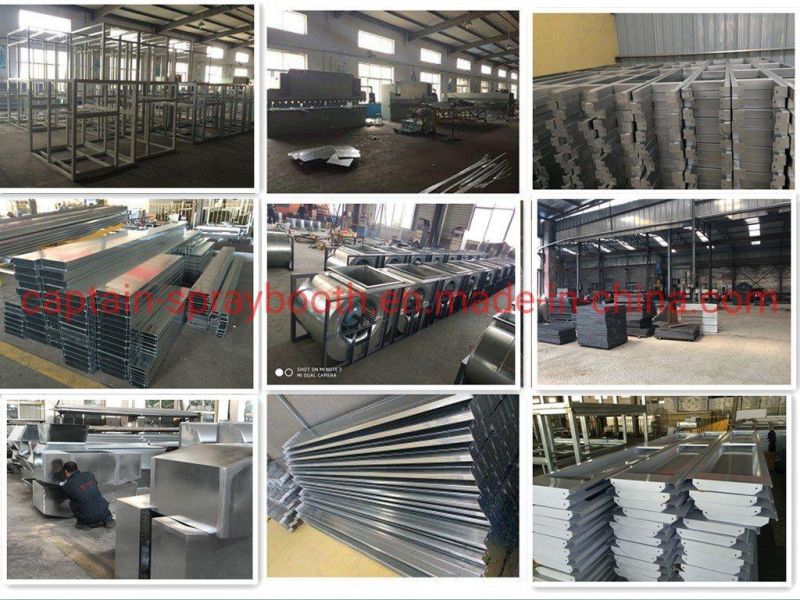

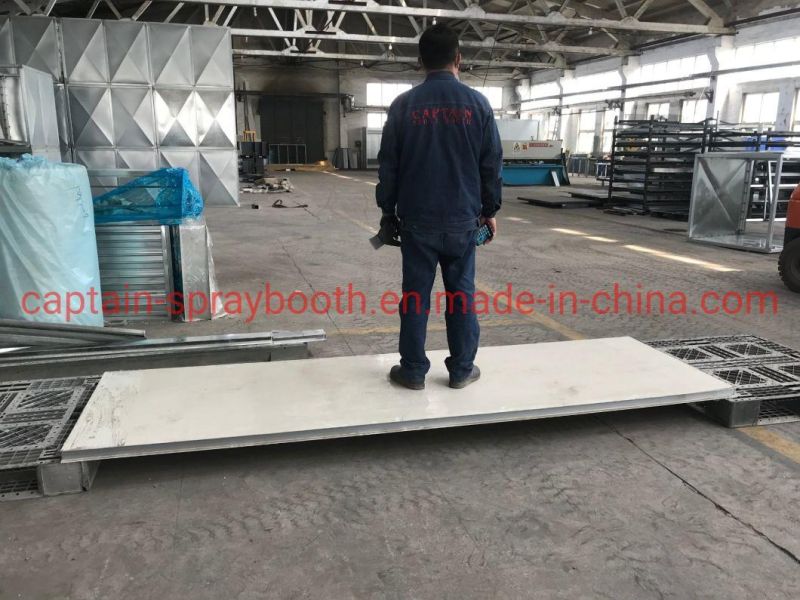

Our workshop:



Standard Prep Stations optional

l Semi-Downdraft or Pit-Style Downdraft or Full Downdraft

l With or without overhead plenum

l With or without heater & intake system

l Free-standing with structural steel support or suspended from the shop ceiling

Optional

l Cupboards in the rear of Prep Stations to store painting materials and equipments

l Roll-Up Curtains(motorized controls/manual operation)

Other features

l Overspray and dust control by 95% filter efficiency

  BELIMO damper and RIELLO burner

l Main electric components are CE listed

l All hardware, fasteners, sealants

l 24 months warranty

l Delivery time of standard prep station can reach 10 business days

l Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
