• Production Capacity：500

Basic Info.

Production Capacity 500

Product Description

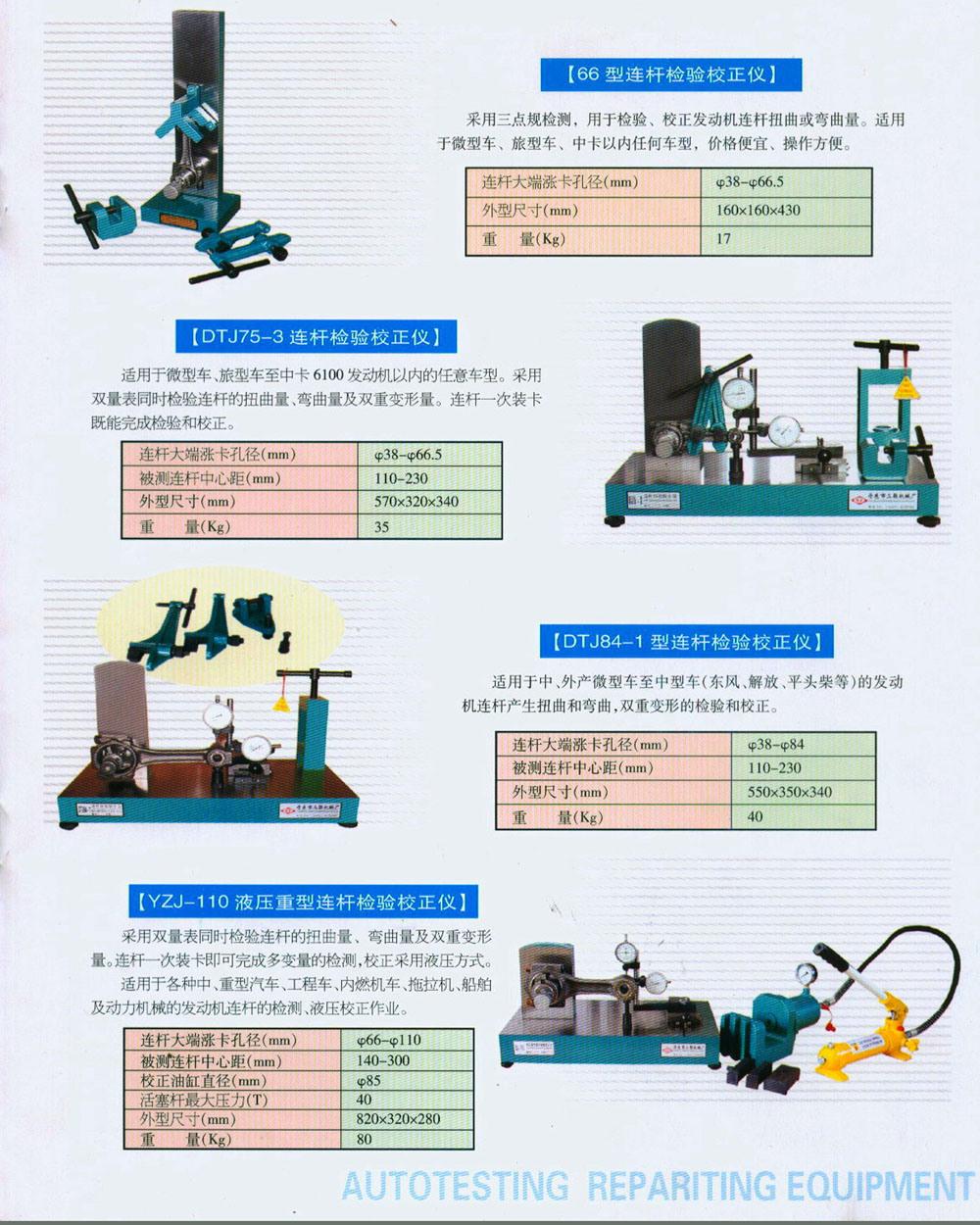

The device is applicable to different testing and correct operations under hydraulic pressure for various types of medium-and heavy duty cars, engineering vehicles, diesel locomotives, tractors, shipping with engine connecting rod of the large aperture diameter: Φ66-110mm,the core-distance between both apertures: 140-300mm.

 main technical parameters
1. Large end aperture caliper diameter of the connecting rod  Φ66-110mm
2. Height between the worktable surface and the center of the mandrel 550×320×275 mm
3. The core-distance of the tested connecting rods  140-300mm
4. Max.pressure intensity of cylinder   ≤15MPa
5. Operating stroke under hydraulic pressure   ≤40mm
6. Max.pressure of the piston rod  40T
7. Weight  80Kg
