Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
Lin Yi Ben Ben International Trade Co., Ltd.- Warranty：1 Year
- Part：Air Spring
- Type：Gas-Filled
- Spring Type：Air Spring
- Spring Material：Rubber
- Structure：Triple Convoluted
Base Info
- Model NO.：3B5180
- Damping Force Direction：Bidirectional
- Condition：Brand-New
- Service：Sample and OEM
- Gas Hole：1,2NPT
- Screw Tooth：3,8-16unc
- Transport Package：Strong Carton Box or as Customers Need
- Trademark：GUOMAT
- Origin：Guangzhou
- HS Code：8708809000
- Production Capacity：5000PCS,Month
Description
Package
(1) Bubble Bag And Brown Carton
(2) Customer Require Packaging
(3) Normal Exported Package
(2) Follow Up The Customers' Feedback
About Product Technical Data
Top Cover Plate Diameter:132mm
Bottom Cover Diameter:132mm

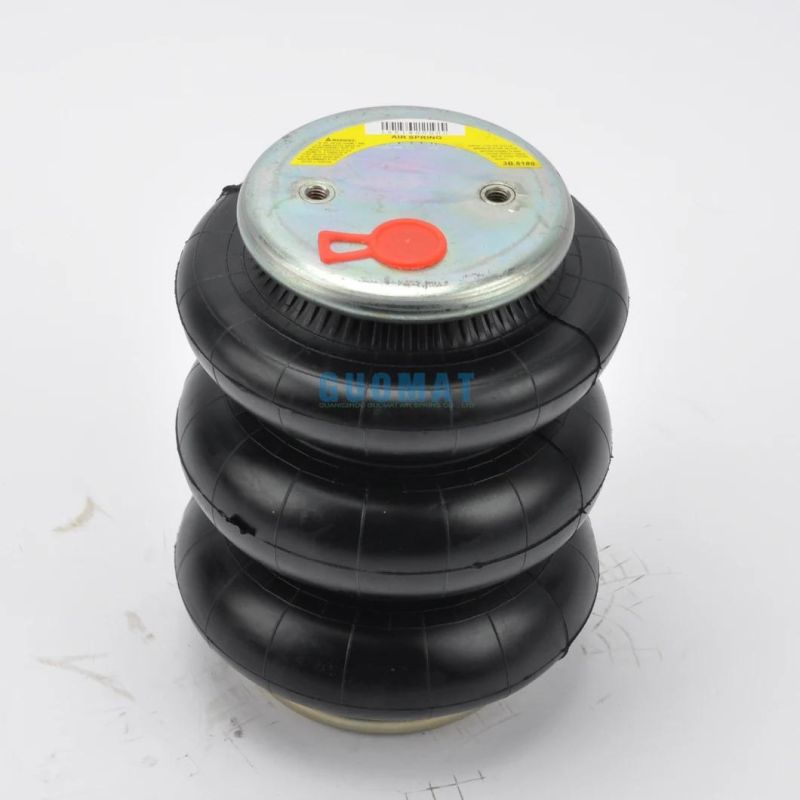

Screw Center Distance of Top Cover Plate:70mm
Screw and Air Inlet Distance of Top Cover Plate:33mm
Top Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

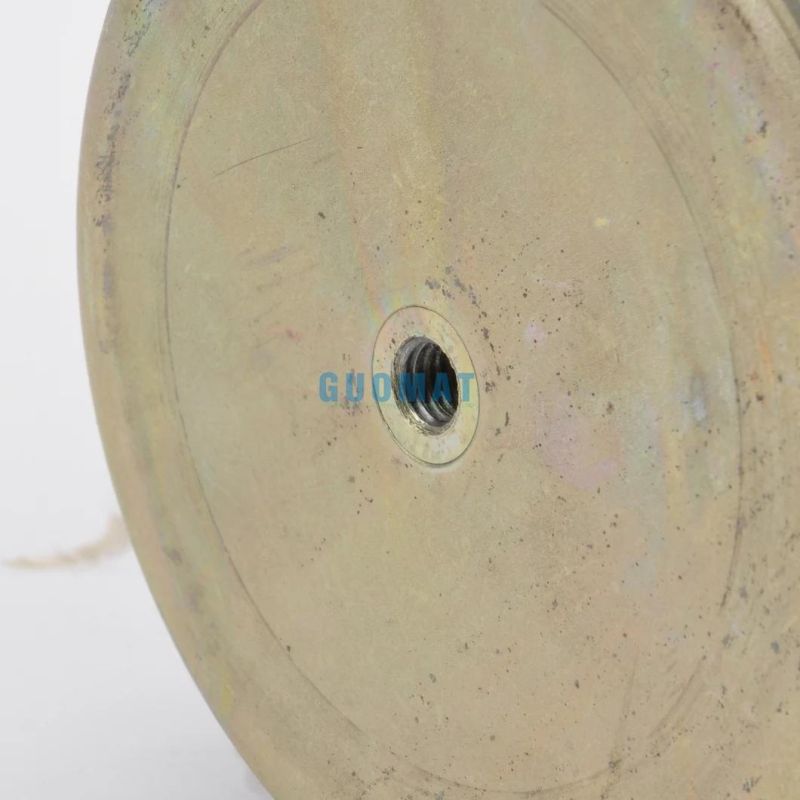

Bottom Cover Plate Screw(Nut)Tooth:3/8-16UNC
Gas Hole/Air inlet:1/2NPT
About Air Spring
Air springs can reduce your costs and increase your profits. Last at least twice, and as much as four times longer than steel springs Require little or no maintenance Increase life of tires and brake linings Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train Let you haul anything; eliminate expensive deadheading runs Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty Allow perfect load equalization between axles; let you run at the maximum legal limit Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging Pay you back at trade-in time; trucks and trailers with air suspensions are worth more 100% of all air spring assemblies are pressure tested before they leave Fire-stones factory. Fire-stone is the original designer of composite pistons. Fire-stone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. Air Spring Components Inside the World's No. 1 Air Spring: Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.
1) Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.
2) Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.
3) Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
4) Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.
5) Bead Plate - Crimped onto the bellows at the factory for a more durable design.

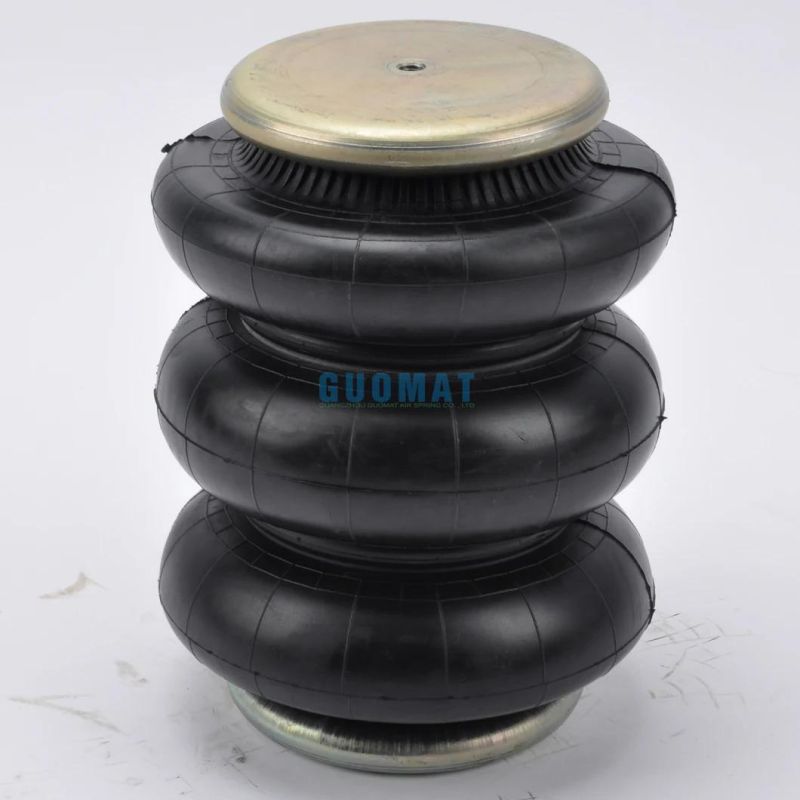

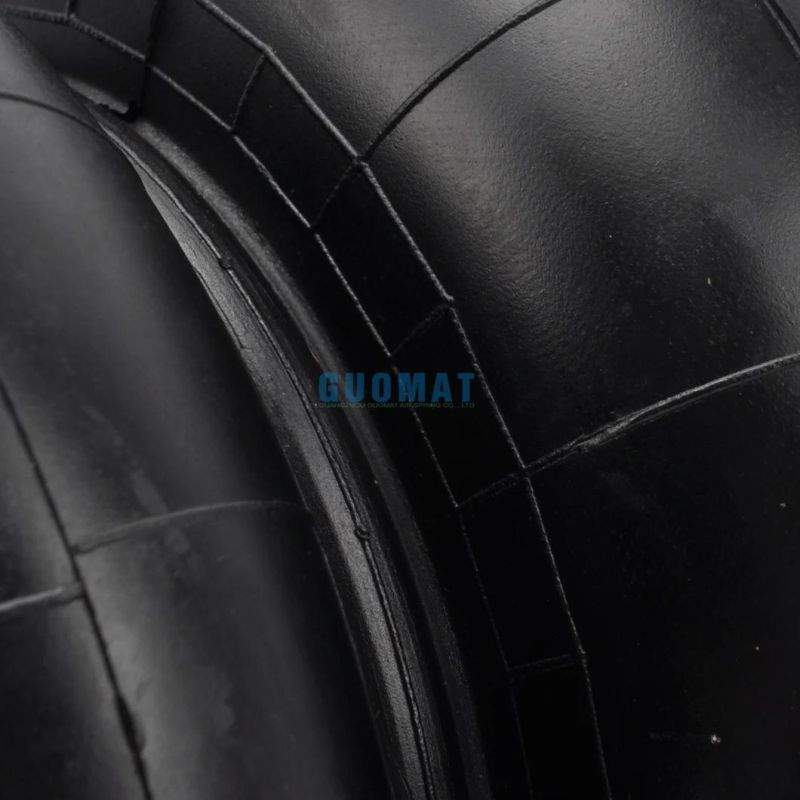

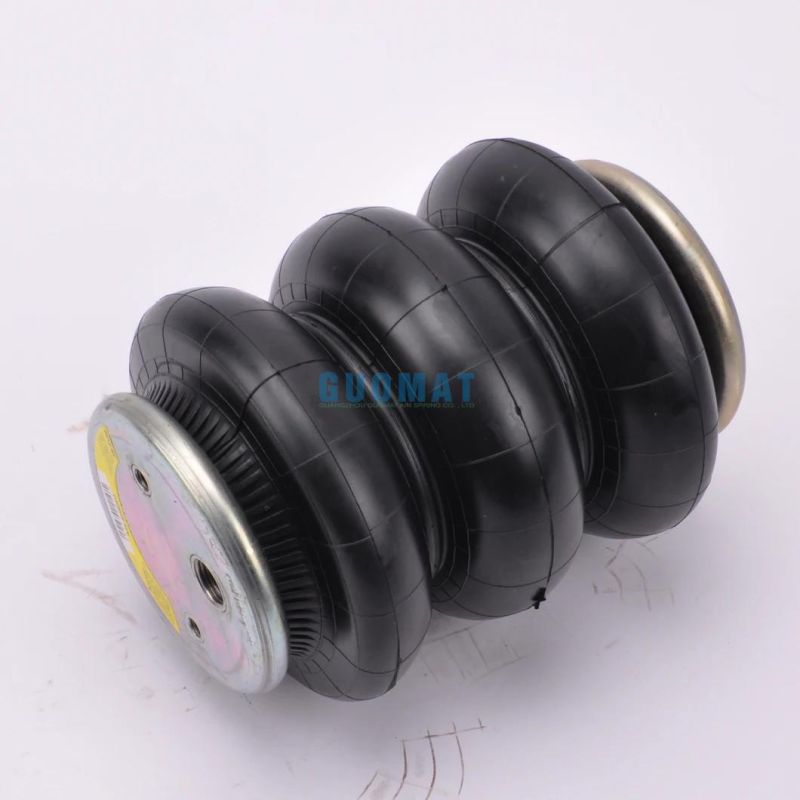

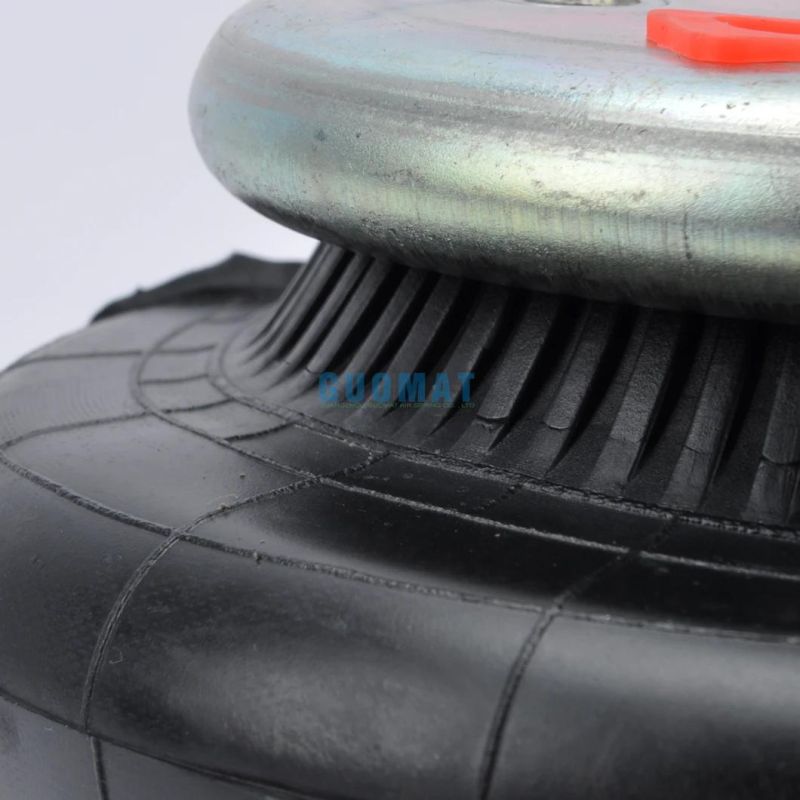

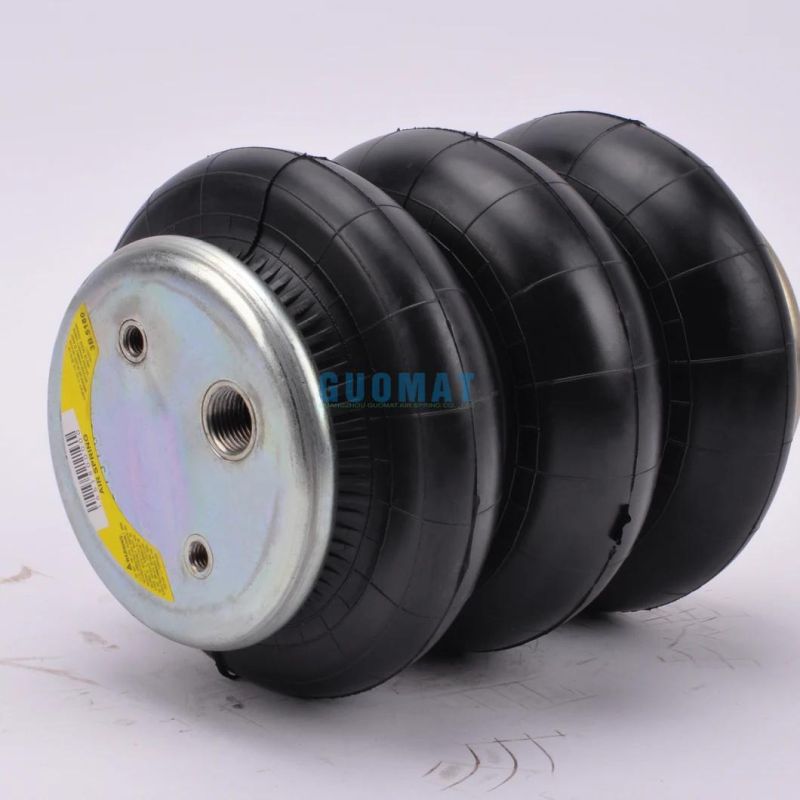

Product Picture
