Esavior 614.40wh Batteries Capacity 80W Solar Street Lights Solar Lights Outdoor Lighting
Hangzhou Tianye Packaging Technology Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum Alloy
- Light Type：Solar
- Color Temperature：Cool White 6000~6500K
- Power：80W
- Technics：Electroplating
Base Info
- Model NO.：ISSL-SPR-080C-220215H
- Illumination Time：>8 Hours
- Cell Type：LiFePO4 Lithium
- Charging Time (H)：6 Hours
- Usage：Garden, Street, Highway
- IP Rating：IP66
- Certification：CE, RoHS, SGS
- Voltage：12,24V
- With Light Source：With Light Source
- Transport Package：Customary Carton, OEM Acceptable
- Specification：1520*355*60mm
- Trademark：ESAVIOR , ODM
- Origin：China (Mainland)
- HS Code：9405409000
- Production Capacity：50, 000 Sets,Year
Description
SUPERIOR (SILVER) SeriesMODEL NO. ISSL-SPR-080C Solar Panel Power 36V/100Wp (Monocrystalline PV) Life-span 25 years Batteries Capacity/Type 25.6V/24AH (614.40WH) / LiFePO4 Lithium Life-span 8+ years (2,000 circles) Controller Type MPPT / Waterproof class: IP68 Sensor Microwave Radar (PIR & Timing as optional ) LED Light Source Rated Power 24V/ 80W (20Wx4 modules) LED Brand (LED Lumen 195lm/W) Lumens(LM) 8000-9600lm Life-span 60,000 hours Viewing Angle 140° Full Charge Time By Solar 6 hours Discharge Time Bright Mode >8 hours Dim Mode >40 hours Working Temp. -30ºC~+80ºC Color Temp. Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available) Mounting Height 10~12m Space Between Lights 40~45m Materials aluminium alloy Certificate CE / ROHS / IP66 / TUV-SUD / SGS / ISO9001 Warranty 3 years Packing & Weight Product Size 1520*355*60mm Net Weight 30.0kg (Light:26kg,bracket:4kg) Carton Type Customary Carton/ OEM Acceptable Carton size 1540*400*200mm Qty/ctn 2 lights in 1CTN/ 2 brackets in 1CTN GW. per Carton 53.0kgs +9.0kgs PCS per Container 20' GP 280 40' GP 650

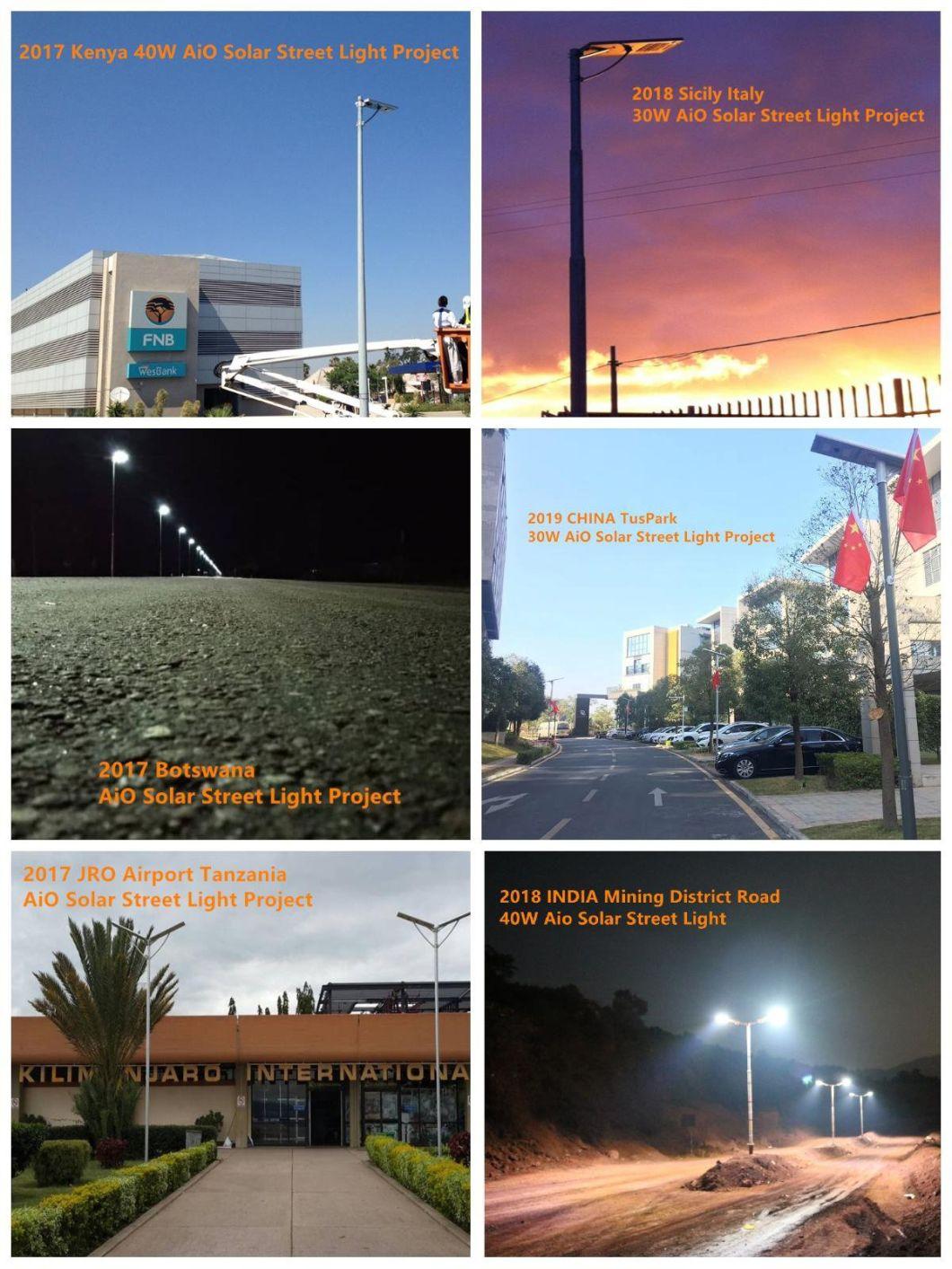

PROJECTS SHOW
WHY ESAVIOR?
1. 10 years' experience in with global successful project reference on the Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
CERTIFICATES SHOW

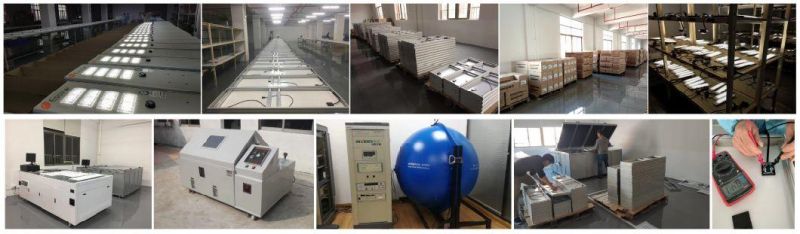

WORKSHOP SHOW
OVERSEAS EXHIBITION
SOLAR STREET LIGHT RFQ:
Q1:Does the lamp light on automatically?
A:Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2:Can I order samples for solar street light?
A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).
Q4:Do you offer guarantee for the products?
A:Yes, we offer 3-5 years warranty to our products.
Q5:Can the lamp be used in strong wind environment?
A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q6:What's the difference between Motion sensor and PIR sensor?
A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Thank you for your attention! Welcome to send us inquiry for more information!
