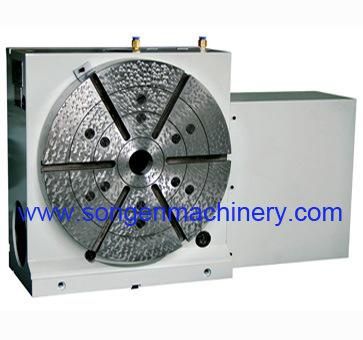

Table Diameter 160-630mm, Nc Controlled Vertical Rotary Tables,
Guangzhou Baiyun District Fengxin Plastic Products Factory- Certification：ISO9001:2000, CE, ISO 9001:2008, GS
- Material：Metal
- Type：CNC Controlled
- Logo Printing：with Logo Printing
- Size：Middle
- Customized：Customized
Base Info
- Model NO.：NCRT160E, etc.
- Transport Package：Plywood Case
- Specification：Table diameter 160-630mm
- Trademark：Songen
- Origin：China
- HS Code：84663000
- Production Capacity：1000 Sets,Year
Description
ParameterNCRT160E NCRT200E NCRT250E NCRT315E NCRT400E NCRT500E NCRT630E 1 Turntable diameter, mm 160 210 250 315 400 500 630 2 Center height, mm 135 140 160 210 260 310 400 3 Total thickness, mm 170 180 190 210 250 300 350 4 Center bore diameter, mm 20H6X18 25H6X20 30H6X22 40H6X25 50H6X20 60H6X25 70H6X28 5 Locating key size, mm 14 14 18 18 18 22 22 6 T-slot size, mm 4-12 4-12 6-12 6-14 6-14 6-18 6-18 7 Worm gear ratio 1:80 1:90 1:90 1:90 1:120 1:150 1:120 8 Total reduction ratio 1:90 1:90 1:180 1:180 1:180 1:180 1:180 9 Max. speed, RPM 16.6 16.6 11.1 11.1 11.1 11.1 11.1 10 Table graduation angle per pulse, Deg 0.001 0.001 0.001 0.001 0.001 0.001 0.001 11 Sevo motor (optional) Output power, KW ≥ 0.9 ≥ 0.9 ≥ 0.8 ≥ 0.8 ≥ 1.1 ≥ 1.4 ≥ 1.4 Torque, N.m ≥ 3 ≥ 3 ≥ 5 ≥ 5 ≥ 10 ≥ 12 ≥ 12 12 Standard motor connection port Fanuc a3 Fanuc a3 Fanuc a6 Fanuc a6 Fanuc a12 Fanuc a12 Fanuc a12 13 Dividing accuracy, Sec 40 30 30 25 20 20 20 14 Repeatability accuracy, Sec 8 8 6 6 6 6 4 15 Clamping torque Oil 1.5MPa 300 450 1000 1800 2000 2800 4000 Air 0.5MPa 110 150 300 500 650 800 800 16 Horizontal loading capacity, Kgf 200 200 300 350 500 600 800 17 Vertical loading capacity, Kgf 75 75 150 150 250 300 400 18 Max. interia of vertical, Kg.cm.s2 15 15 16.4 55.4 55.4 100 200 19 Max. torque capacity, N.m 90 90 300 700 1200 1700 3000 20 Net weight, Kgs 55 75 110 200 325 650 1125
