High Precision Worm Gear Speed Reducer Gearbox for Lifting Machinery
Shinylink (Shanghai) Industrial Inc.- Application：Machinery, Agricultural Machinery, Industry
- Function：Change Drive Torque, Speed Changing, Speed Reduction
- Layout：Right Angle
- Hardness：Hardened
- Installation：Torque Arm Type
- Step：Double-Step
Base Info
- Model NO.：worm gear reducer
- Type：Worm and Wormwheel
- Rated Power：0.09kw-11kw
- Rated Torque：1.7kw~1760kw
- Housing：Aluminum and Casting Iron
- Color：Blue Ral 5010 or Grey
- Material：Cast Iron
- Manipulate Way：Forced Manipulation
- Manufacturing Method：Cast Gear
- Toothed Portion Shape：Curved Gear
- Changes Way：Stepped
- Transport Package：Wooden Case,Carton,Pallet
- Specification：ISO, CE, SGS
- Trademark：Akoman
- Origin：China
- HS Code：8483409000
- Production Capacity：50000PCS,Year
Description
When working, great load capacity, stable running, low noise with high efficiency. Gear Box's Usage Field1Metallurgy 11Agitator 2Mine 12Rotary weeder 3Machine 13Metallurgy 4Energy 14Compressor5Transmission 15Petroleum industry6Water Conserbancy 16Air Compressor7Tomacco 17Crusher 8Medical 18Materials9Packing 19Electronics 10Chemical industry 20Textile indutry... ... Power0.06kw0.09kw0.12kw0.18kw0.25kw0.37kw0.55kw0.75kw1.1kw1.5kw2.2kw3kw4kw5.5kw7.5kw11kw15kw Torque2.6N.m-3000N.mRatio7.5-100, the double gearbox is moreColorBlue, Silver or as customers' needMaterialIron or AluminiumPackingCarton with Plywood Case or as clients' requirementTypeRV025RV030RV040RV050RV063RV075RV090Weight0.7kg1.3kg2.3kg3.5kg6.2kg9kg13kgTypeRV110RV130RV150 Weight35kg60kg84kg Mounting MethodsFoot Installation Flange InstallationFor various mortor or double input/output shafts can be equipped

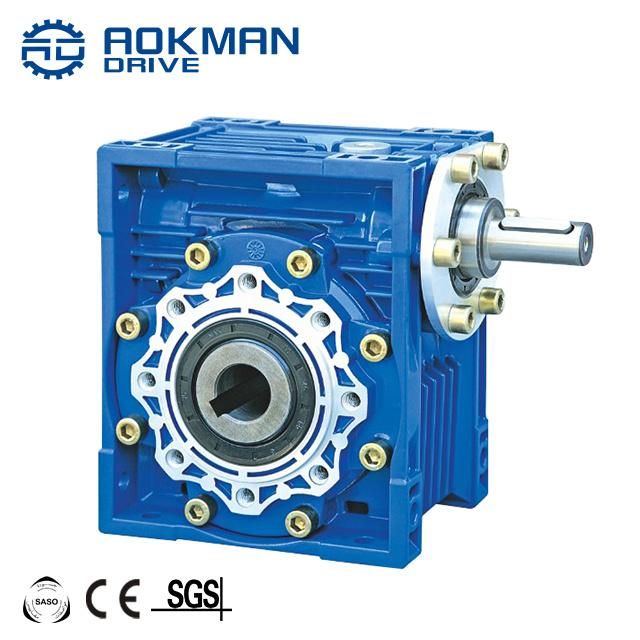

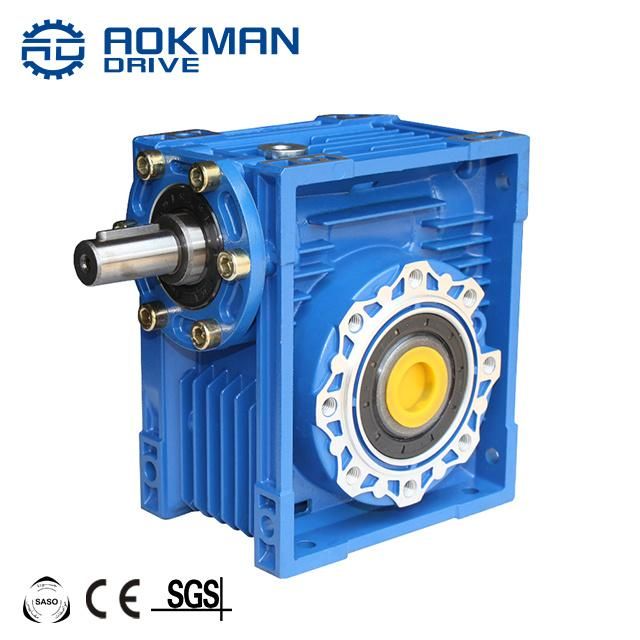

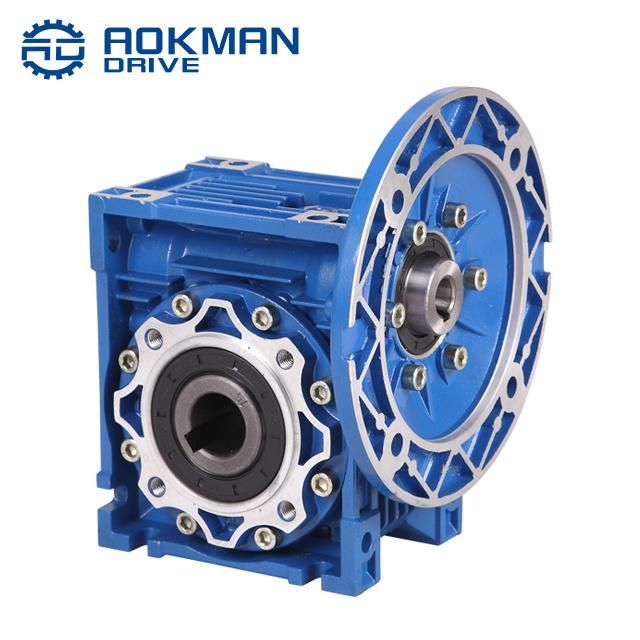

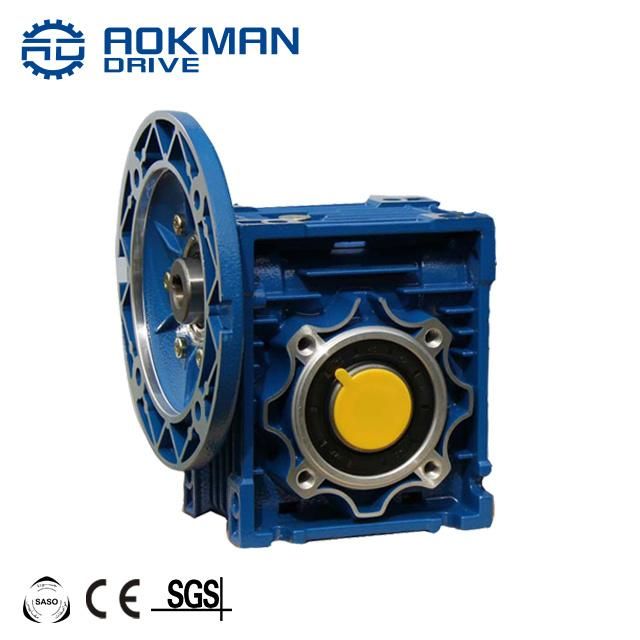

Product picture:

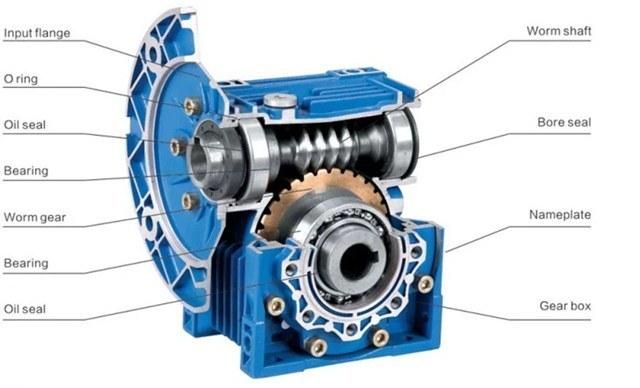

Structure:

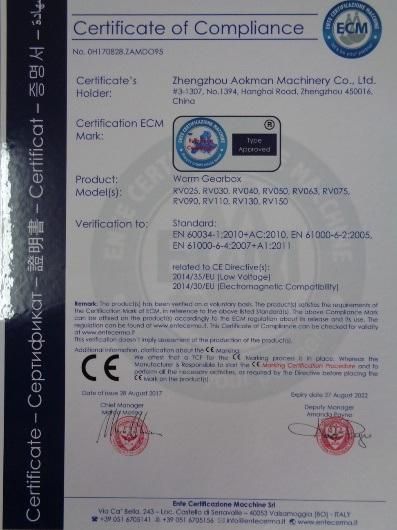

Certificate:

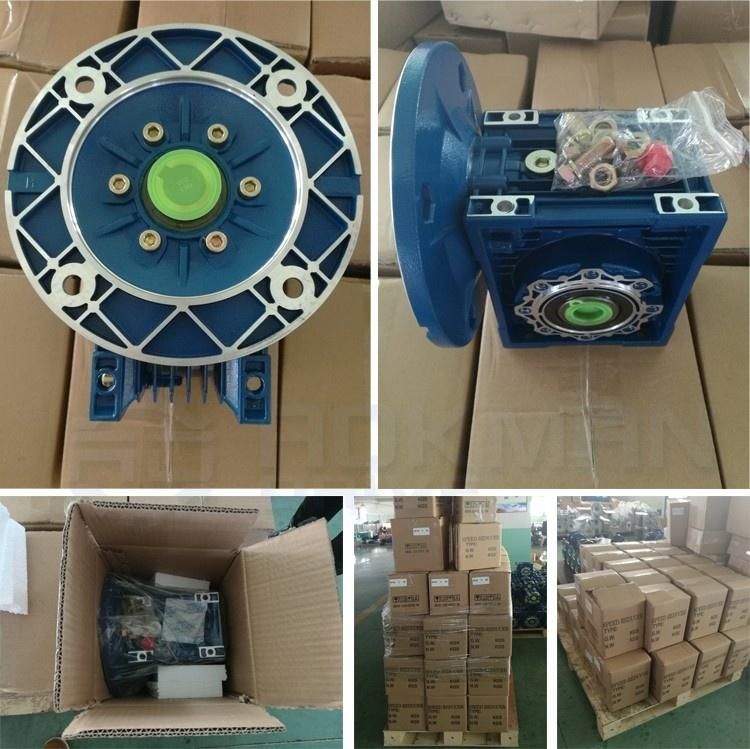

Packing & Delivery:

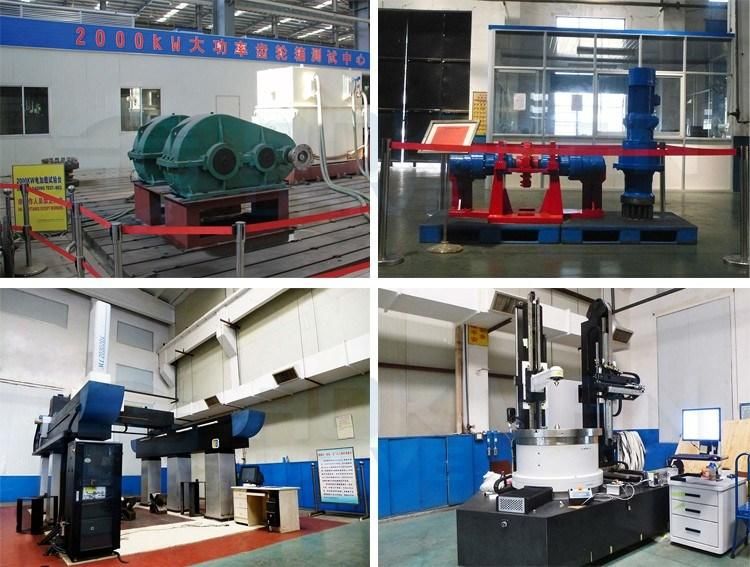

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
Customer visiting:
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
Welcome you contace me if you are interested in our product.
Our team will support any need you might have.
