• Model NO.：LW-RI 4
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Mall
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• DOT Pitch：4mm
• LED Type：SMD2020
• Viewing Angle：H 160°, V 160°
• Cabinet Material：Die Casting Aluminum
• Average.Power(W / M2)：400 W,M2
• IP Grade：IP31
• Lifetime(H)：up 50000 H
• Module Size(mm)：256X128mm
• Cabinet Size(mm)：512mmx512mmx80mm
• Compliantstandard：CCC, Ce, UL, RoHS etc.
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：UL, CCC, CE, RoHS, FCC, CCC
• Trademark：LED World, ODM, OEM
• Origin：Shenzhen City, Guangdong Province, China
• HS Code：8528591090
• Production Capacity：10000sqm,Month

ItemsP2.5mmP3mmP4mmP5mmP6mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1Pixel Pitch2.5mm3mm4mm5mm6mm10mmPixel Density160,000111,11162,50040,00027,77710,000Module Size(mm)160x160192x192or 192x96256x128160x160or 320x160192x192 or 384x192320x160Pixels/Module64x6464x64or 64x3264x3232x32or 64x3232x32or 64x3232x16Cabinet Size(mm)960x960960x9601024x1024960x960960x960960x960Pixels/Cabinet384x384320x320256x256192x192160x16096x96Cabinet Weight37KG37KG42KG37KG37KG37KGBrightness1300cd/1300cd/1300cd/1300cd/1300cd/1000cd/Viewing Distance>2.5m>3m>4m>5m>6m>10mPower Consumption Max: 800Max: 800Max: 650Max: 400Max: 400Max: 300(W/)Ave: 240Ave: 240Ave: 195Ave: 120Ave: 120Ave: 100Driver Mode1/32 scan1/16 scan1/16 scan1/16 scan1/16 scan1/8 scanCabinet MaterialCold Rolled SteelRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +40ºCOperating Humidity10% - 90%Viewing AngleH: 120°; V: 120°Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingIP20Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Temperaturestorage:-35ºC~+85ºCworking:-20ºC~+50ºCHumidity10%-95%Greyscale/colors256levels of each color(RGB)/16.7M colorsScreen Lifespan≥100,000 hoursScreen Plainness<±1mmBlind Spot Rate<0.0001CPUPentium4 or above Operation systemWIN98/2000/NT/XPControl methodSynchronization

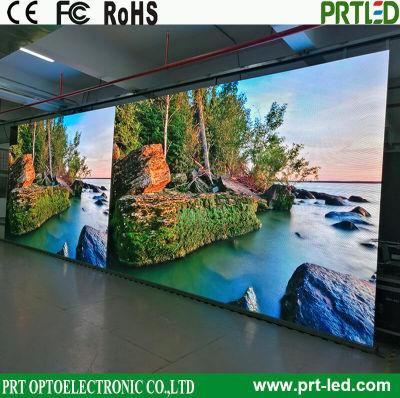

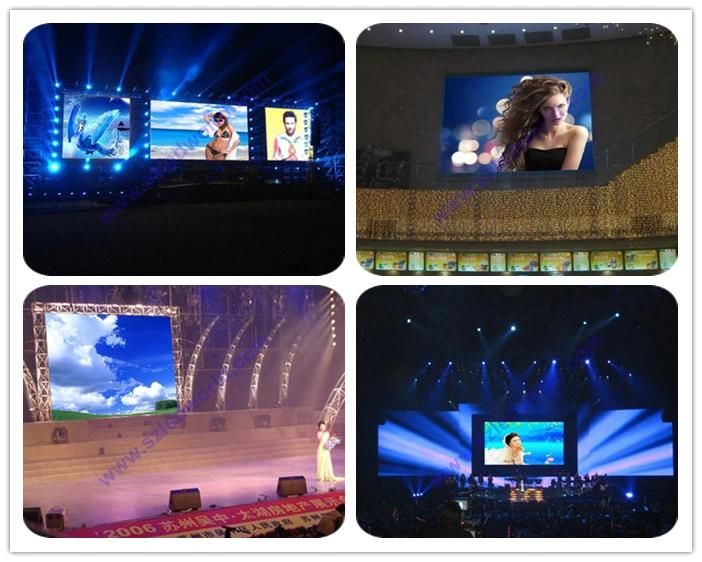

Project case:

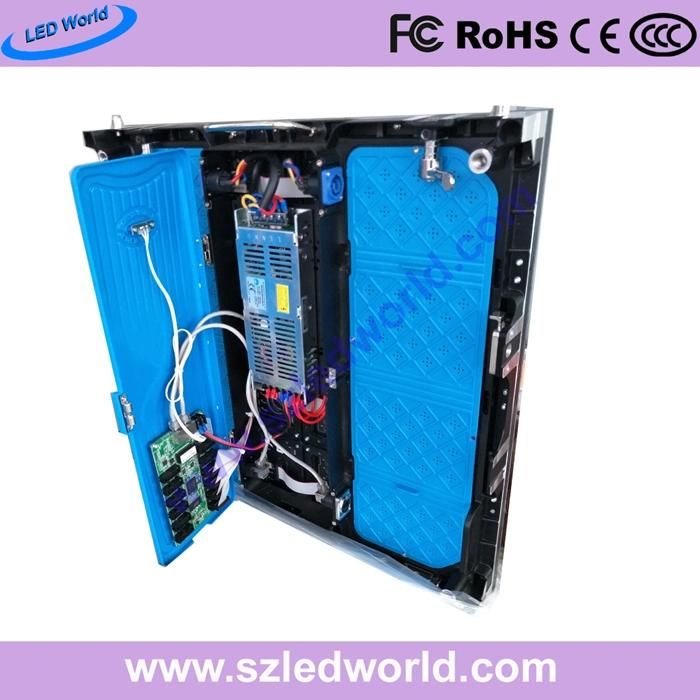

product detail:

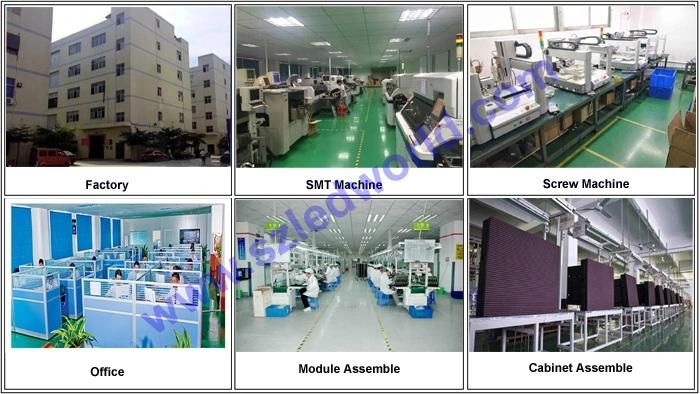

Factory:

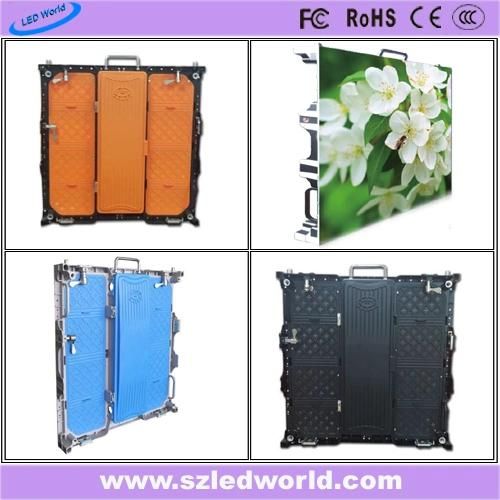

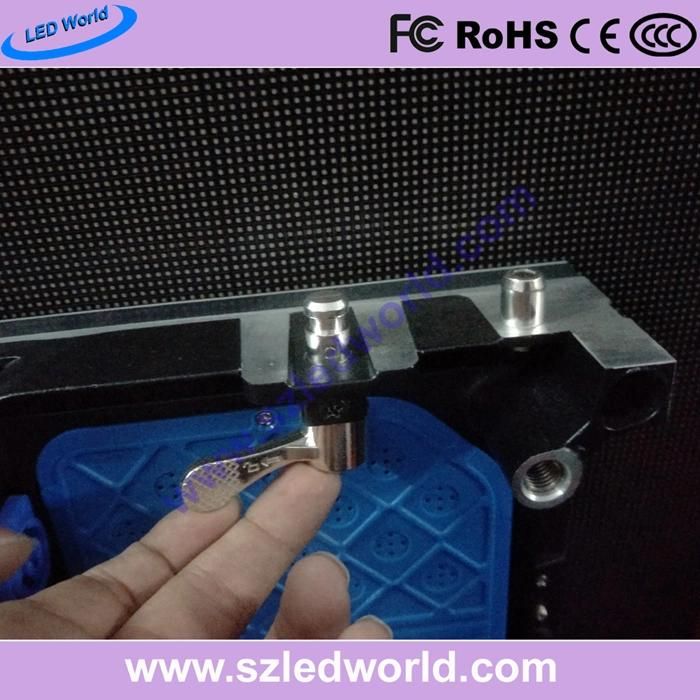

Product detail:

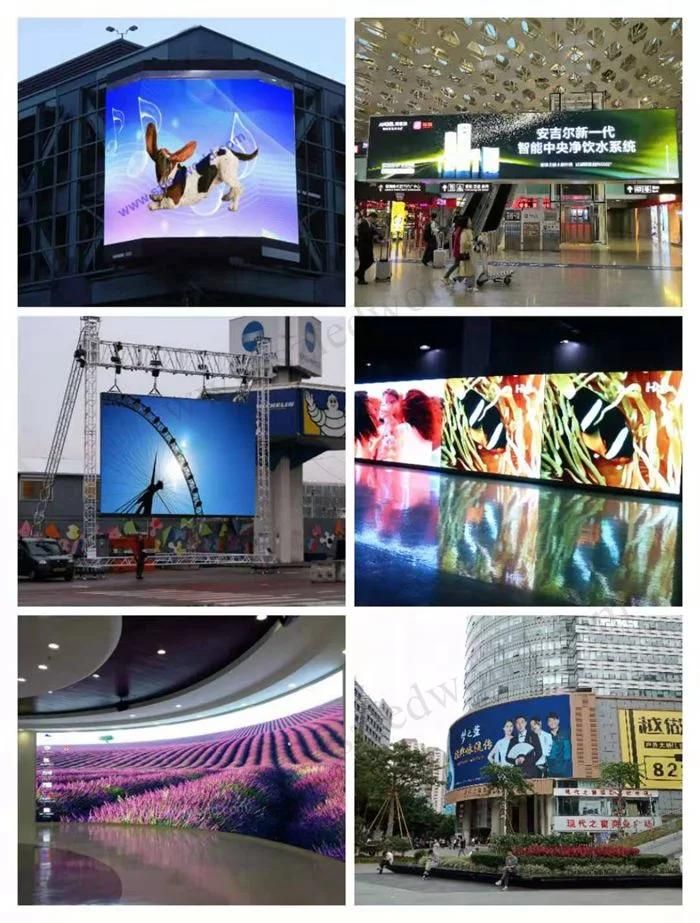

Applications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security companies, insurance companies, post offices, hospitals, schools, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and SMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens, reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargo?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit       (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use a veneer case, usually 4 cabinets in 1 veneer case;
For the rental market, we suggest you use a flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising players and kinds of video processor.

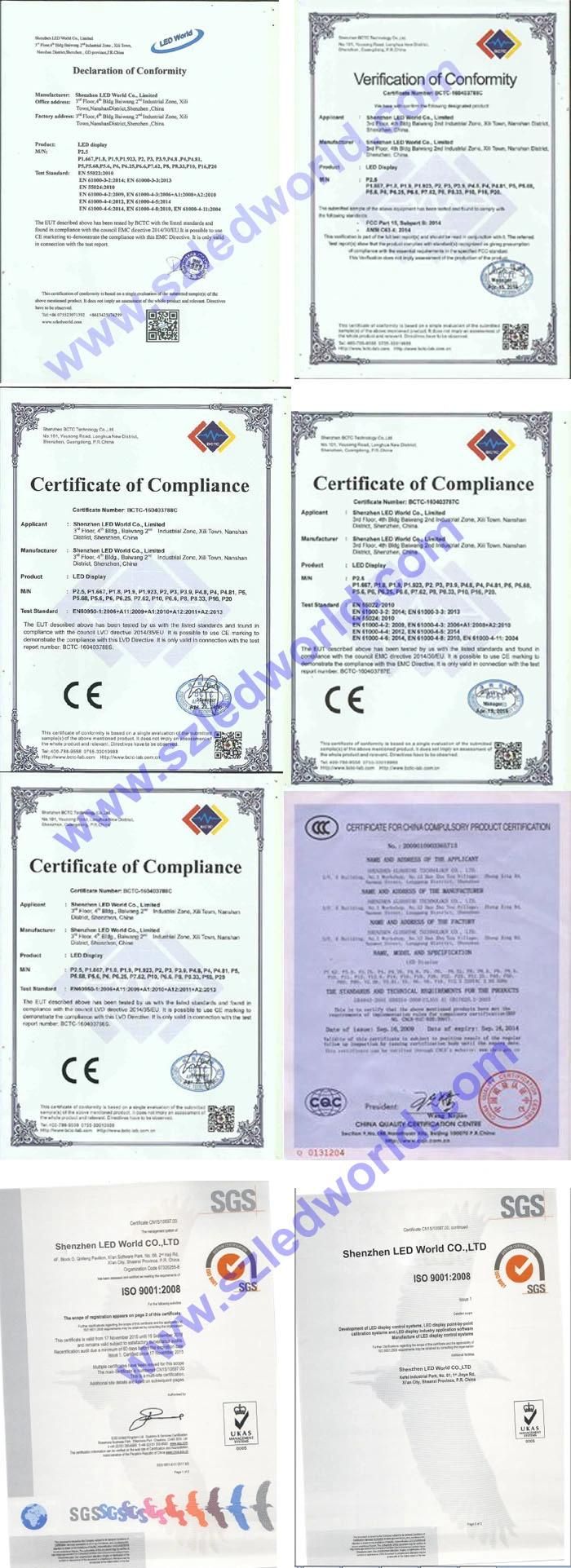

Certification:
